Precision drilling-milling machine OPTImill MB 4

€3.762,57 EUR (€3.059,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3338451 Barcode: 4030635038860

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Only 2 in stock!
Description Features Delivery contents Shipping

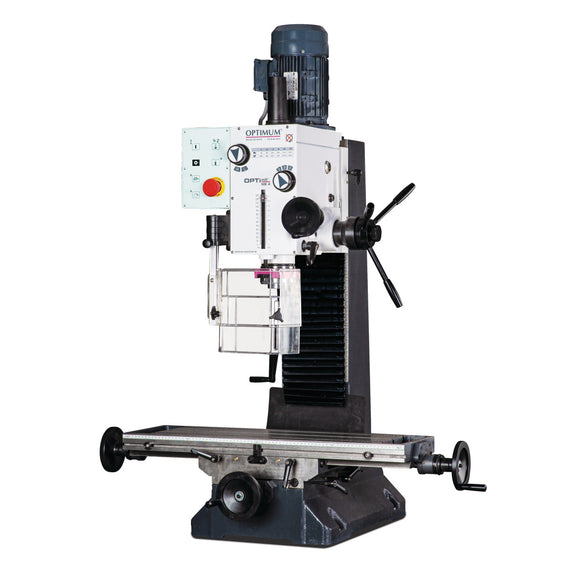

Precision drilling-milling machine OPTImill MB 4.
  • Heavy, solid
  • cast
  • designQuality industrial electric motorHighly
  • smooth running thanks to ground gear wheels running in an oil
  • bathRight/left
  • rotationMassive
  • and generously dimensioned cross table, with T-slots and adjustable gibsDrilling
  • depth
  • stopManual

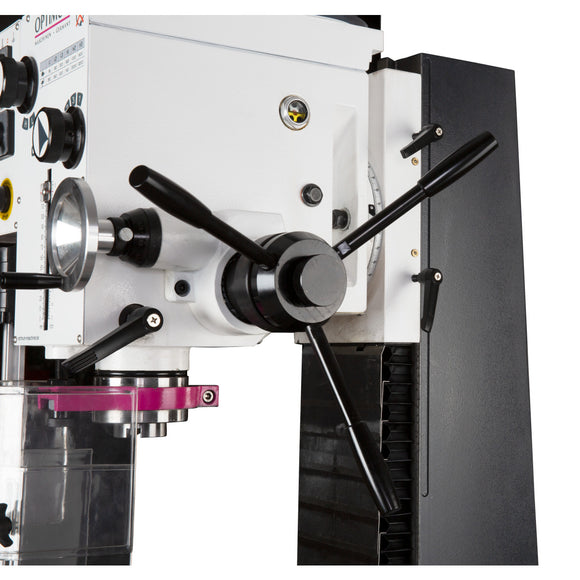

  • spindle sleeve feed with fine
  • feedAdjustable and readjustable feed spindle playOperator-friendly

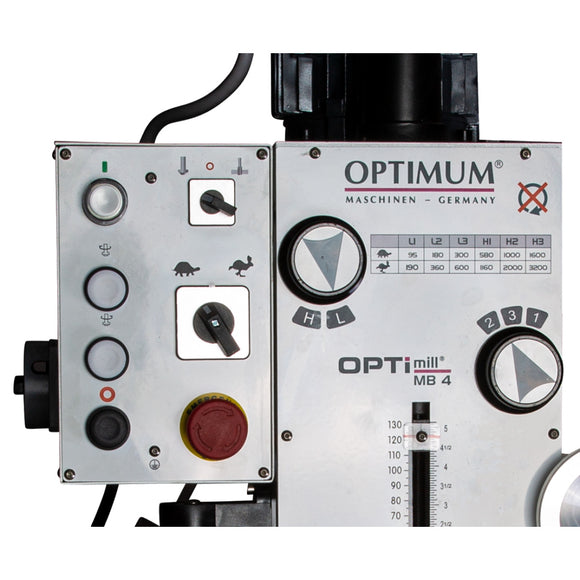

  • control panel with emergency stop switchColumn
  • with hand-scraped dovetail guideHeight-adjustable
  • , large protective screen with microswitch
  • Wide speed range from 60 - 3.
  • Continuous drilling performance (steel) 28 mm
  • Drilling performance (steel) 32 mm
  • Frequency 50 Hz

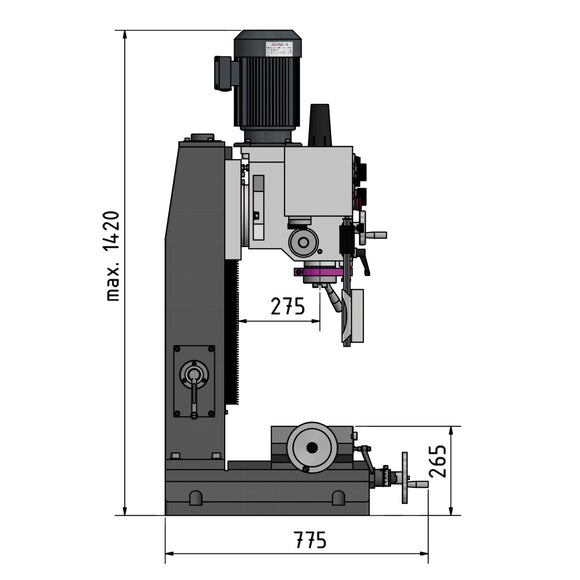

  • Height 1420 mm

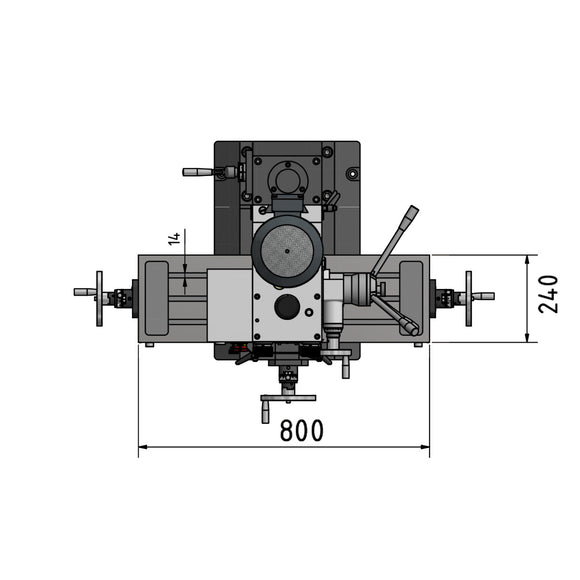

  • Horizontal milling table length 800 mm
  • Horizontal milling table max. load bearing capacity 80 kg
  • Horizontal milling table width 240 mm

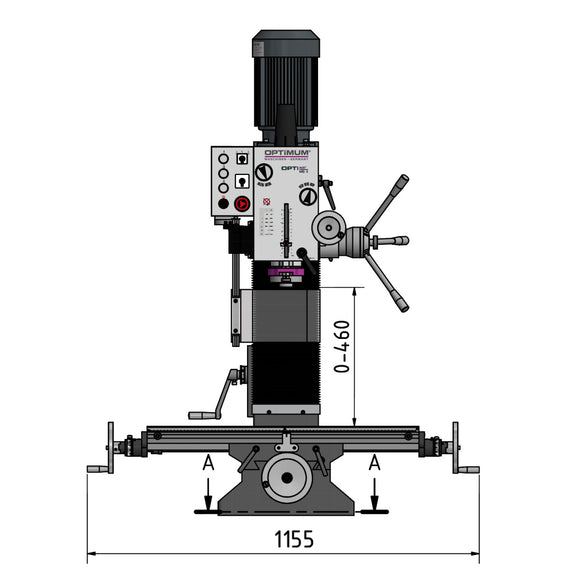

  • Length 1155 mm
  • Max. size milling head 63 mm
  • Max. size shaft milling cutter 28 mm
  • Net weight 320 kg
  • Supply voltage 400 V
  • Vertical spindle drive motor output normal operation 1,1 / 1,5 kW
  • Vertical spindle quill diameter 75 mm
  • Vertical spindle quill stroke 120 mm
  • Vertical spindle reach 275 mm
  • Vertical spindle speed range 95 – 3200 min¯¹
  • Vertical spindle spindle chuck MT 4
  • Vertical spindle tightening bar M16
  • Width 775 mm
  • X-axis travel 450 mm
  • Y-axis travel 195 mm
  • Z-axis travel 430 mm
  • Adapter MK4/MK 3
  • Tightening rod M 16
  • Adapter MK4/22 mm
  • Operating tool
