Optimum OPTImill MB 4SV drilling-milling machine with servo drive

€4.858,50 EUR

Tax includedShipping calculated at checkout

SKU: 3338458 Barcode: 4030635049255

14 Day
Return Policy
Warranty
12 months
Fast
Delivery

In stock!

Contact us about this product

WhatsApp
Description Features Delivery contents Shipping

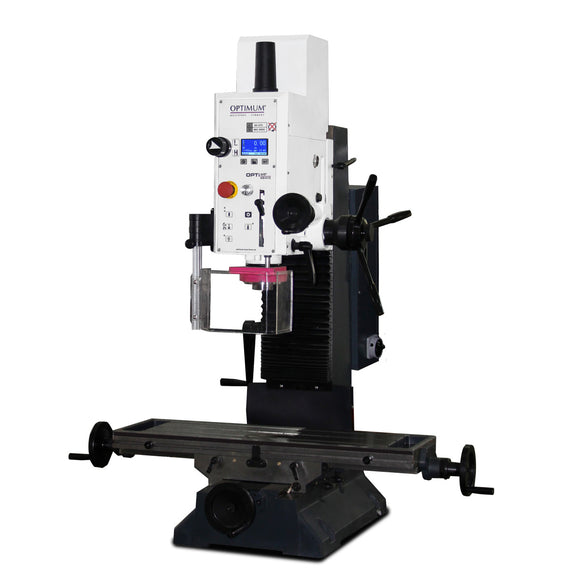

The Optimum OPTImill MB 4SV is a drilling-milling machine with a 3 kW servo drive, drilling up to 32 mm in steel and milling with end mills up to 26 mm. The 60 to 3000 min⁻¹ speed range, ±45° tiltable gear head and 800 × 240 mm cross table with 450 × 200 mm travel let you drill, mill and cut angled faces on larger workpieces in one setup, without changing machines or repositioning the part.

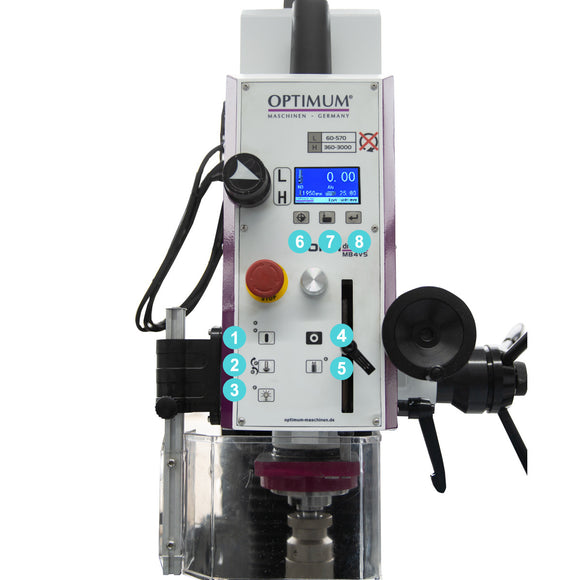

Key features

  • Quality industrial electric motor
  • Smooth running thanks to ground gears running in an oil bath
  • Wide speed range of 60 - 3000 min⁻¹
  • Clockwise/anticlockwise rotation
  • Gear head tiltable by ±45°
  • Manual quill feed with fine feed
  • Height-adjustable protective screen with microswitch

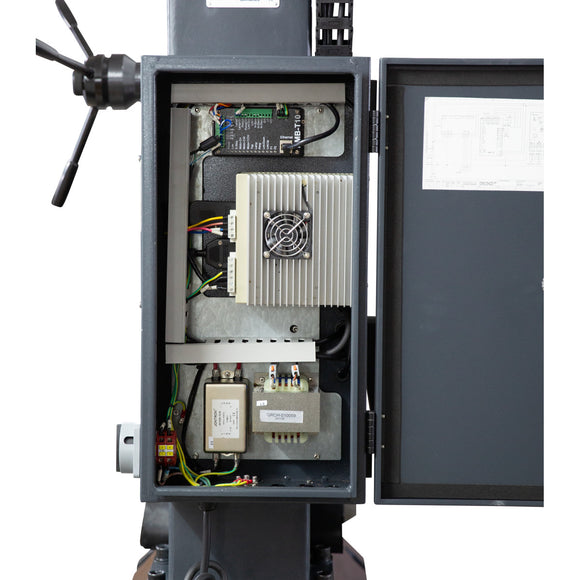

  • EMC filter
  • Mains connection

Technical specifications

Drilling and milling capacity

  • Drilling capacity in steel: 32 mm
  • Continuous drilling capacity in steel: 28 mm
  • Maximum cutter head diameter: 63 mm
  • Maximum end mill shank diameter: 26 mm

Vertical spindle

  • Speed range: 60 - 3000 min⁻¹
  • Number of gear ranges: 2
  • Drive motor power (continuous operation S1): 3 kW
  • Spindle mount: MT 4
  • Drawbar: M16
  • Quill stroke: 120 mm
  • Maximum distance spindle to column: 275 mm
  • Mill head swivel range: ±45°

Milling table and travel

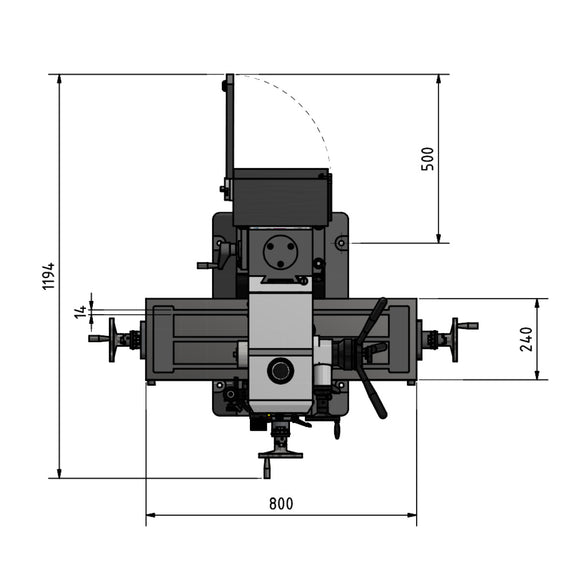

  • Table working area: 800 × 240 mm
  • X-axis travel: 450 mm
  • Y-axis travel: 200 mm

Electrical

  • Supply voltage: 230 V, 50 Hz

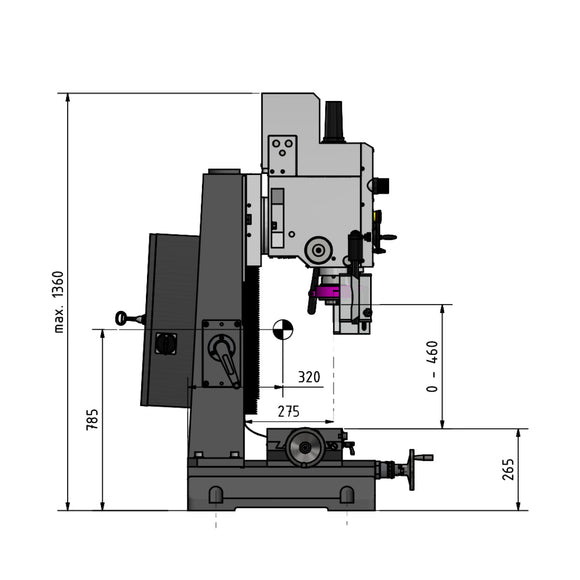

Dimensions and weight

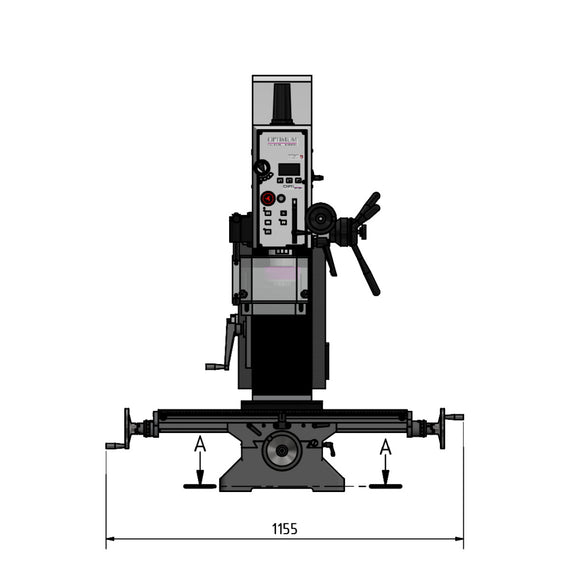

  • Length: 1155 mm
  • Width: 980 mm
  • Height: 1360 mm
  • Net weight: 320 kg
  • Adapter MK4/MK 3
  • Tightening rod M 16
  • Adapter MK4/22 mm
  • Operating tool

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

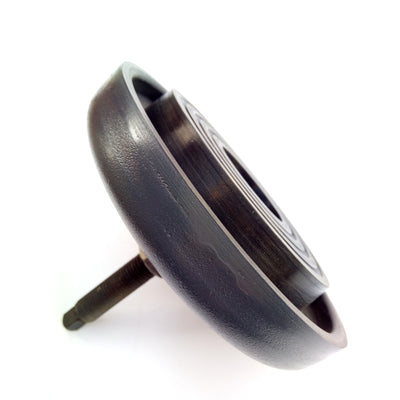

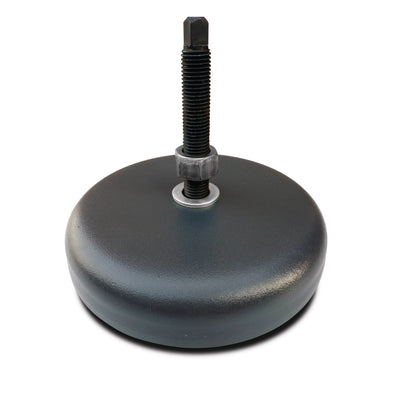

Leveling plate SE 1 Leveling plate SE 1 - 0

Leveling plate SE 1

Optimum

€36,78 EUR
Workplace mat 3040 x 940 mm Workplace mat 3040 x 940 mm - 0

Workplace mat 3040 x 940 mm

Unicraft

€633,45 EUR
View Product
Cooling lubricant nebulizer MMC1 Cooling lubricant nebulizer MMC1 - 0

Cooling lubricant nebulizer MMC1

Optimum

€206,64 EUR
View Product

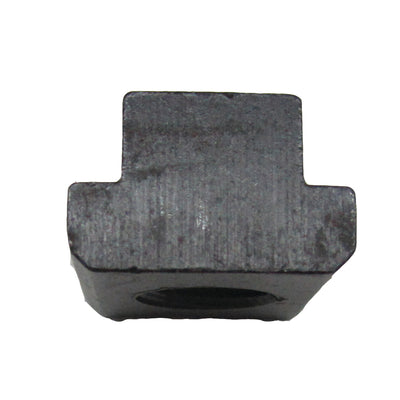

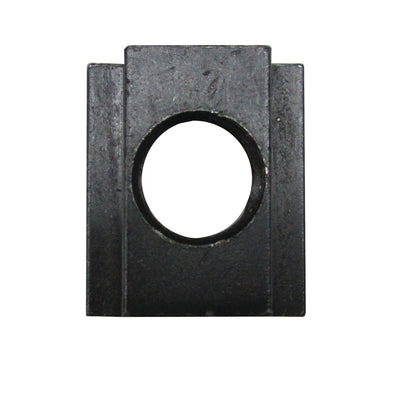

T-nut M 12/14 mm T-nut M 12/14 mm - 0
