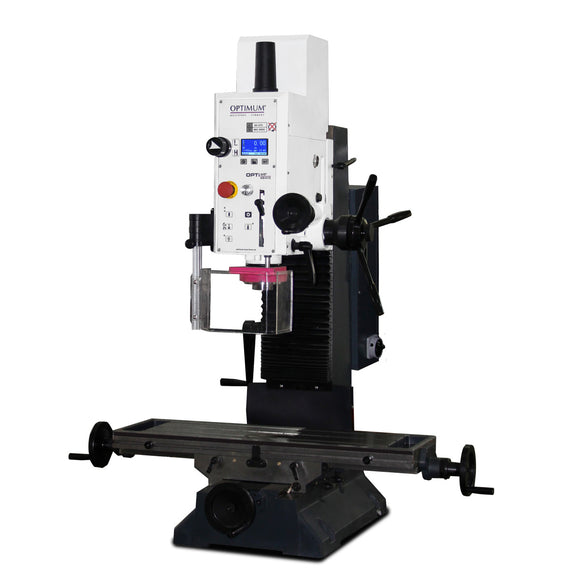

Drilling-milling machine OPTImill MB 4SVD

• Continuous drilling performance (steel) 28 mm
• Drilling performance (steel) 32 mm
• Frequency 50 Hz

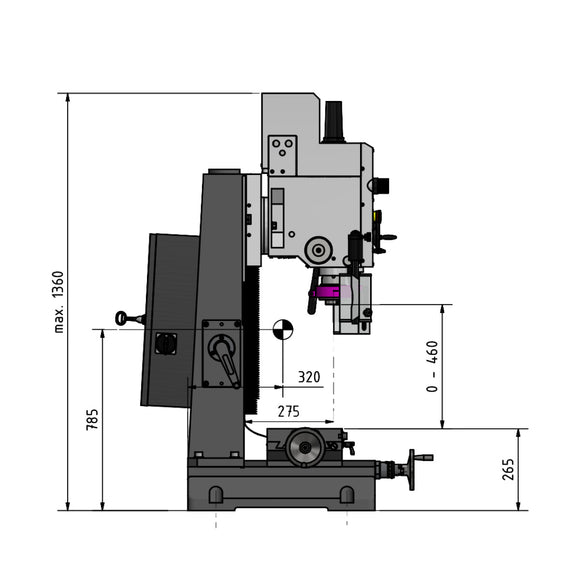

• Height 1360 mm

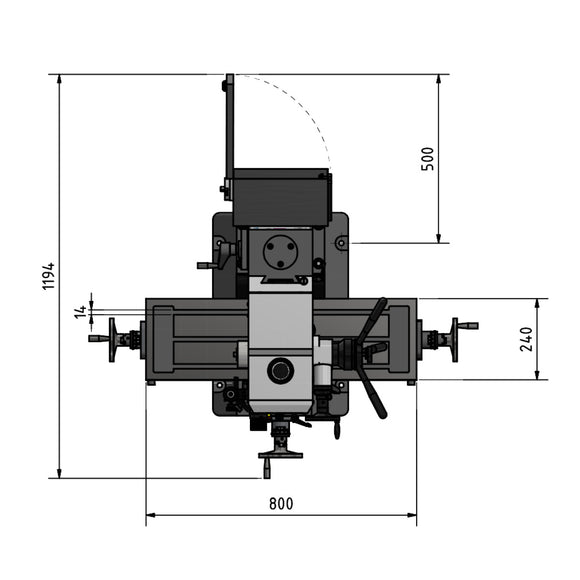

• Horizontal milling table length 800 mm
• Horizontal milling table width 240 mm

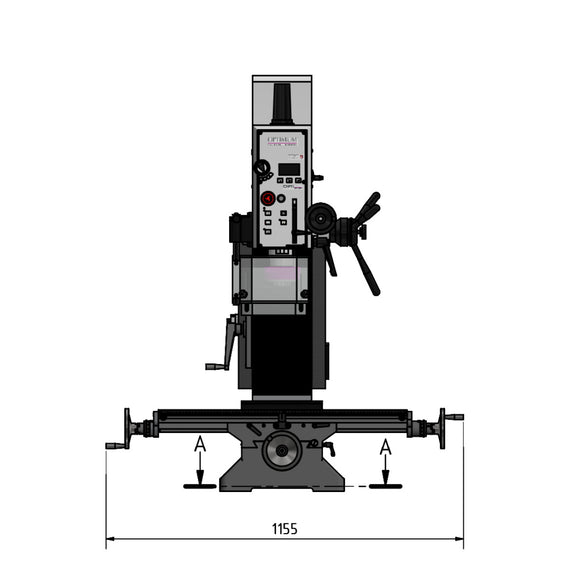

• Length 1155 mm
• Max. distance spindle to column 275 mm
• Max. size milling head 63 mm
• Max. size shaft milling cutter 26 mm
• Mill head swivel range ± 45 °
• Net weight 320 kg
• Supply voltage 230 V
• Vertical spindle drive motor output continuous operation S1 3 kW
• Vertical spindle number of gears 2
• Vertical spindle quill stroke 120 mm
• Vertical spindle speed range 60 - 3000 min¯¹
• Vertical spindle spindle chuck MK 4 / MK 16
• Width 980 mm
• X-axis travel 450 mm
• Y-axis travel 200 mm

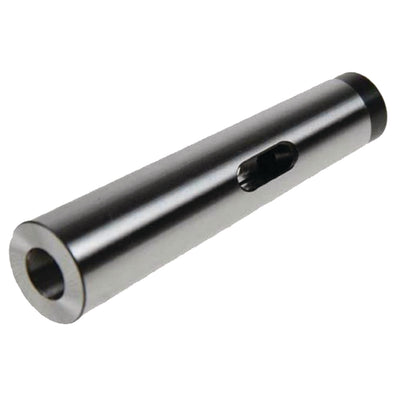

• Adapter MK4/MK 3
• Tightening rod M 16
• Adapter MK4/22 mm
• Operating tool
