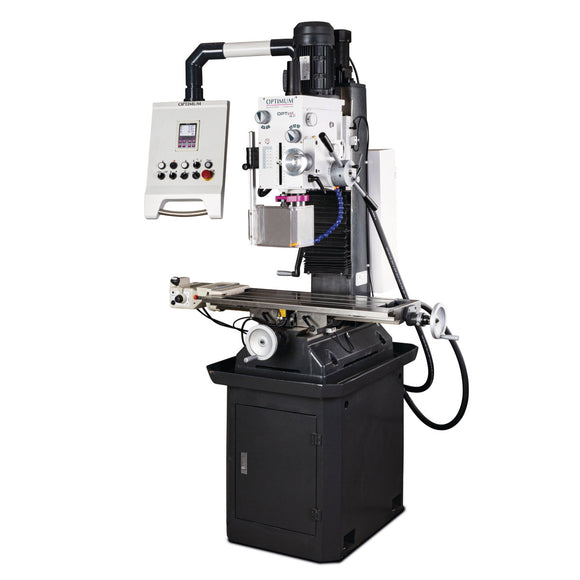

Drilling-milling machine OPTImill MB 4PV

• Continuous drilling performance (steel) 20 mm
• Coolant pump(s) drive power 100 W

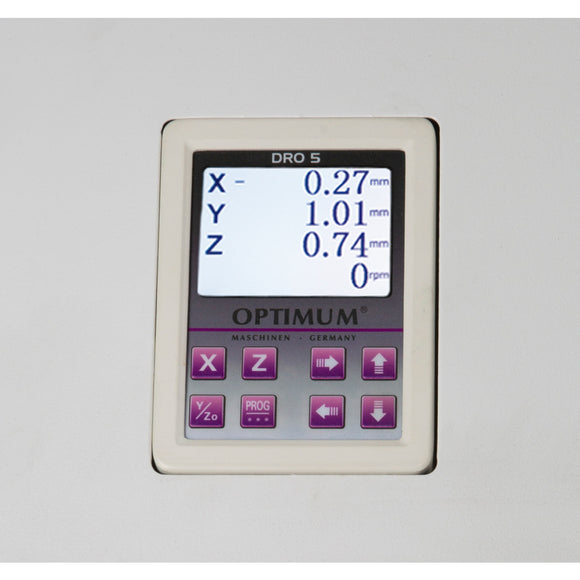

• Digital position indicator DRO 5
• Drilling performance (steel) 24 mm
• EMC level C2
• Frequency 50 Hz

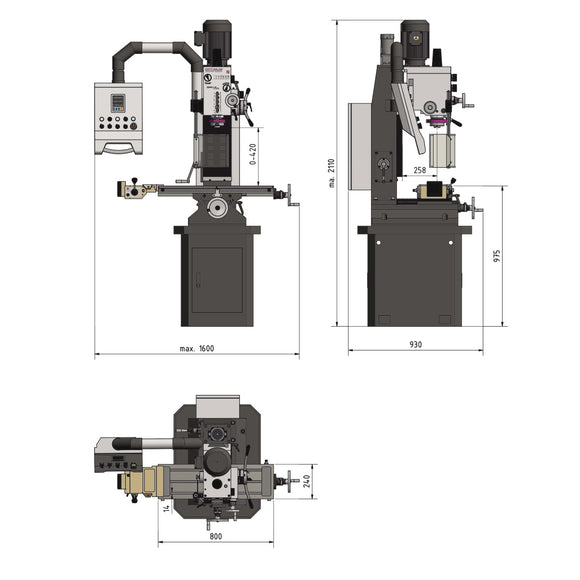

• Height 2110 mm
• Horizontal milling table length 800 mm
• Horizontal milling table width 240 mm
• Length 1600 mm
• Max. size milling head 63 mm
• Max. size shaft milling cutter 26 mm
• Motor power 1,5 kW
• Net weight 495 kg
• Standard DIN EN 55011
• Supply voltage 400 V

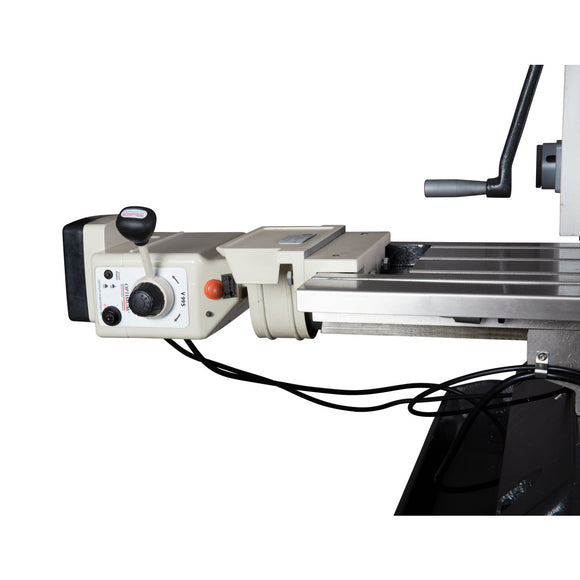

• Travel X axis automatic 480 mm

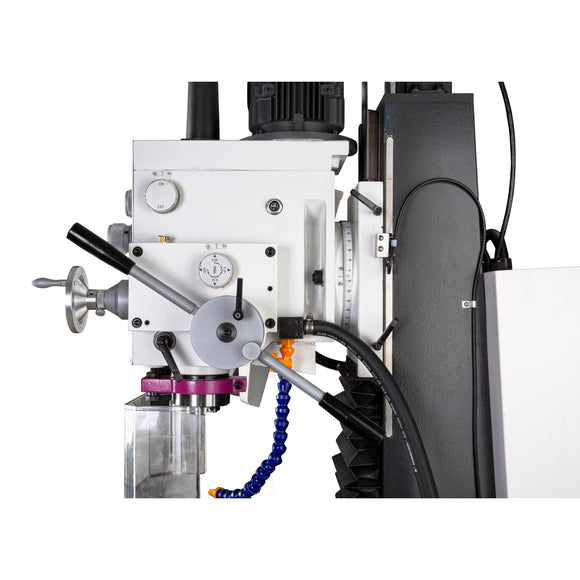

• Vertical spindle number of gears 2
• Vertical spindle quill diameter 75 mm
• Vertical spindle quill stroke 120 mm
• Vertical spindle reach 258 mm
• Vertical spindle speed range 60 – 2760 min¯¹
• Vertical spindle spindle chuck MT 4
• Vertical spindle tightening bar M 16
• Width 930 mm
• X-axis travel 560 mm
• Y-axis travel 195 mm
• Z-axis travel 350 mm

• substructure
• Morse cone MK 3
• Adapter MK 3 - MK 4
• Pulling rod M 16
• operating tool
