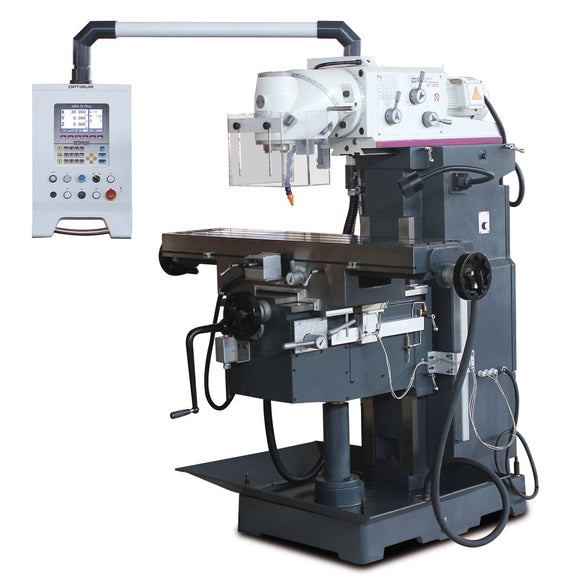

Universal milling machine OPTImill MT 130S

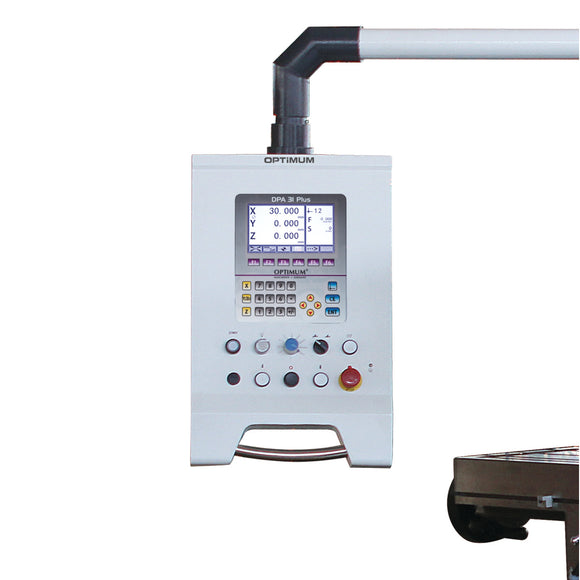

• Digital position indicator DPA 31 Plus
• Fast motion speed X axis 1335 mm/min
• Fast motion speed Y axis 1335 mm/min
• Fast motion speed Z axis 1000 mm/min
• Frequency 50 Hz

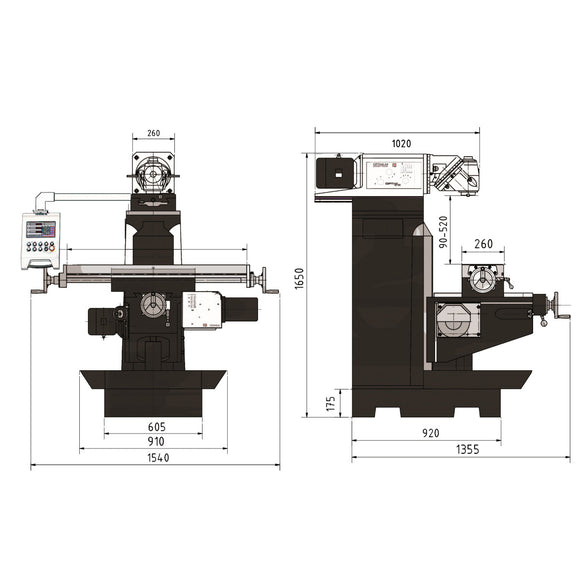

• Height 1700 mm
• Horizontal milling table length 1270 mm
• Horizontal milling table max. load bearing capacity 200 kg
• Horizontal milling table width 300 mm
• Length 1760 mm
• Max. size milling head 100 mm
• Max. size shaft milling cutter 20 mm

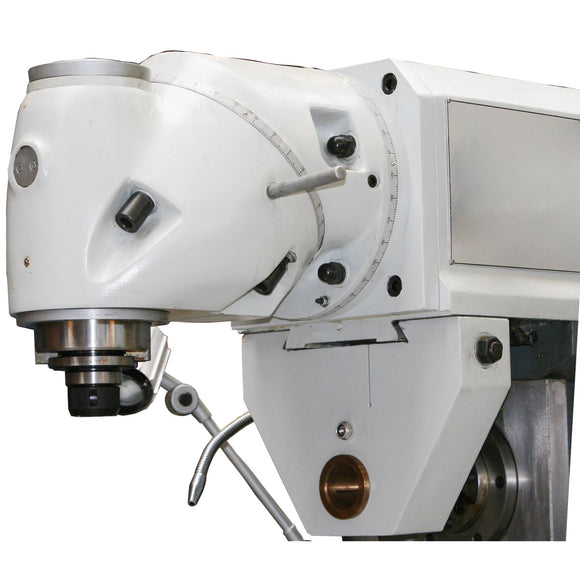

• Mill head swivel range 360 °
• Motor power 3 kW
• Net weight 1450 kg
• Supply voltage 400 V
• Total rated value 6 kW
• Travel X axis automatic 650 mm
• Travel Y axis automatic 220 mm
• Travel Z axis automatic 320 mm
• Vertical spindle number of gears 11 Steps
• Vertical spindle reach from to 150 – 550 mm
• Vertical spindle speed range 45 – 1660 min¯¹
• Vertical spindle spindle chuck ISO 40 DIN 2080
• Width 1550 mm
• X axis feed speed 30 – 830 mm/min
• X-axis travel 720 mm
• Y axis feed speed 30 – 830 mm/min
• Y-axis travel 300 mm
• Z axis feed speed 23 – 625 mm/min
• Z-axis travel 400 mm

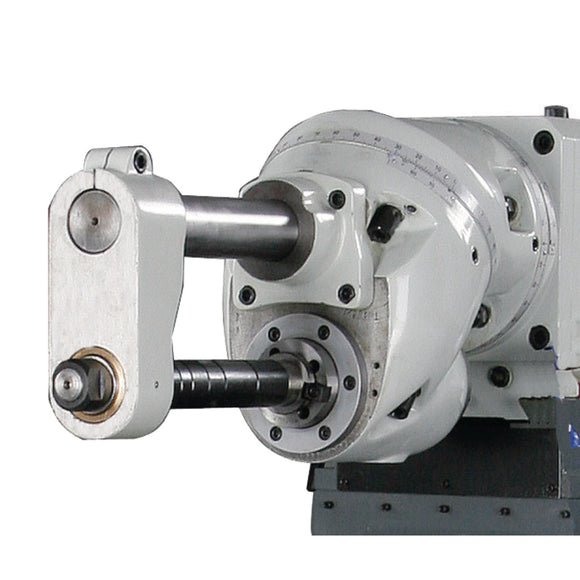

• Taper shank with counter bearing for horizontal milling Ø 27 mm
• Milling spigot Ø 27 mm
• Operating tool
