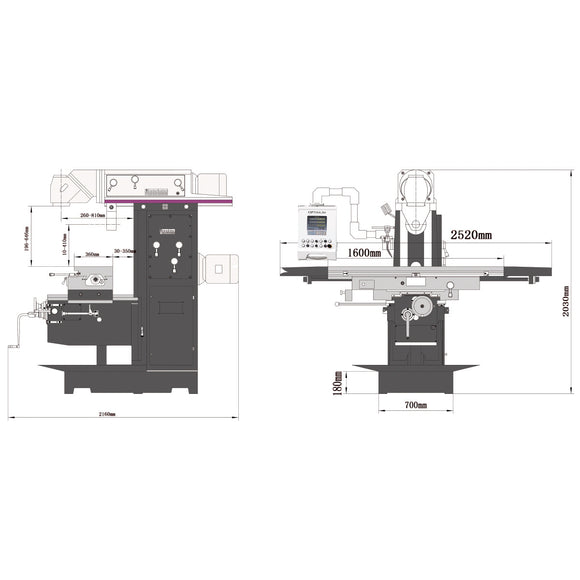

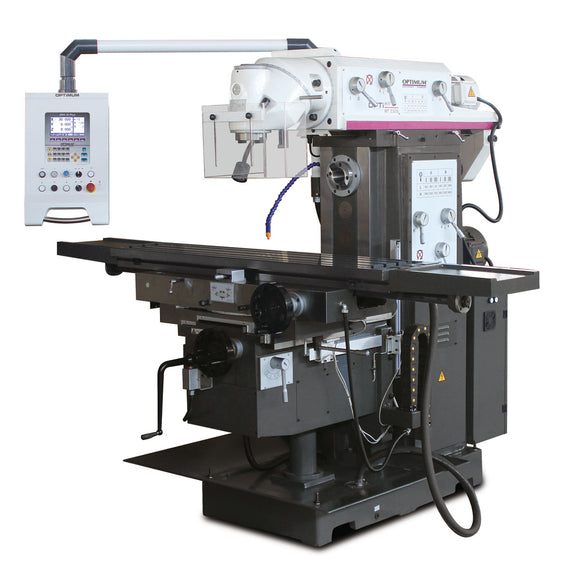

Universal milling machine OPTImill MT 230S

• Coolant pump(s) drive power 90 W

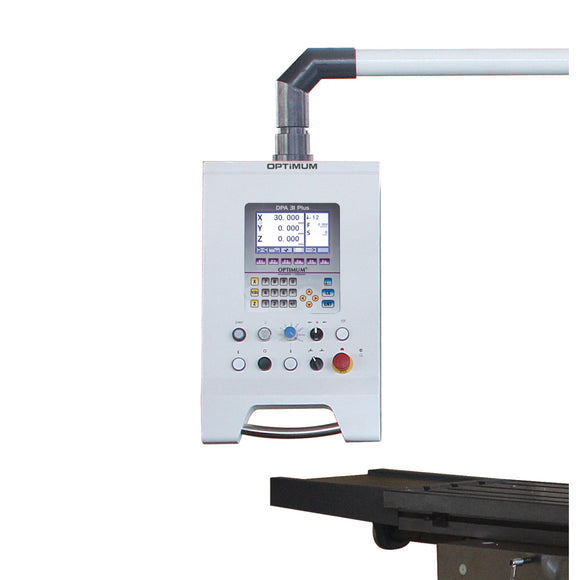

• Digital position indicator DPA 31 Plus
• Fast motion speed X axis 1200 mm/min
• Fast motion speed Y axis 800 mm/min
• Fast motion speed Z axis 600 mm/min
• Frequency 50 Hz
• Height 2005 mm
• Horizontal milling table length 1600 mm
• Horizontal milling table max. load bearing capacity 400 kg
• Horizontal milling table rotation 35 °
• Horizontal milling table width 360 mm
• Horizontal spindle drive motor output 5.5 kW
• Horizontal spindle gear 60 – 1800 min¯¹
• Horizontal spindle number of gears 12 Steps
• Horizontal spindle spindle chuck ISO 50 DIN 2080
• Length 2520 mm
• Max. size milling head 160 mm
• Max. size shaft milling cutter 25 mm
• Net weight 2800 kg
• Supply voltage 400 V
• Total rated value 12 kW
• Travel X axis automatic 1220 mm
• Travel Y axis automatic 220 mm
• Travel Z axis automatic 320 mm
• Vertical spindle drive motor output normal operation 4 kW
• Vertical spindle number of gears 12
• Vertical spindle reach from to 260 – 810 mm
• Vertical spindle speed range 60 – 1750 min¯¹
• Vertical spindle spindle chuck ISO 50 DIN 2080
• Vertical spindle tightening bar M 24
• Width 2160 mm
• X axis feed speed 30 – 750 mm/min
• X-axis travel 1300 mm
• Y axis feed speed 20 – 500 mm/min
• Y-axis travel 300 mm
• Z axis feed speed 15 – 375 mm/min
• Z-axis travel 400 mm

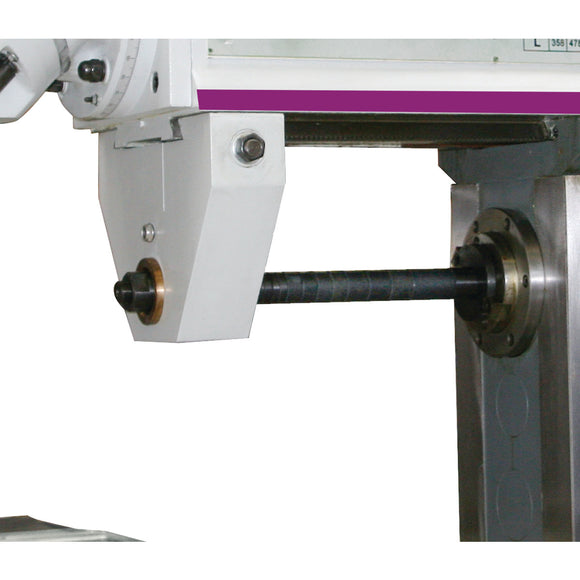

• Horizontal milling spindle with thrust bearing, mounting disk cutter Ø 32 mm, Ø 27 mm
• Adapter ISO 50 ( 7:24) / MK4
• Horizontal and vertical M24 tightening rod
• Operating tool
