Horizontal-vertical rotary indexing table RT 200-1
Horizontal-vertical rotary indexing table RT 200-2

Horizontal-vertical rotary indexing table RT 200

€774,90 EUR (€630,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3356200 Barcode: 4030635001734

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

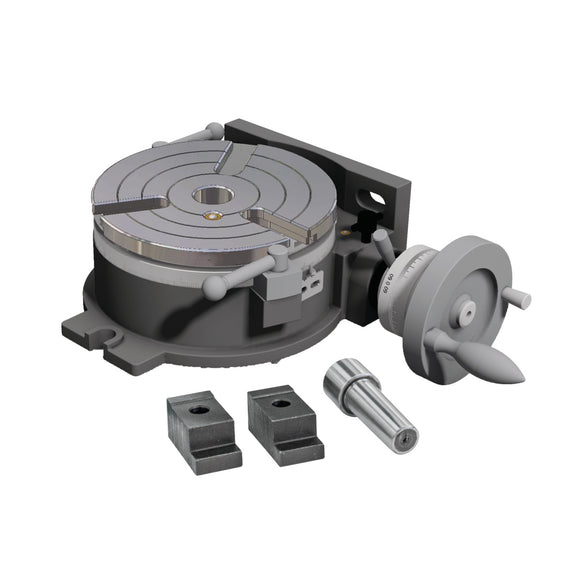

Horizontal-vertical rotary indexing table RT 200.
  • Work table is 360° scaled
  • Precision storage
  • One rotation of the handwheel corresponds to 4° rotation
  • Stability even under high stress
  • Scale division on the handwheel 2′
  • Large spindle bore, for clamping longer workpieces
  • Division via scaled handwheel with Nonius possible
  • Screw hardened and ground
RT 200
  • Angular degree parts over 360 degree angle scale
  • Nut 16mm (M16)
  • With optional indirect discs divisions in high numbers possible


.
  • Clamping surface diameter 200 mm
  • Clamping surface groove number 3
  • Clamping surface groove width 16 mm
  • Closed height 104 mm
  • Length 265 mm
  • Max. height 133 mm
  • Net weight 30 kg
  • Width 199 mm
  • 2 clamping blocks
  • Centring cone MT 3

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

Drilling-milling machine OPTImill MF 4-B Drilling-milling machine OPTImill MF 4-B - 0

Drilling-milling machine OPTImill MF 4-B

Optimum

€16.223,70 EUR

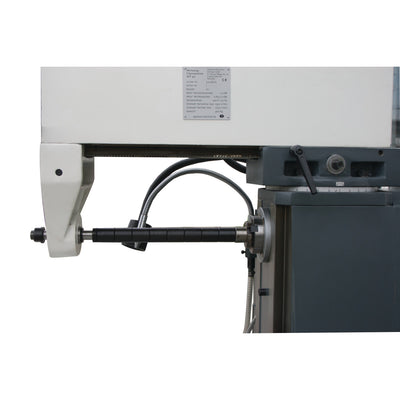

Drilling-milling machine OPTImill MT 50 Drilling-milling machine OPTImill MT 50 - 0

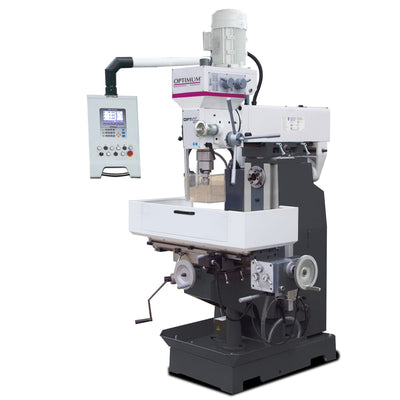

Drilling-milling machine OPTImill MT 50

Optimum

€13.960,50 EUR
Enquire
Universal milling machine OPTImill MT 200 Universal milling machine OPTImill MT 200 - 0

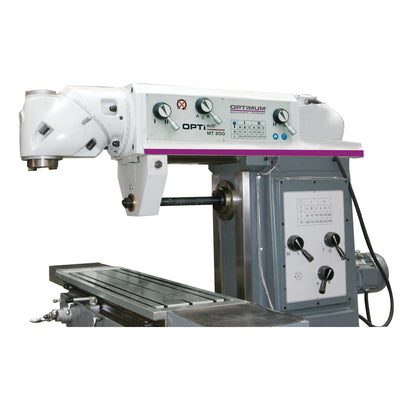

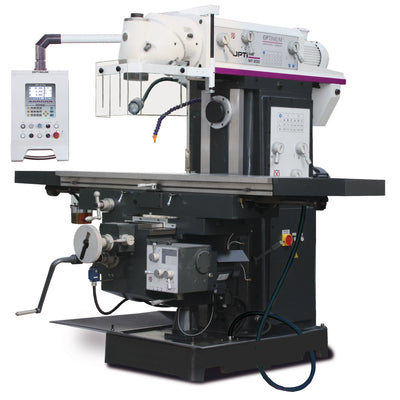

Universal milling machine OPTImill MT 200

Optimum

€33.886,50 EUR
Enquire
Universal milling machine OPTImill MT 100 Universal milling machine OPTImill MT 100 - 0

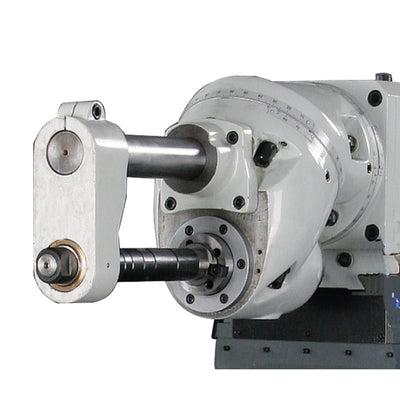

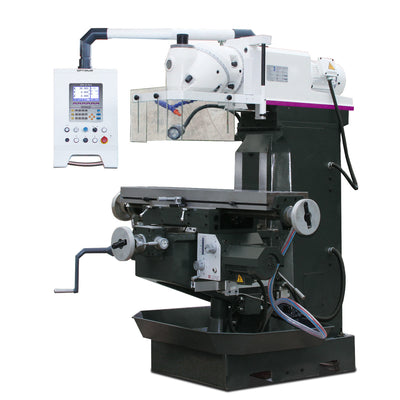

Universal milling machine OPTImill MT 100

Optimum

€20.725,50 EUR
Enquire
Drilling-milling machine OPTImill MF 2V Drilling-milling machine OPTImill MF 2V - 0

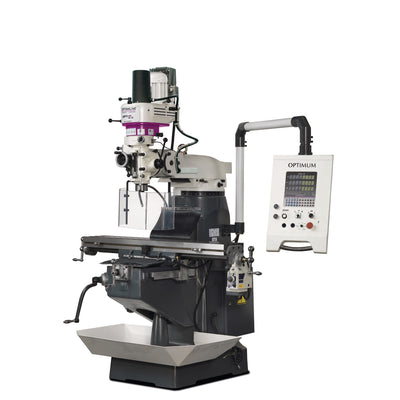

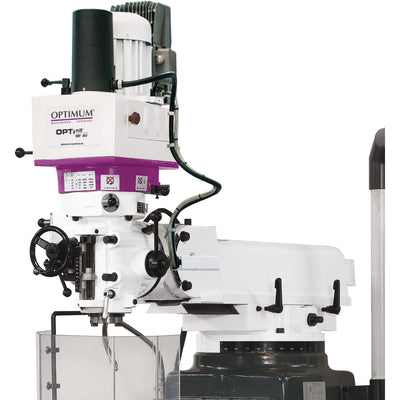

Drilling-milling machine OPTImill MF 2V
