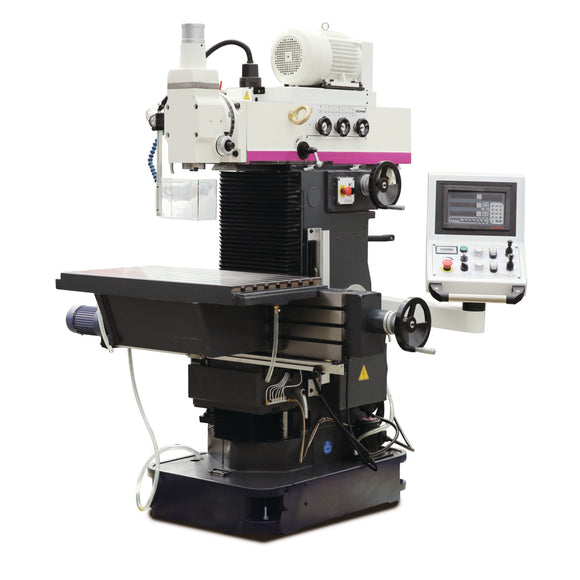

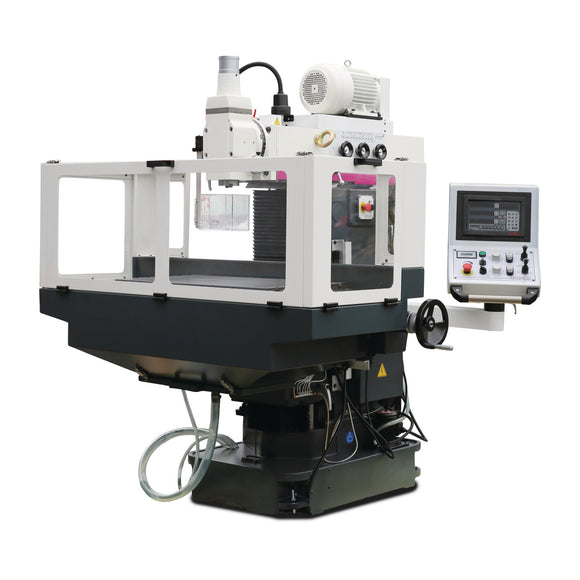

Tool milling machine OPTImill MZ 2S

• Continuous drilling performance (steel) 26 mm
• Coolant pump(s) drive power 95 W
• Digital position indicator DP 700
• Drilling performance (steel) 30 mm
• Frequency 50 Hz
• Height 1900 mm
• Horizontal milling table length 750 mm
• Horizontal milling table max. load bearing capacity 285 kg
• Horizontal milling table width 320 mm
• Length 1239 mm
• Max. size milling head 100 mm
• Max. size shaft milling cutter 25 mm
• Mill head swivel range ± 90 °
• Motor power 2,2 kW
• Net weight 1400 kg
• Supply voltage 400 V
• Total rated value 4 kW
• Travel X axis automatic 310 mm
• Travel Y axis automatic 160 mm
• Travel Z axis automatic 295 mm
• Vertical milling table length 830 mm
• Vertical milling table width 250 mm
• Vertical spindle load max. 1100 Nm
• Vertical spindle number of gears 12 Steps
• Vertical spindle quill stroke 120 mm
• Vertical spindle reach 100 mm
• Vertical spindle speed range 50 – 1890 min¯¹
• Vertical spindle spindle chuck ISO 40 DIN 2080
• Vertical spindle tightening bar M 16
• Width 1168 mm
• X axis fast motion drive motor output 0.375 kW
• X axis feed speed 10 – 600 mm/min
• X-axis travel 400 mm
• Y axis fast motion drive motor output 0.375 kW
• Y axis feed speed 10 – 600 mm/min
• Y-axis travel 200 mm
• Z axis fast motion drive motor output 0.375 kW
• Z axis feed speed 10 – 600 mm/min
• Z-axis travel 335 mm

• Adapter ISO 40/MK3
• Adapter MK1 and MK 2
• Milling spindle horizontal milling Ø 27 mm
• Operating tool
