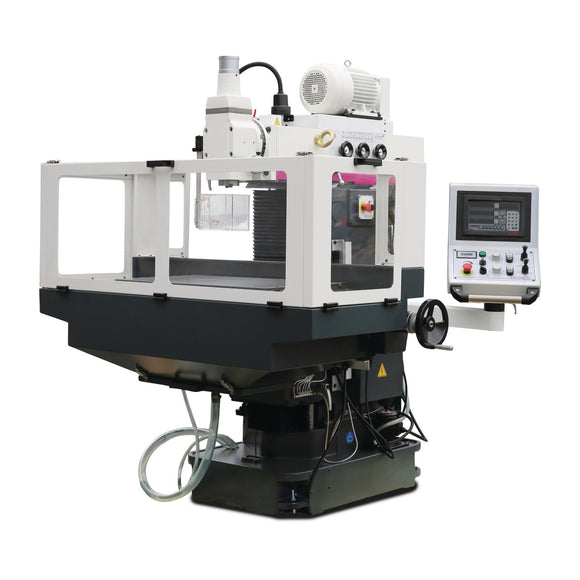

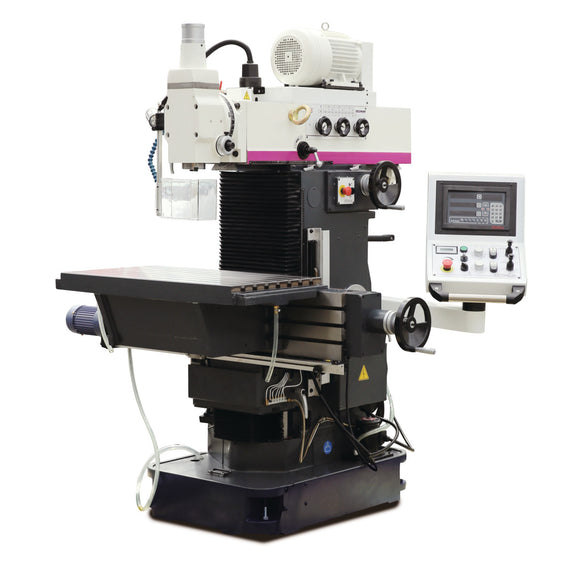

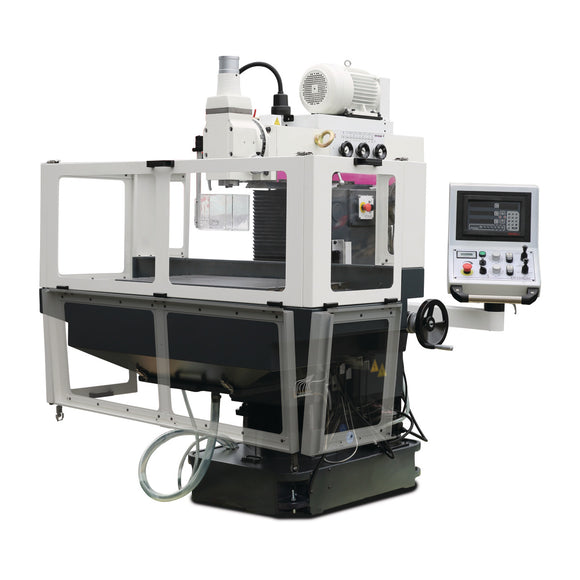

Tool milling machine OPTImill MZ 4S

• Continuous drilling performance (steel) 28 mm
• Coolant pump(s) drive power 95 W
• Digital position indicator DP 700
• Drilling performance (steel) 32 mm
• Frequency 50 Hz
• Height 1885 mm
• Horizontal milling table length 900 mm
• Horizontal milling table max. load bearing capacity 360 kg
• Horizontal milling table width 500 mm
• Length 1610 mm
• Max. size milling head 100 mm
• Max. size shaft milling cutter 25 mm
• Motor power 3.75 kW
• Net weight 1890 kg
• Supply voltage 400 V
• Total rated value 5.4 kW
• Travel X axis automatic 510 mm
• Travel Y axis automatic 440 mm
• Travel Z axis automatic 345 mm
• Vertical milling table length 1200 mm
• Vertical milling table width 250 mm
• Vertical spindle number of gears 18 Steps
• Vertical spindle quill stroke 120 mm
• Vertical spindle reach 185 mm
• Vertical spindle speed range 30 – 2550 min¯¹
• Vertical spindle spindle chuck ISO 40 DIN 2080
• Vertical spindle tightening bar M 16
• Width 1825 mm
• X axis fast motion drive motor output 0,75 kW
• X axis feed speed 10 – 600 mm/min
• X-axis travel 600 mm
• Y axis fast motion drive motor output 0,75 kW
• Y axis feed speed 10 – 600 mm/min
• Y-axis travel 480 mm
• Z axis fast motion drive motor output 0,75 kW
• Z axis feed speed 10 – 600 mm/min
• Z-axis travel 390 mm

• Adapter ISO 40/MK3
• Adapter MK1 and MK 2
• Milling spindle horizontal milling Ø 27 mm
• Operating tool
