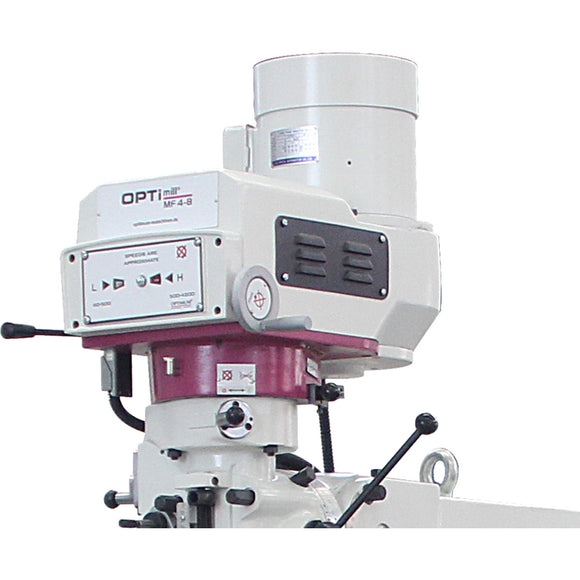

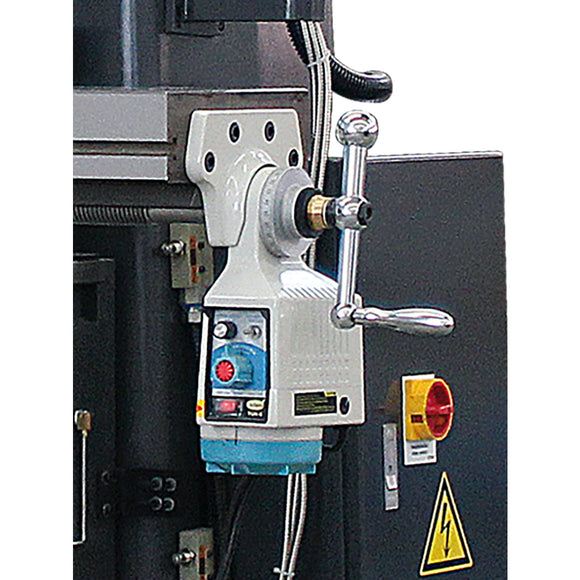

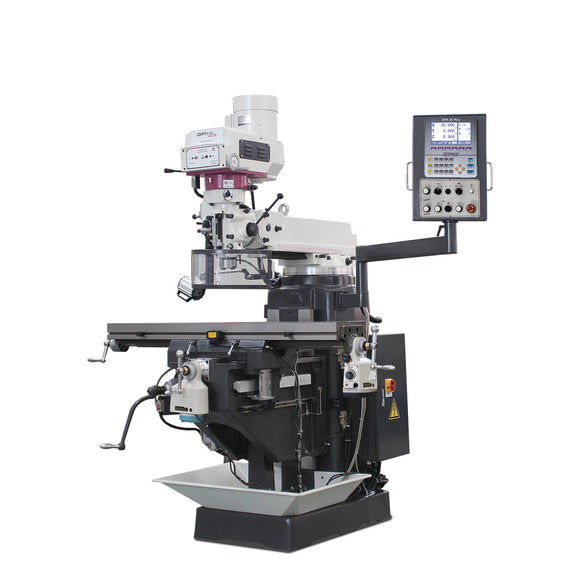

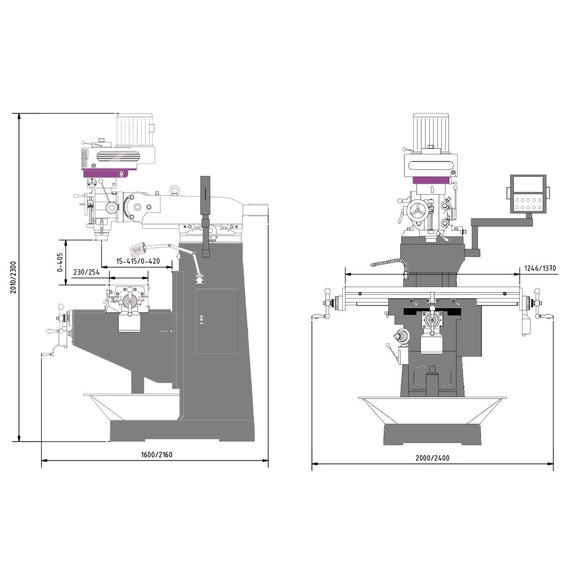

Drilling-milling machine OPTImill MF 4-B

• Continuous drilling performance (steel) 20 mm
• Coolant pump(s) drive power 90 W

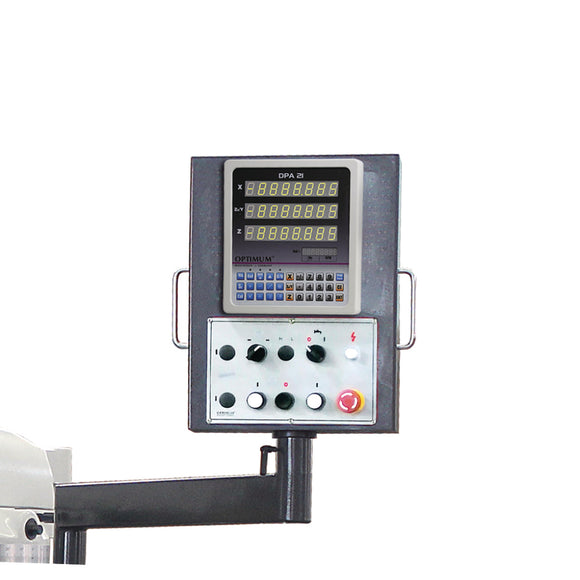

• Digital position indicator DPA 31 Plus
• Drilling performance (steel) 24 mm
• Frequency 50 Hz
• Height 2300 mm
• Horizontal milling table length 254 mm
• Horizontal milling table max. load bearing capacity 300 kg
• Horizontal milling table width 1370 mm
• Length 2400 mm
• Max. size milling head 76 mm
• Max. size shaft milling cutter 25 mm
• Mill head swivel range horizontal ± 90 °
• Net weight 1260 kg
• Standard DIN EN 55011
• Supply voltage 400 V
• Total rated value 3 kW
• Travel X axis automatic 740 mm
• Travel Y axis automatic 330 mm
• Travel Z axis automatic 320 mm
• Vertical spindle drive motor output normal operation 2,2 kW
• Vertical spindle milling head travel Y axis 470 mm
• Vertical spindle number of gears 2
• Vertical spindle quill diameter 86 mm
• Vertical spindle quill feed 0.04 / 0.08 / 0.15 mm/rev
• Vertical spindle quill stroke 127 mm
• Vertical spindle reach from to 0 – 420 mm
• Vertical spindle speed range 60 – 4200 min¯¹
• Vertical spindle spindle chuck ISO 40 DIN 2080
• Width 2160 mm
• X-axis travel 820 mm
• Y-axis travel 410 mm
• Z-axis travel 400 mm

• operating tool
