Manual toggle press PD5-1
Manual toggle press PD5-2

Manual toggle press PD5

€392,37 EUR (€319,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3359050 Barcode: 4030635048517

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

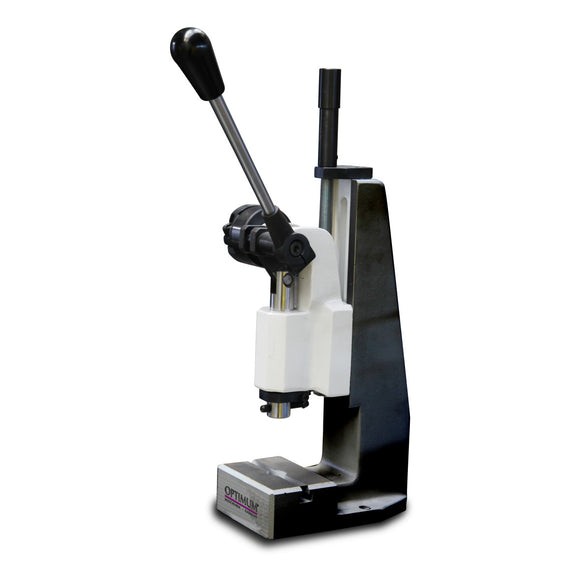

Manual toggle press PD5.
  • Precise adjustment of the offset
  • Hardened and ground spindle
  • Long spindle guide
  • High force at the end of the stroke
  • Quick changeover thanks to simple and safe adjustment of the working height
  • Ground press tables allow reproducible positioning of your tools


.
  • Bore spindle sleeve 10 mm
  • Diameter piston rod 10 mm
  • Distance between press frame and press ram 80 mm
  • Height 507 mm
  • Length 190 mm
  • Maximum force 5 kN
  • Net weight 13 kg
  • Piston Travel from to 65 – 180 mm
  • Piston stroke 40 mm
  • Press head travel range 65 – 180 mm
  • Press ram travel 30 mm
  • Pressure force 5 kN
  • Reach 65 mm
  • T-slot size 16 mm
  • Table length 115 mm
  • Table width 80 mm
  • Width 115 mm
  • Work table length 110 mm
  • Work table width 80 mm
