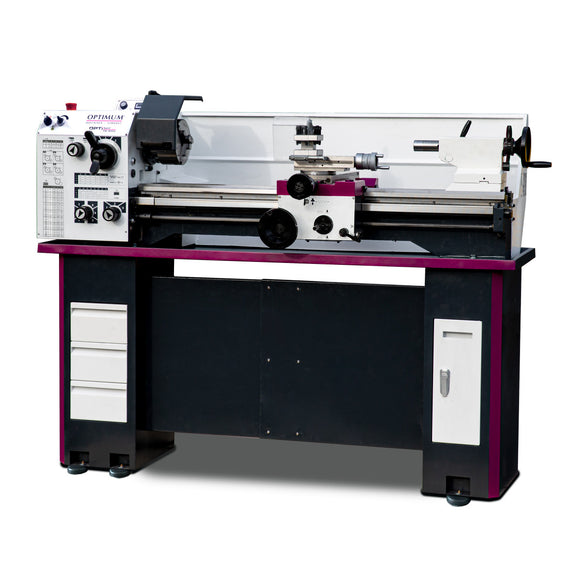

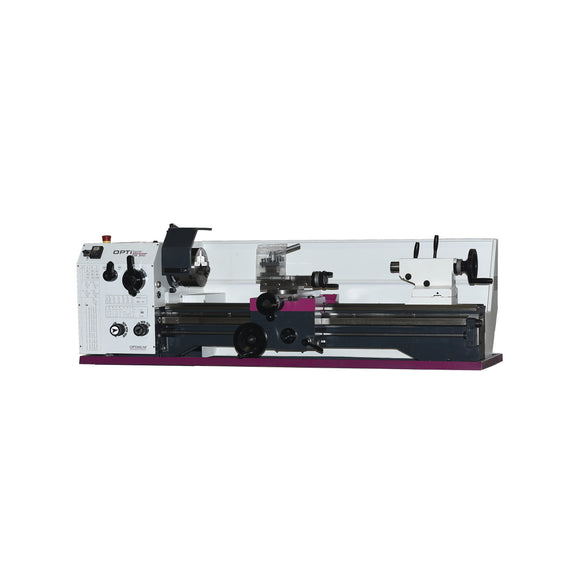

Conventional Centre Lathe OPTIturn TM 3110VB

• 50 – 2500 min¯¹
• Bed width 190 mm
• Flat feed range 0,01 – 0,2 mm/rev
• Frequency 50 Hz
• Height 540 mm
• Imperial pitch 56 – 4 Gg/1"
• Length 1632 mm
• Longitudinal feed range 0,02 – 0,4 mm/rev
• Max. height 155 mm
• Max. width 1000 mm
• Metric pitch 0,4 – 10 mm/rev
• Motor power 1,5 kW
• Net weight 360 kg
• Number of flat feeds 32
• Number of gears 3 Steps
• Number of longitudinal feeds 24
• Number of metric pitches 29
• Spindle bore 38 mm

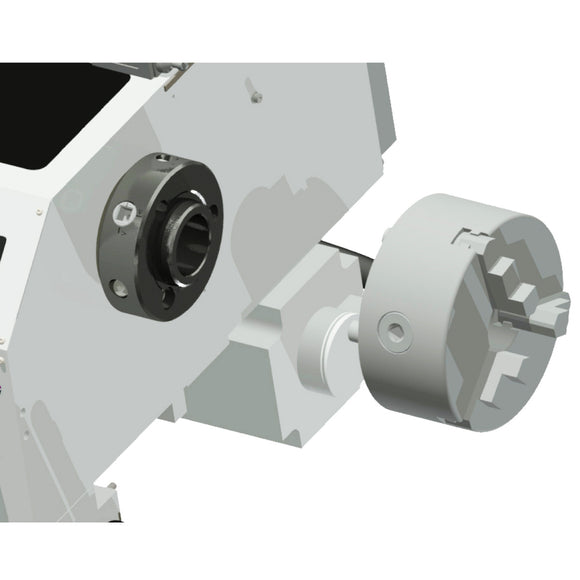

• Spindle chuck Camlock DIN ISO 702-2 No. 4
• Spindle cone MK 5
• Supply voltage 230 V
• Swing diameter above machine bed 310 mm
• Swing diameter above planing slide 216 mm

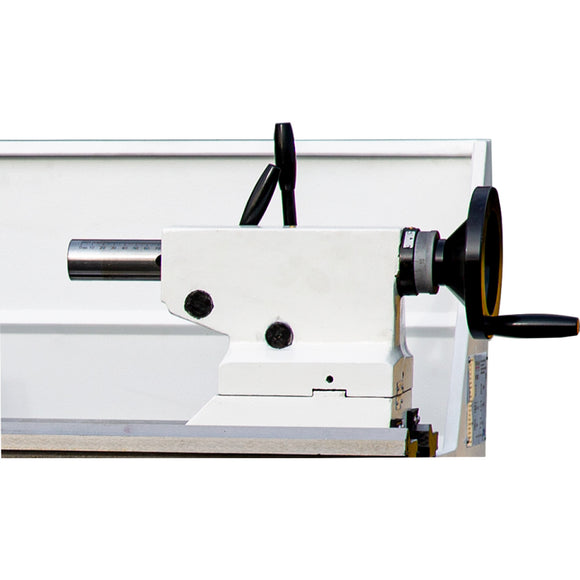

• Tailstock chuck MK 3
• Tailstock quill diameter 38 mm
• Tailstock quill stroke 100 mm
• Tool holder max. chuck height 16 mm
• Travel carriage saddle 850 mm
• Travel cross slide 168 mm
• Travel upper slide 90 mm
• Width 770 mm

• Three-jaw lathe chuck Ø 160 mm, No. 4
• Reducing sleeve MK 5 / MK 3
• Two non-moving center points MK 3
• Quadruple steel holder 25 mm
• Set of change gears
• Machine initial filling with quality oil
• Operating tool
