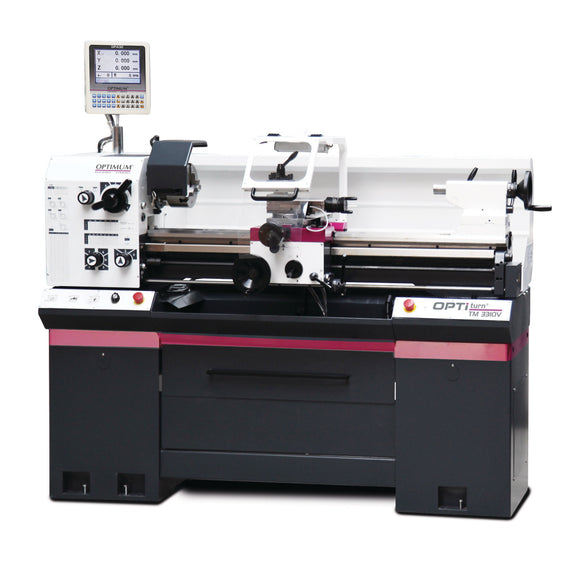

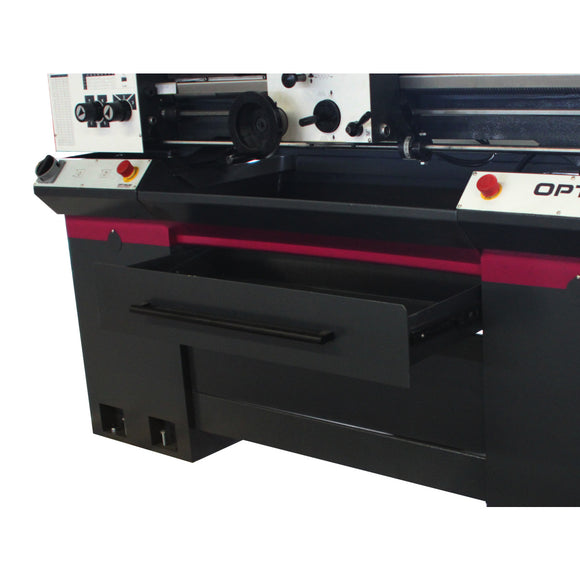

Guide and traction spindle lathes OPTIturn TM 3310V

• 14 – 2800 min¯¹

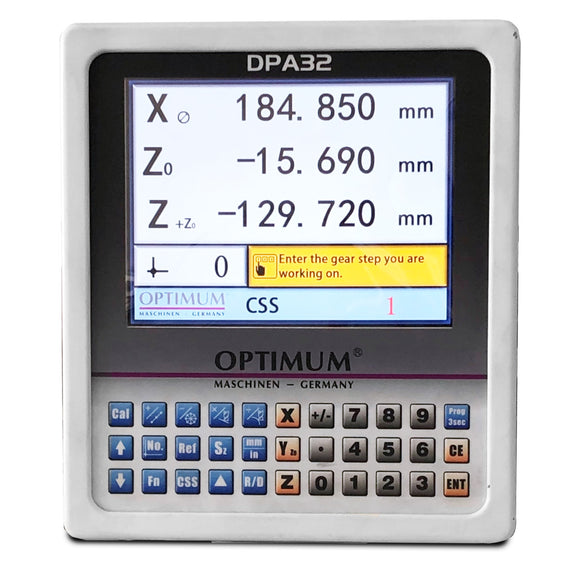

• Digital position indicator DPA 32
• Flat feed range 0.01 – 0.2 mm/rev
• Frequency 50 Hz
• Height 1590 mm
• Imperial pitch 56 – 4 Gg/1"
• Length 1760 mm
• Longitudinal feed range 0.02 – 0.4 mm/rev
• Max. height 165 mm
• Max. width 1000 mm
• Metric pitch 0.4 – 10 mm/rev
• Motor power 1.5 kW
• Net weight 470 kg
• Number of flat feeds 32
• Number of gears 6 Steps
• Number of longitudinal feeds 24
• Number of metric pitches 29
• Spindle bore 38 mm
• Spindle chuck Camlock DIN ISO 702-2 No. 4
• Spindle cone MT 5
• Supply voltage 400 V
• Swing diameter above machine bed 330 mm
• Swing diameter above planing slide 216 mm
• Tailstock chuck MT 3
• Tailstock quill diameter 38 mm
• Tailstock quill stroke 100 mm
• Tool holder max. chuck height 16 mm
• Travel carriage saddle 850 mm
• Travel cross slide 168 mm
• Travel upper slide 90 mm
• Width 745 mm

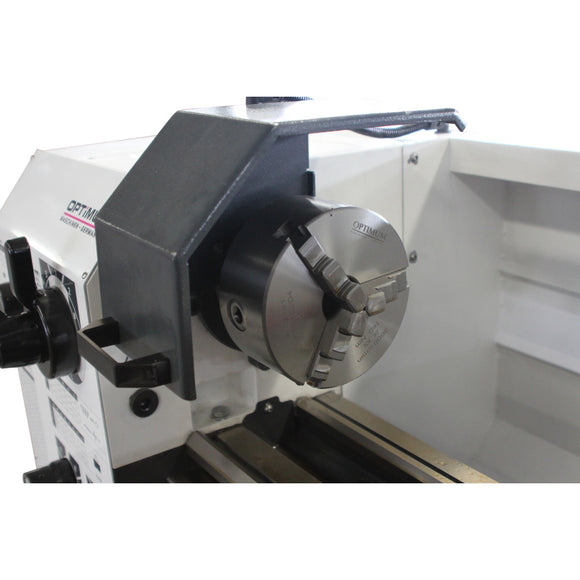

• Three-jaw lathe chuck Ø 160 mm, no. 4
• Reducing sleeve MK 5 / MK 3
• Non-rotating center point MK 3

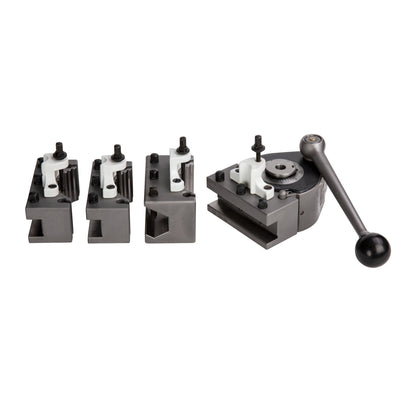

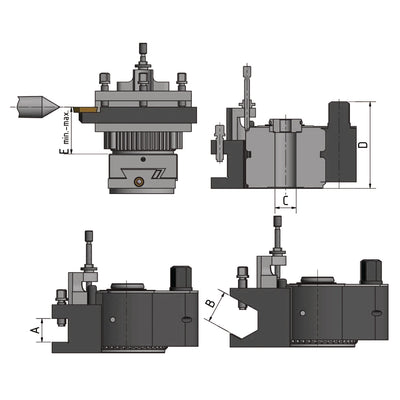

• Quadruple steel holder 16 mm
• Interchangeable gear set
• Machine base
• Initial machine filling with quality oil
• Operating tool
