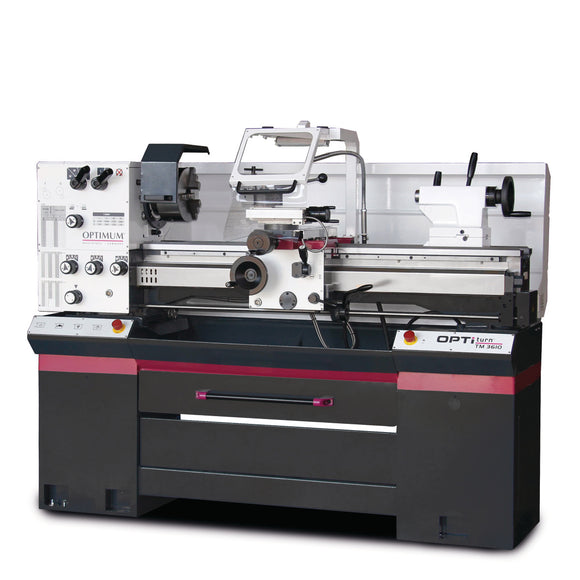

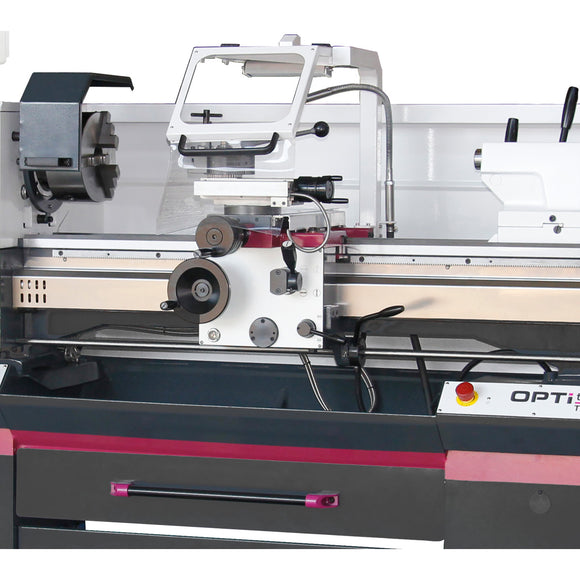

lathe OPTIturn TM 3610

• 70 – 2400 min¯¹
• Flat feed range 0,014 – 0,38 mm/rev
• Frequency 50 Hz
• Height 1475 mm
• Imperial pitch 56 – 4 Gg/1"
• Length 1964 mm
• Longitudinal feed range 0,052 – 1,392 mm/rev
• Max. height 180 mm
• Max. width 1000 mm
• Metric pitch 0,4 – 7 mm/rev
• Net weight 608 mm
• Number of flat feeds 32
• Number of gears 8 Steps
• Number of imperial pitches 34
• Number of longitudinal feeds 32
• Number of metric pitches 26
• Spindle bore 52 mm
• Spindle chuck Camlock DIN ISO 702-2 No. 5
• Spindle cone MT 6
• Supply voltage 400 V
• Swing diameter above machine bed 360 mm
• Swing diameter above planing slide 225 mm
• Tailstock chuck MK 3
• Tailstock quill diameter 42 mm
• Tailstock quill stroke 120 mm
• Tool holder SWH 3-E
• Total rated value 2,2 kW
• Travel upper slide 100 mm
• Width 869 mm

• Three-jaw lathe chuck Ø 200 mm Camlock no. 5
• Fixed steady rest Ø 7 - Ø 102 mm
• Rotating steady rest Ø 10 - Ø 60 mm
• LED machine light
• Adapter MK 6-MK 4
• Non-rotating center point MK4
• Quick-change steel holder SWH 3-E
• Steel holder 20 x 100 type D for square chisel 18 mm
• Initial machine filling with quality oil
• Operating tool
