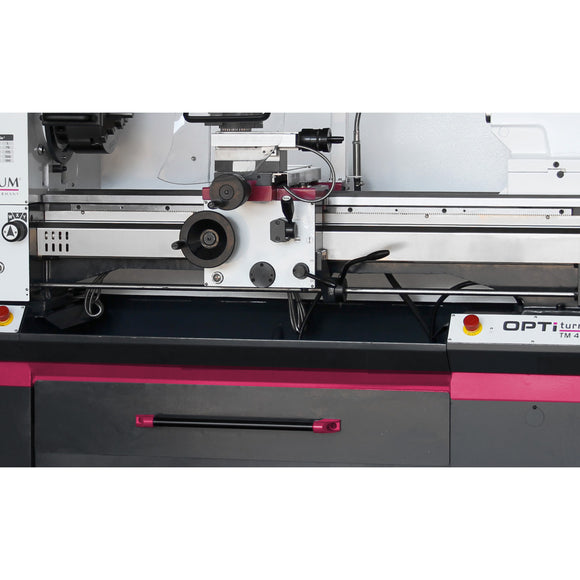

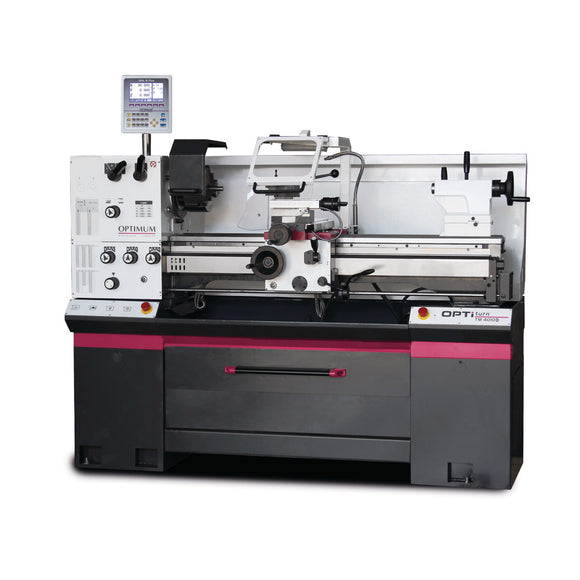

Guide and traction spindle lathes OPTIturn TM 4010D

• 70 – 2000 min¯¹
• Bed width 203 mm
• Cooling lubricant system coolant pump output 100 W

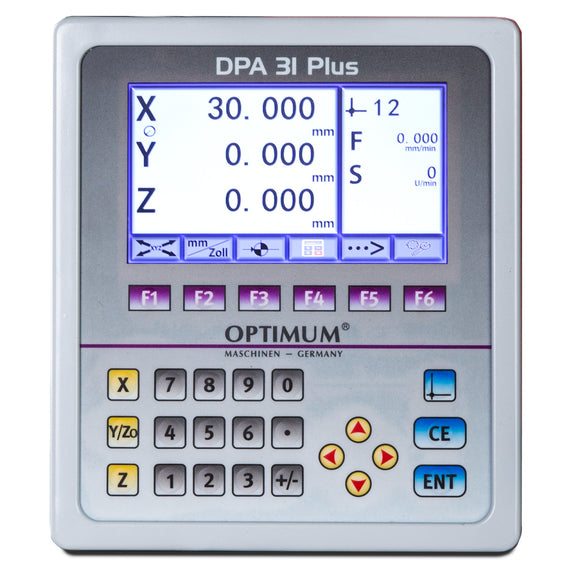

• Digital position indicator DPA 31 Plus
• Flat feed range 0,052 – 1,392 mm/rev
• Frequency 50 Hz

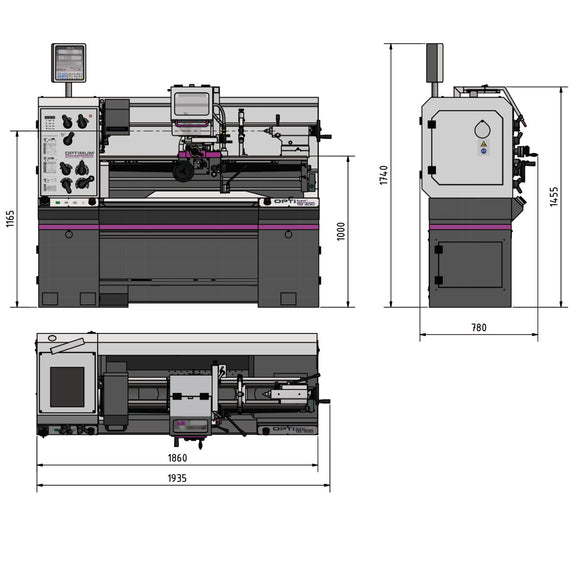

• Height 1740 mm
• Imperial pitch 56 – 4 Gg/1"
• Length 1935 mm
• Longitudinal feed range 0,014 – 0,38 mm/rev
• Max. height 200 mm
• Max. width 1000 mm
• Metric pitch 0,4 – 7 mm/rev
• Motor power 2,2 kW
• Net weight 767 kg
• Number of gears 8
• Number of imperial pitches 31
• Number of metric pitches 32
• Spindle bore 52 mm
• Spindle chuck Camlock DIN ISO 702-2 No.5
• Supply voltage 400 V
• Swing diameter above machine bed 400 mm
• Swing diameter above planing slide 250 mm
• Tailstock chuck MT 4
• Tailstock quill diameter 50 mm
• Tailstock quill stroke 110 mm
• Tool holder SWH 3-E
• Tool holder chuck size 30 mm
• Total rated value 3,0 kW
• Travel carriage saddle 850 mm
• Travel cross slide 185 mm
• Travel upper slide 98 mm
• Width 780 mm

• Three-jaw lathe chuck Ø 200 mm, no. 5
• Quick change tool holder 3-E
• Fixed steady 7 - 102 mm
• Travelling steady 10 - 60 mm
• Reduction sleeve MT 6 - MT 4
• Fixed centre MT 4
• Machine initially filled with premium grade oil
• Operating tool
