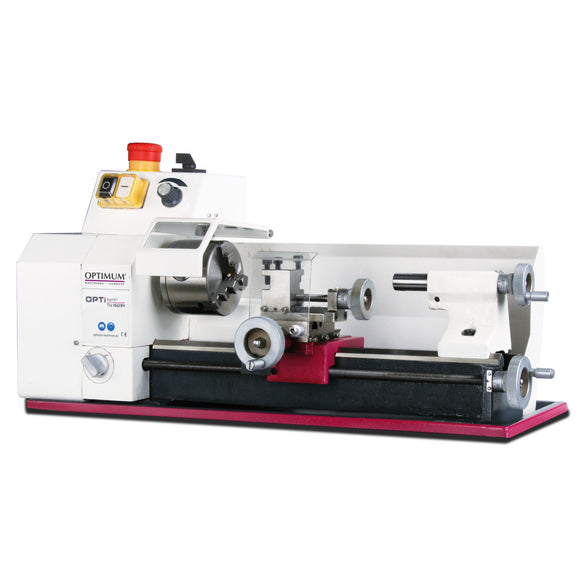

Lathe OPTIturn TU 1503V

• 120 – 3000 min¯¹
• Bed width 70 mm
• Diametrical pitch 30
• EMC level C1
• Frequency 50 Hz
• Height 300 mm
• Length 570 mm
• Longitudinal feed range 0,05 – 0,1 mm/rev
• Max. height 75 mm
• Max. width 265 mm
• Metric pitch 0,5 – 1,5 mm/rev
• Motor power 0,45 kW
• Net weight 23 kg
• Number of gears 1
• Number of longitudinal feeds 2
• Number of metric pitches 8
• Spindle bore 11 mm
• Spindle chuck cylindrical Ø 22
• Spindle cone MT 1
• Standard DIN EN 55011
• Supply voltage 230 V
• Swing diameter above planing slide 70 mm
• Tailstock chuck Shortened MT 1
• Tailstock quill stroke 30 mm
• Tool holder max. chuck height 12 mm
• Travel carriage saddle 270 mm
• Travel cross slide 55 mm
• Travel upper slide 40 mm
• Width 340 mm

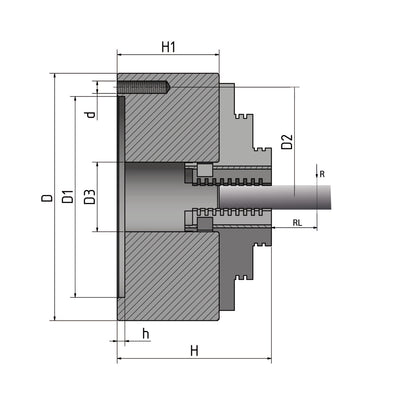

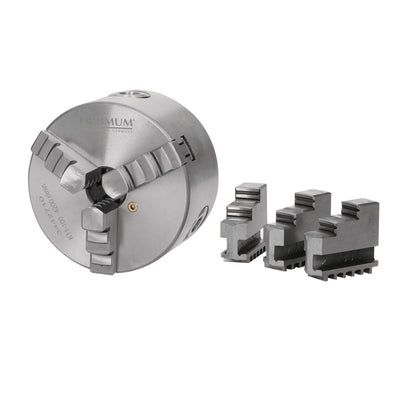

• Three-jaw lathe chuck Ø 80 mm,
  centrically exciting

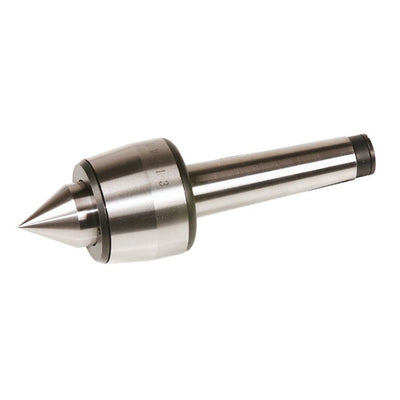

• Fixed center point MK1
• bulkhead
• chip pan
• Change gear set
• Double tool holder
• operating tool
