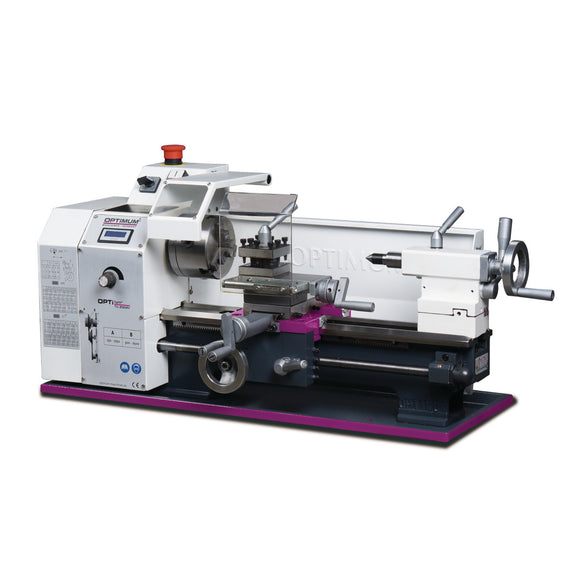

The OPTIturn TU 2004V is a precision metal lathe for workshops, toolrooms and training. A 0.6 kW motor and a two-gear drive give speeds from 150 to 2500 rpm on a standard 230 V supply. The lead screw and replacement gear set cut a wide range of threads: 14 metric pitches (0.25–3 mm) and 12 imperial pitches (44–8 TPI). A 3-jaw chuck is included.
Accuracy and build
- Heavily ribbed prismatic bed, inductively hardened and precision ground, with a hardened and ground Z-axis guideway
- Hardened main spindle in adjustable P5-quality tapered roller bearings, with spindle nose concentricity better than 0.009 mm and chuck concentricity better than 0.04 mm
- Rolled trapezoidal lead screw, supported in two sintered bearings
- Tailstock that can be offset for taper turning, with a quill handwheel with an adjustable fine scale of 0.02 mm, and a fast tool-free clamping lever
- Rotatable four-way tool post
- Automatic longitudinal feed via the lead screw
Safety and electrics
- Emergency stop impact switch and chuck protection
- Right and left rotation switchable on the control panel
- EMC filter, class C1
