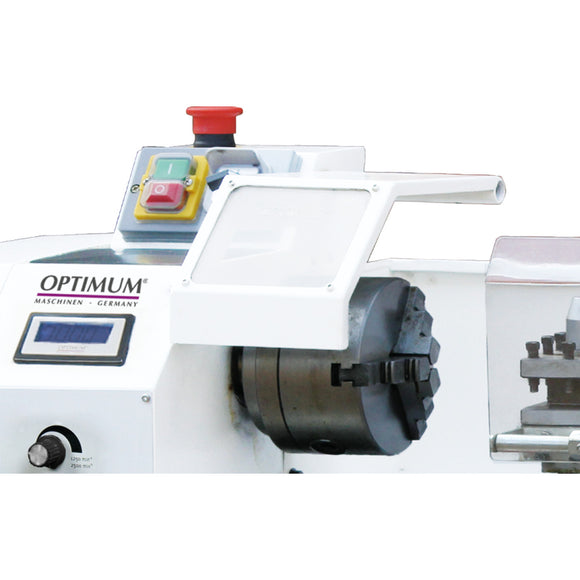

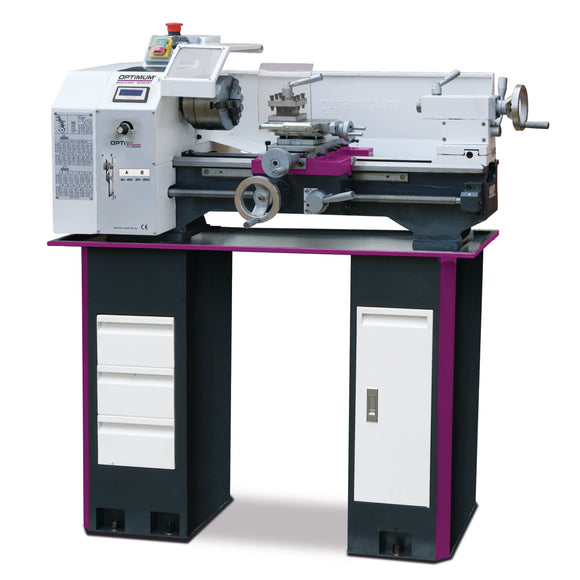

Lathe OPTIturn TU 2304V

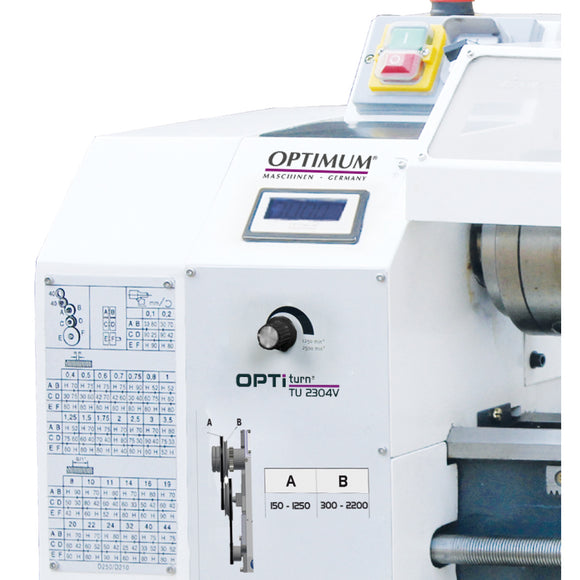

• 150 – 2200 min¯¹
• Bed width 135 mm
• EMC level C1
• Frequency 50 Hz

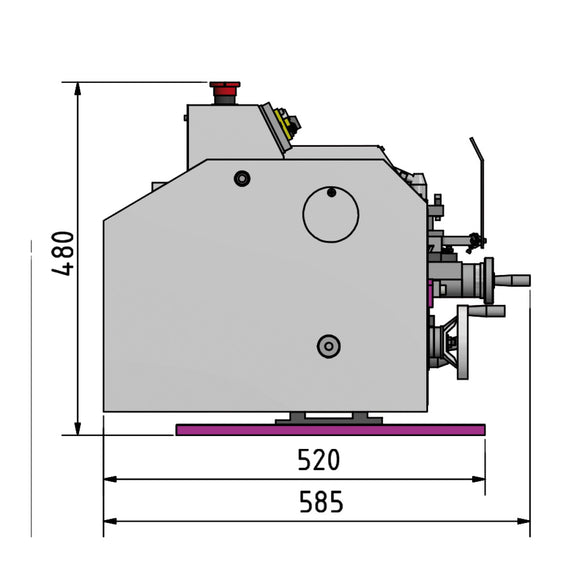

• Height 510 mm
• Imperial pitch 44 – 8 Gg/1"

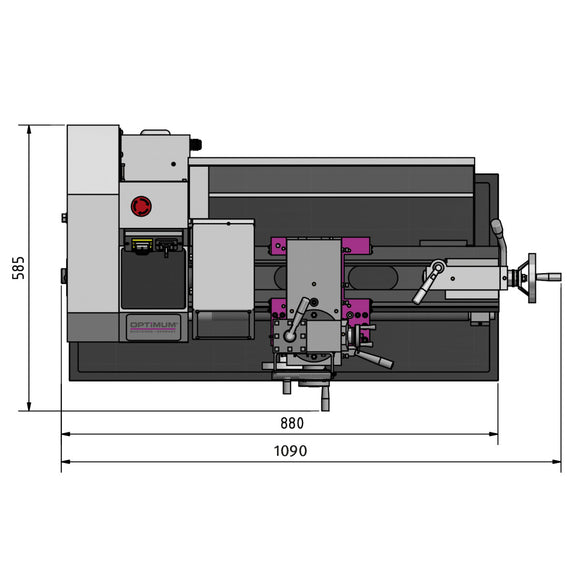

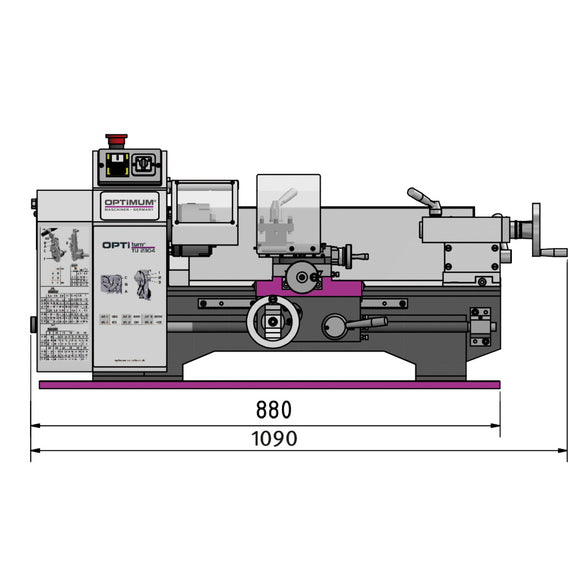

• Length 1090 mm
• Max. height 115 mm
• Max. width 450 mm
• Metric pitch 0,4 – 3,5 mm/rev
• Motor power 0,75 kW
• Net weight 114 kg
• Number of gears 2
• Number of imperial pitches 14
• Number of metric pitches 14
• Spindle bore 20 mm
• Spindle chuck cylindrical Ø 72 mm
• Spindle cone MK 3
• Standard DIN EN 55011
• Supply voltage 230 V
• Swing diameter above machine bed 230 mm
• Swing diameter above planing slide 128 mm
• Tailstock chuck MK 2
• Tailstock quill stroke 70 mm
• Tool holder max. chuck height 14 mm
• Travel carriage saddle 360 mm
• Travel cross slide 120 mm
• Travel upper slide 75 mm
• Width 585 mm

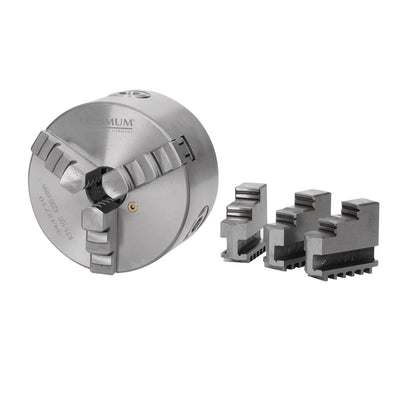

• Three-jaw lathe chuck Ø 100 mm, centrically exciting
• Fixed centering point MK 2 and MK 3
• bulkhead
• chip pan
• Quadruple tool holder
• Change gear set
• operating tool
