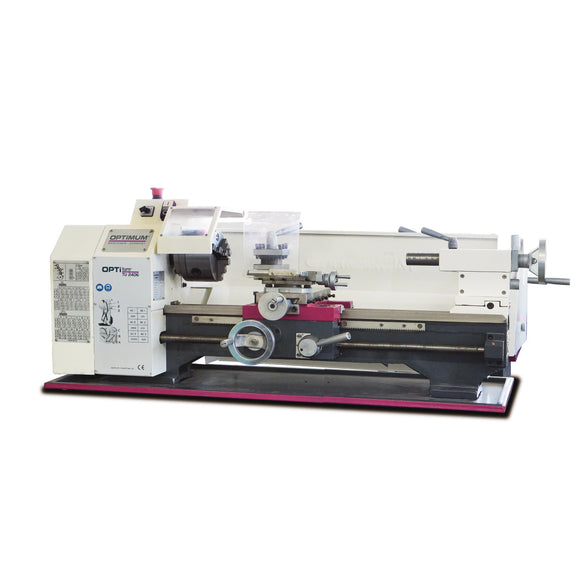

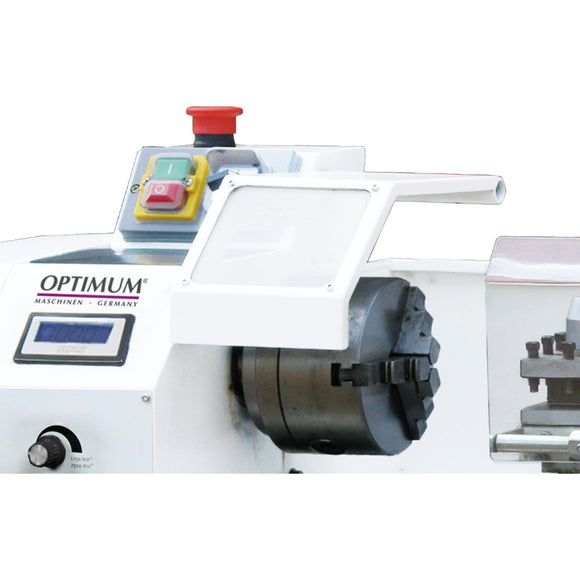

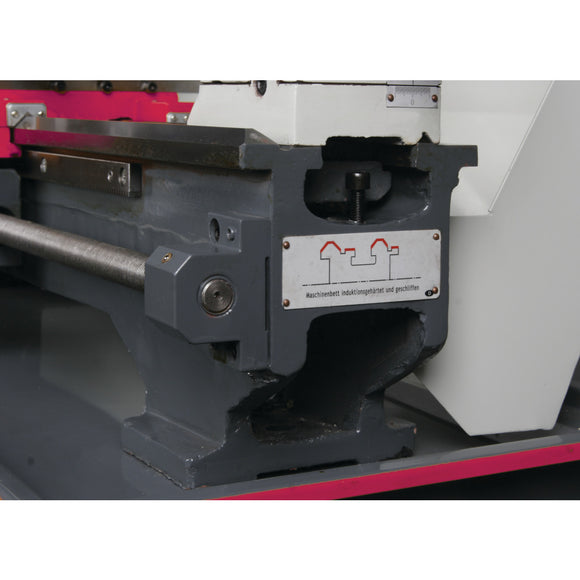

Lathe OPTIturn TU 2406 (230 V)

• 125 – 2000 min¯¹
• Bed width 133 mm
• Frequency 50 Hz

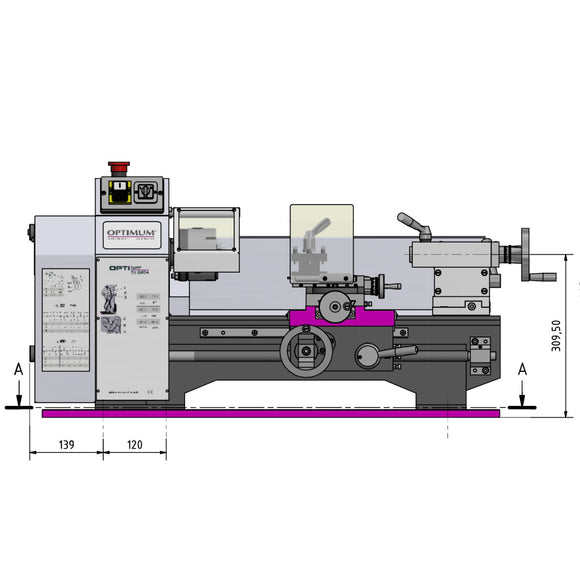

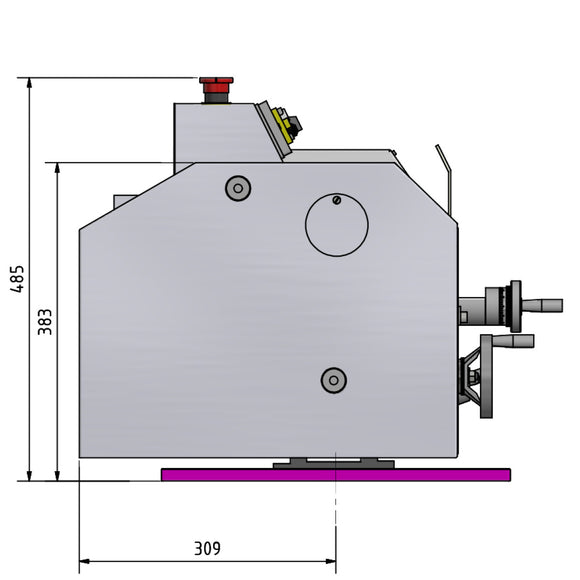

• Height 484 mm
• Imperial pitch 44 – 10 Gg/1"

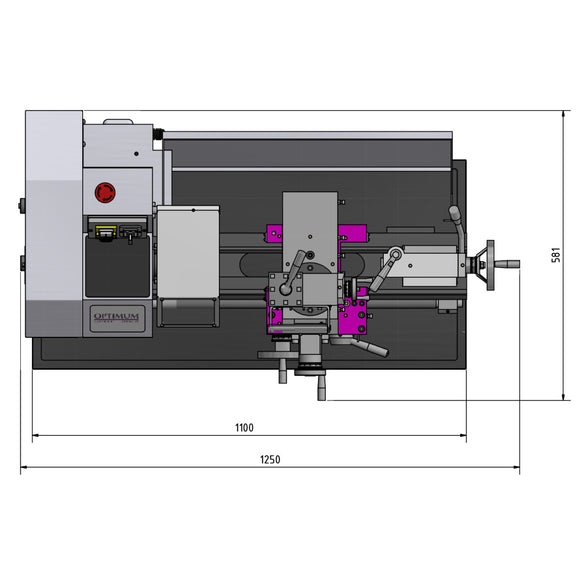

• Length 1250 mm
• Max. height 125 mm
• Max. width 550 mm
• Metric pitch 0,4 – 3,5 mm/rev
• Motor power 0,75 kW
• Net weight 127 kg
• Number of gears 6
• Number of imperial pitches 12
• Number of metric pitches 14
• Spindle bore 21 mm
• Spindle chuck cylindrical Ø 52 mm
• Spindle cone MK 3
• Supply voltage 230 V
• Swing diameter above machine bed 250 mm
• Swing diameter above planing slide 148 mm
• Tailstock chuck MK 2
• Tailstock quill stroke 60 mm
• Tool holder max. chuck height 12 mm
• Travel carriage saddle 550 mm
• Travel cross slide 120 mm
• Travel upper slide 75 mm
• Width 594 mm

• Three-jaw lathe chuck Ø 125 mm,
  centrically exciting
• Fixed centering point MK 2 and MK 3
• bulkhead
• chip pan
• Quadruple tool holder
• Change gear set
• operating tool
