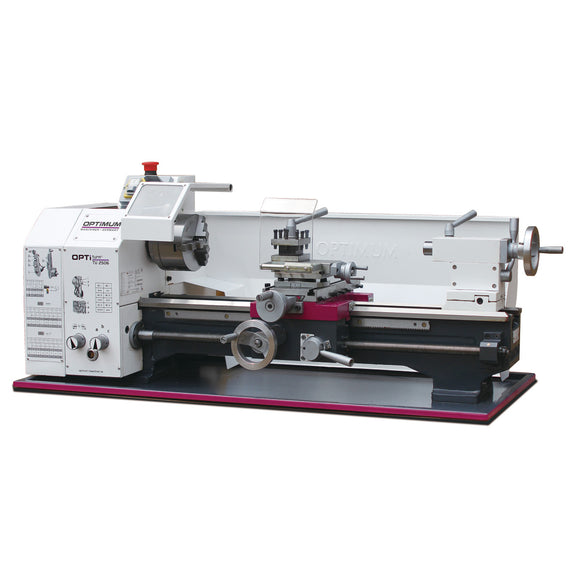

The Optimum OPTIturn TU 2506 is a fully equipped 230 V bench lathe with a hardened and ground Z-axis guideway and a spindle nose concentricity of 0.009 mm or better. Its hardened spindle runs in adjustable precision tapered roller bearings, and the lead screw handles thread cutting and automatic longitudinal turning. You can turn small shafts, bushes and threads accurately, and start work straight after setup because the 3-jaw chuck and change gear set are included.
Key features
- Powerful, maintenance-free motor
- Hardened and ground Z-axis guideway

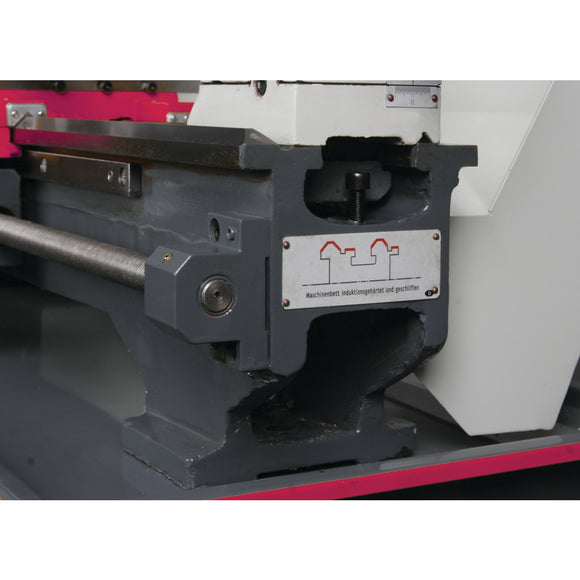

- Heavily ribbed prism bed made of grey cast iron, induction-hardened and precision-ground
- Guaranteed spindle nose concentricity of 0.009 mm or better
- Concentricity on the lathe chuck of 0.04 mm or better
- Hardened main spindle in adjustable precision tapered roller bearings (P5 quality), plus thrust bearing
- Hardened spindle nose with a 26 mm spindle bore
- Lead screw for thread cutting and automatic longitudinal turning, mounted in two sintered bearings
- Rolled trapezoidal spindles
- All guides adjustable with wedge strips
- Handwheels on the carriage with adjustable fine scale of 0.01 mm
- Top slide mounted on the cross slide, with chip protection
- Tailstock adjustable by ±5 mm for taper turning
- Tailstock quill and handwheel with adjustable fine scale of 0.02 mm
- Quick, tool-free tailstock adjustment with a clamping lever

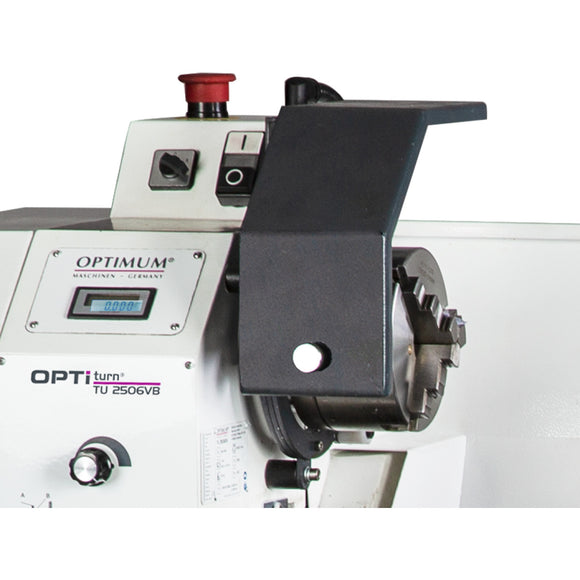

- Right/left rotation switchable on the control panel
- Emergency stop impact switch
- Quadruple tool holder
- 3-jaw lathe chuck and change gear set for thread cutting included as standard
