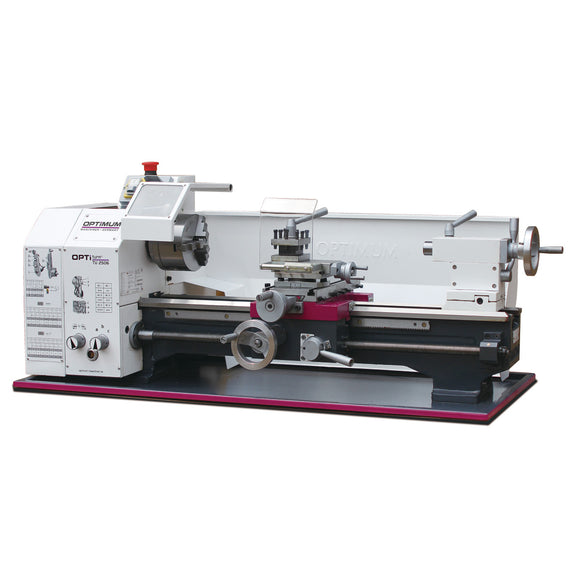

Center lathe OPTIturn TU (400 V).
.
- Precisely
- Powerful, maintenance-free engine
- Hardened and ground Z-axis guideway
- Guaranteed concentricity of the spindle nose ≤ 0. 009 mm
- Concentricity on the lathe chuck ≤ 0. 04 mm
- Lead screw for thread cutting or automatic longitudinal turning
- Leadscrew stored in two sintered bearings
- All guides can be adjusted by wedge strips
- Right / left rotation in the control panel switchable
- Rolled trapezoid spindles
- Thrust bearing
- Tapered roller bearings in P5 quality
- Hardened main spindle mounted in adjustable precision tapered roller bearings
- Hardened spindle nose with Ø 26 mm spindle bore
- Handwheels on the carriage with adjustable fine scale 0. 01 mm
- Upper slide on cross slide slidable
- Chip protection on the upper slide

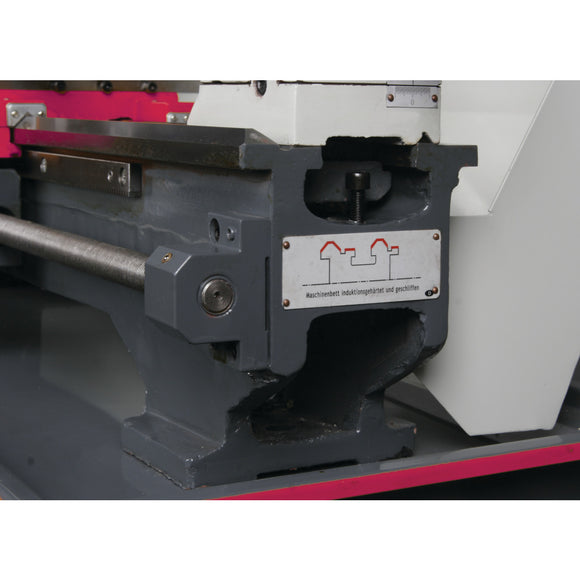

- Heavily ribbed prism bed made of gray cast iron, inductively hardened and precision ground

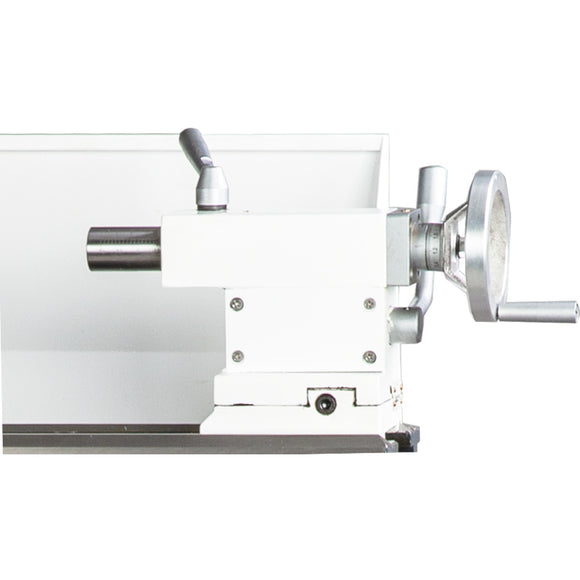

- Tailstock for taper turning ± 5 mm adjustable
- Tailstock quill and handwheel with adjustable fine scale 0. 02 mm
- Quick, easy and tool-free adjustment of the tailstock by a clamping lever
- Emergency stop impact switch
- Quadruple tool holder
- 3-jaw lathe chuck in the standard scope of delivery
- Change gear set in the standard scope of delivery for thread cutting
- Fully equipped, allowing the user to be productive immediately after commissioning

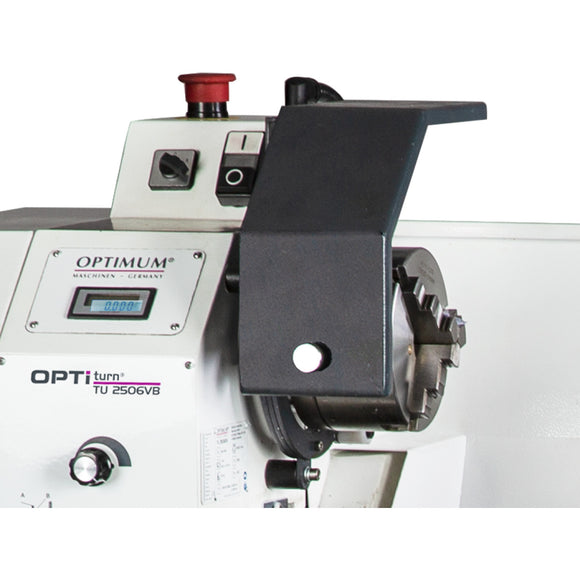

- TU 2506VB: Speed change easily adjustable via potentiometer
.
