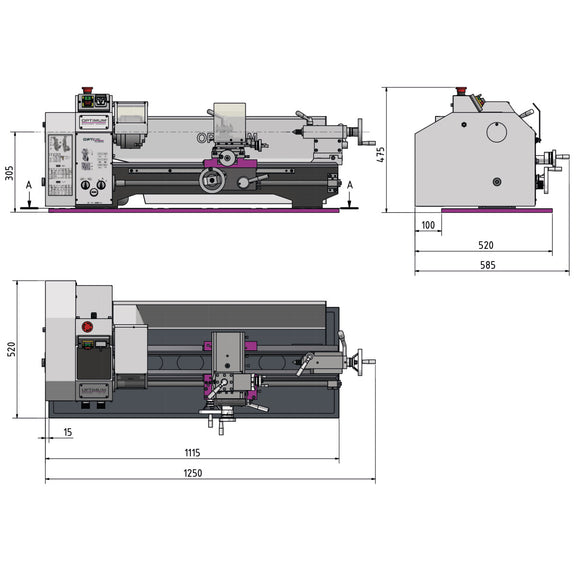

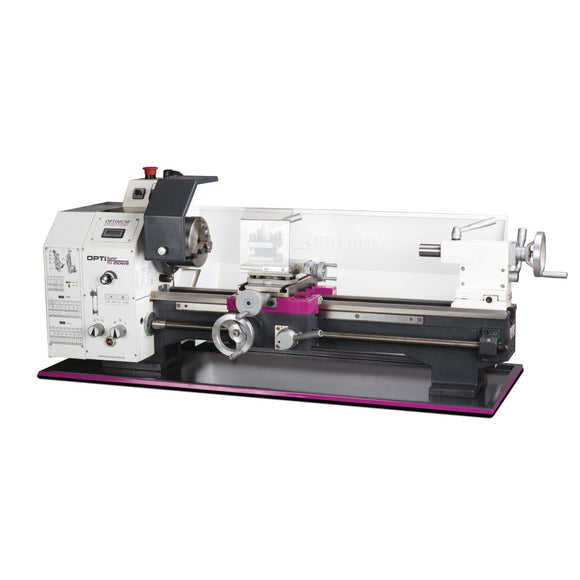

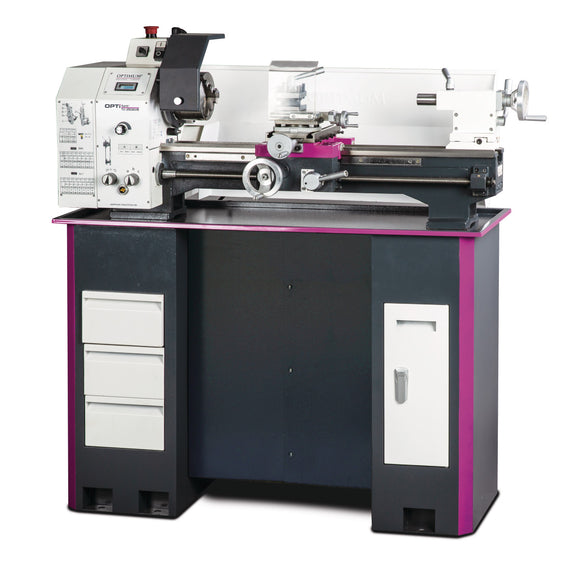

The Optimum OPTIturn TU 2506VB is a fully equipped 230 V bench lathe with variable spindle speed from 150 to 2500 min⁻¹, set with a potentiometer. It has a hardened and ground Z-axis guideway and a spindle nose concentricity of 0.009 mm or better, so you can match the speed to each material and diameter and turn small shafts, bushes and threads accurately. The 3-jaw chuck, change gear set and HSS lathe tool are included, so you can start work straight after setup.
Key features
- Speed adjustable with a potentiometer, 150 - 2500 min⁻¹
- Powerful, maintenance-free motor
- Hardened and ground Z-axis guideway

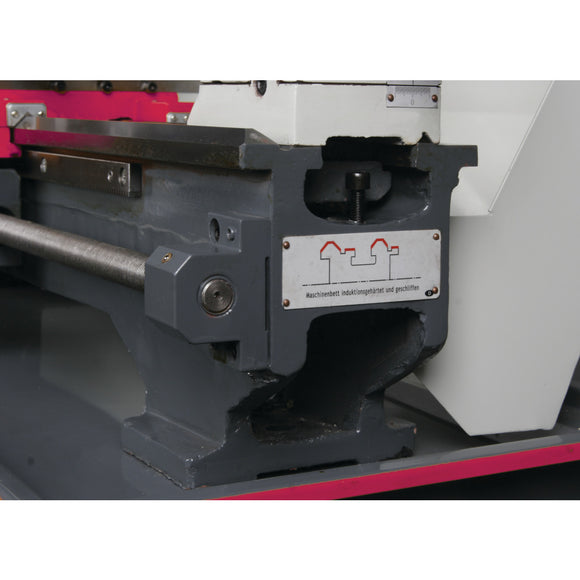

- Heavily ribbed prism bed made of grey cast iron, induction-hardened and precision-ground
- Guaranteed spindle nose concentricity of 0.009 mm or better
- Concentricity on the lathe chuck of 0.04 mm or better
- Hardened main spindle in adjustable precision tapered roller bearings (P5 quality), plus thrust bearing
- Hardened spindle nose with a 26 mm spindle bore
- Lead screw for thread cutting and automatic longitudinal turning, mounted in two sintered bearings
- Rolled trapezoidal spindles
- All guides adjustable with wedge strips
- Handwheels on the carriage with adjustable fine scale of 0.01 mm
- Top slide mounted on the cross slide, with chip protection

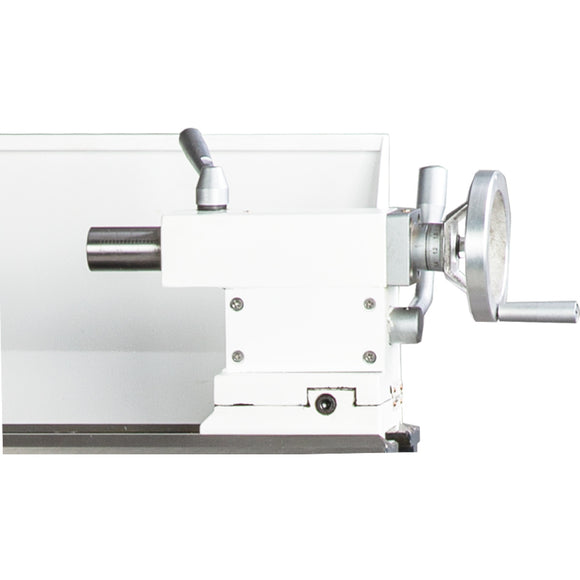

- Tailstock adjustable by ±5 mm for taper turning
- Tailstock quill and handwheel with adjustable fine scale of 0.02 mm
- Quick, tool-free tailstock adjustment with a clamping lever

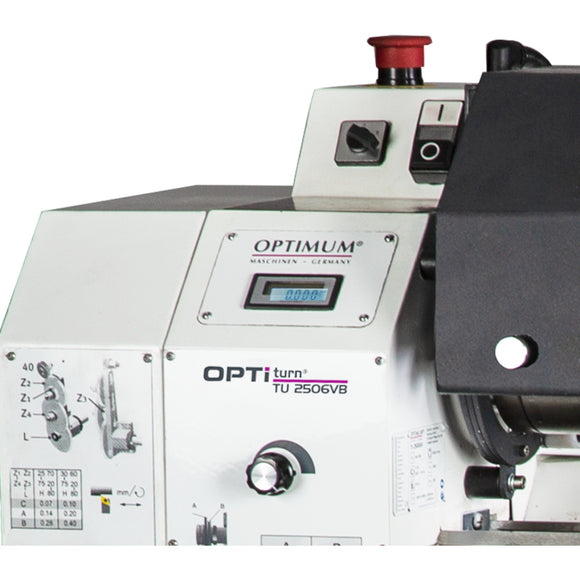

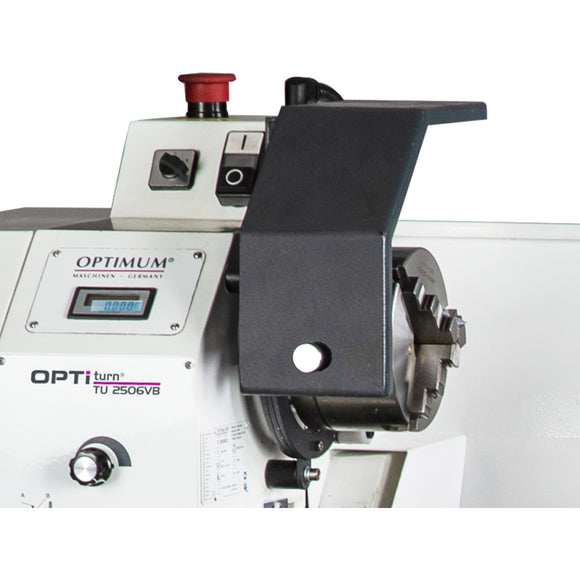

- Right/left rotation switchable on the control panel
- Emergency stop impact switch
- Quadruple tool holder
- 3-jaw lathe chuck and change gear set for thread cutting included as standard
