Guide and traction spindle lathes OPTIturn TU 3008

• 150 – 2000 min¯¹
• Bed width 180 mm
• Flat feed range 0,01 – 0,1 mm/rev
• Frequency 50 Hz

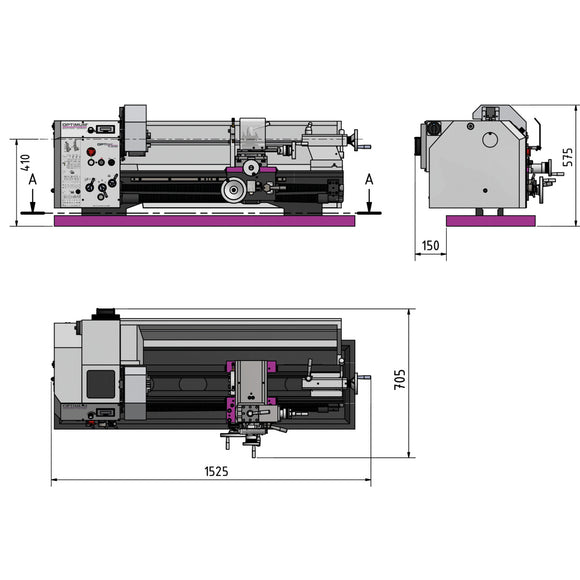

• Height 575 mm
• Imperial pitch 56 – 8 Gg/1"
• Length 1525 mm
• Longitudinal feed range 0,085 – 0,832 mm/rev
• Max. height 158 mm
• Max. width 800 mm
• Metric pitch 0,2 – 3,5 mm/rev
• Motor power 1,1 kW
• Net weight 226 kg
• Number of flat feeds 9
• Number of gears 6
• Number of imperial pitches 21
• Number of longitudinal feeds 9
• Number of metric pitches 18
• Spindle bore 38 mm
• Spindle chuck Camlock DIN ISO 702-2 No. 4
• Spindle cone MT5
• Supply voltage 400 V
• Swing diameter above machine bed 310 mm
• Swing diameter above planing slide 190 mm
• Tailstock chuck MK 3
• Tailstock quill diameter 38 mm
• Tailstock quill stroke 70 mm
• Tool holder max. chuck height 18 mm
• Travel carriage saddle 600 mm
• Travel cross slide 150 mm
• Travel upper slide 65 mm
• Width 705 mm

• Three-jaw lathe chuck Ø 160 mm, centric clamping
• Fixed centering point MK 3 and MK 5
• Quadruple steel holder 25 mm
• Bulkhead
• Chip pan
• Change gear set
• Operating tool
