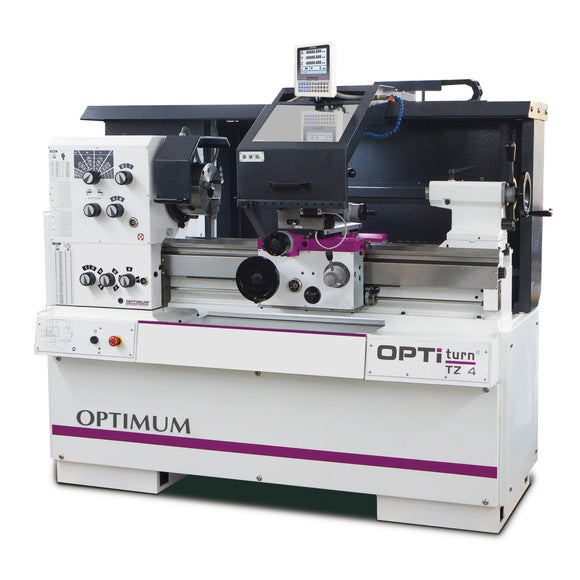

Precision Center and Turning Center Lathe OPTIturn TZ 4

• 45 – 1800 min¯¹
• Bed width 260 mm
• Chuck passage diameter 52 mm
• Cooling lubricant system coolant pump output 0.125 kW
• Diametrical pitch 3 – 200 Gg/π
• Digital position indicator DPA 32
• Flat feed range 0,0133 – 0,9321 mm/rev
• Frequency 50 Hz

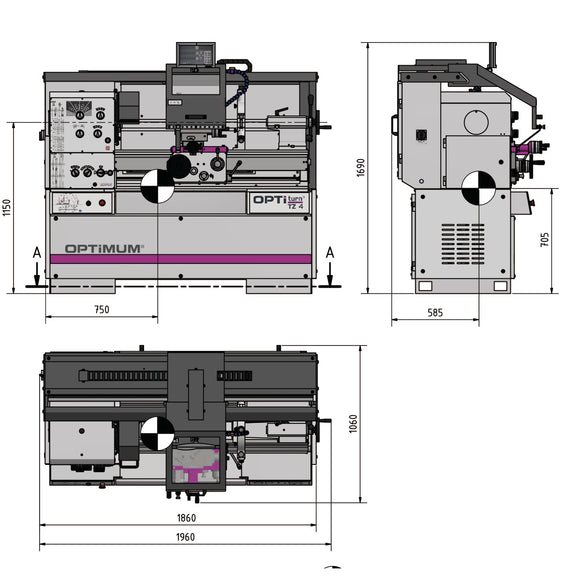

• Height 1690 mm
• Imperial pitch 80 – 1 Gg/1"
• Length 1960 mm
• Longitudinal feed range 0,0263 – 1,8416 mm/rev
• Max. height 200 mm
• Max. width 800 mm
• Metric pitch 0,2 – 14 mm/rev
• Modular thread pitch 0,1 – 7 mm/rev
• Motor power 3 / 4,5 kW
• Net weight 1250 kg
• Number of diametrical pitches 33
• Number of flat feeds 48
• Number of gears 16
• Number of imperial pitches 42
• Number of longitudinal feeds 48
• Number of metric pitches 26
• Number of modular thread pitches 44
• Spindle bore 52 mm
• Spindle chuck DIN ISO 702-1 No. 5 Form A2
• Spindle cone MT 6
• Supply voltage 400 V
• Swing diameter above machine bed 400 mm
• Swing diameter above planing slide 245 mm
• Tailstock chuck MK 3
• Tailstock quill diameter 50 mm
• Tailstock quill stroke 110 mm
• Total rated value 6 kW
• Travel carriage saddle 800 mm
• Travel cross slide 212 mm
• Travel upper slide 112 mm
• Width 1060 mm

• Fixed bezel passage Ø 10 - 130 mm
• Running bezel passage Ø 10 - 100 mm
• Reduction sleeve MK3 and MK6
• Fixed centering point MK3
• Quick change steel holder 5-B
• Steel holder 25 x 120 type D for square chisels
• Change wheels set for metric thread
• Initial machine filling with quality oil
• operating tool
• Integrated cooling device
