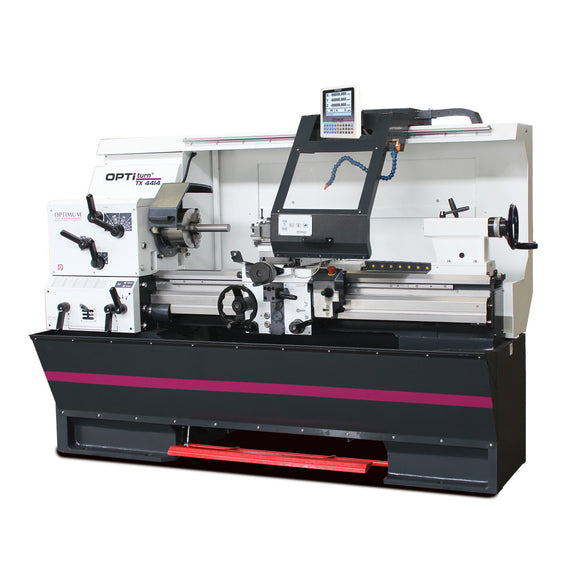

Lathe OPTIturn TX 4414

• 40 – 2200 min¯¹
• Bed width 300 mm
• Cooling lubricant system coolant pump output 100 W
• Diametrical pitch 0,25 - 3,75 mm x π

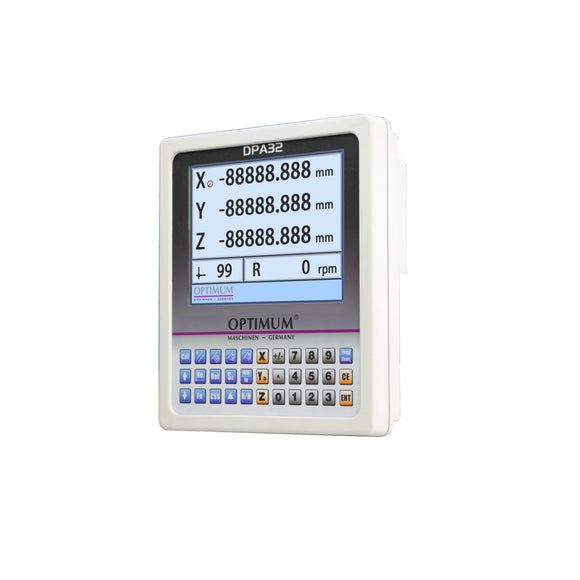

• Digital position indicator DPA 32
• Flat feed range 0,025 – 0,376 mm/rev
• Frequency 50 Hz

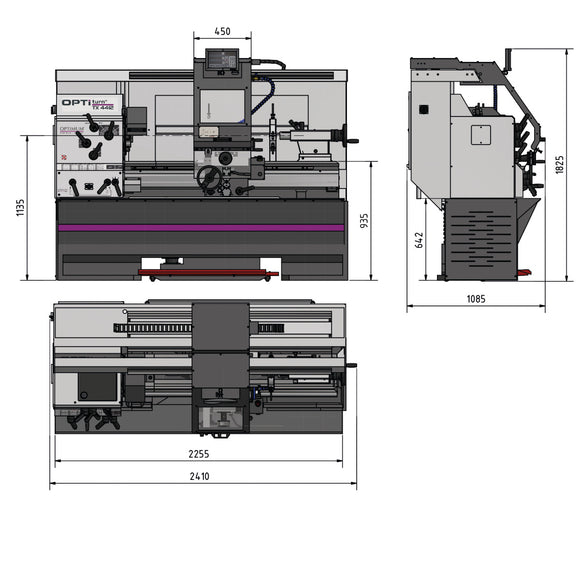

• Height 1825 mm
• Imperial pitch 60 – 4 Gg/Zoll
• Length 2410 mm
• Longitudinal feed range 0,05 – 0,752 mm/rev
• Max. height 220 mm
• Max. width 1280 mm
• Metric pitch 0,5 – 7,5 mm/rev
• Modular thread pitch 120 – 8 Gg/π
• Motor power 5.5 kW
• Net weight 2030 kg
• Number of diametrical pitches 44
• Number of flat feeds 44
• Number of gears 12 Steps
• Number of imperial pitches 44
• Number of longitudinal feeds 44
• Number of metric pitches 44
• Number of modular thread pitches 44
• Spindle bore 52 mm
• Spindle chuck Camlock DIN ISO 702-2 No. 6
• Spindle cone MT 6
• Supply voltage 400 V
• Swing diameter above machine bed 440 mm
• Swing diameter above planing slide 250 mm
• Tailstock chuck MT 4
• Tailstock quill diameter 58 mm
• Tailstock quill stroke 180 mm
• Tool holder SWH 5-B
• Total rated value 6.1 kW
• Travel carriage saddle 950 mm
• Travel cross slide 290 mm
• Travel upper slide 153 mm
• Width 1085 mm

• Three-jaw lathe chuck Ø 200 mm Camlock No. 6
• Two non-running centers MK3 and MK5
• Adapter MK6-MK5
• Quick change steel holder SWH 5-B
• Machine initial filling with quality oil
• Operating tool
