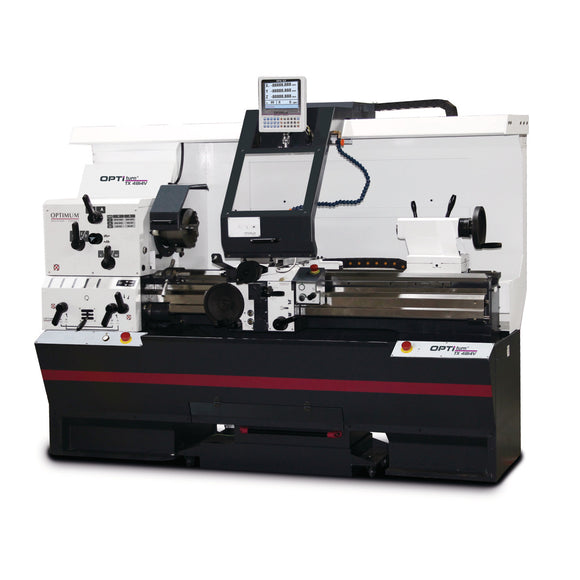

Precision center lathe and draw spindle lathe OPTIturn TX 4814V

• 20 – 2500 min¯¹
• Bed width 300 mm
• Flat feed range 0,025 – 0,376 mm/rev
• Frequency 50 Hz
• Height 1740 mm
• Length 2288 mm
• Longitudinal feed range 0,05 – 0,752 mm/rev
• Max. height 240 mm
• Max. width 1260 mm
• Metric pitch 0,5 – 7,5 mm/rev
• Motor power 5.5 kW
• Net weight 1700 kg
• Number of flat feeds 44
• Number of gears 6 Steps
• Number of longitudinal feeds 44
• Number of metric pitches 44
• Spindle bore 80 mm
• Spindle chuck Camlock DIN ISO 702-2 No. 8
• Spindle cone MT 7
• Supply voltage 400 V
• Swing diameter above machine bed 480 mm
• Travel cross slide 290 mm
• Travel upper slide 153 mm
• Width 1050 mm

• Operating tool
• Initial machine filling with quality oil
• Three-jaw lathe chuck Ø 200 mm
• Camlock no. 8
• Two non-rotating centers MT6 and MT5
• Quick-change holder SWH 5-B
