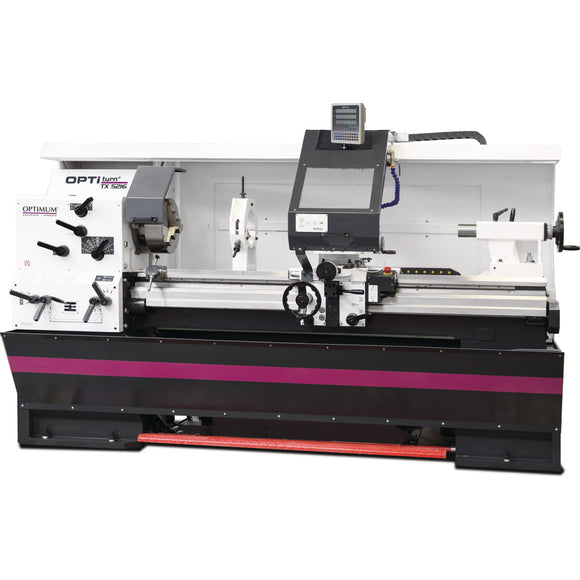

Conventional Centre Lathe OPTIturn TX 5216 - DPA 32-3

• 30 – 1500 min¯¹
• Bed width 350 mm
• Cooling lubricant system coolant pump output 100 W
• Diametrical pitch 120 – 4 Gg/π

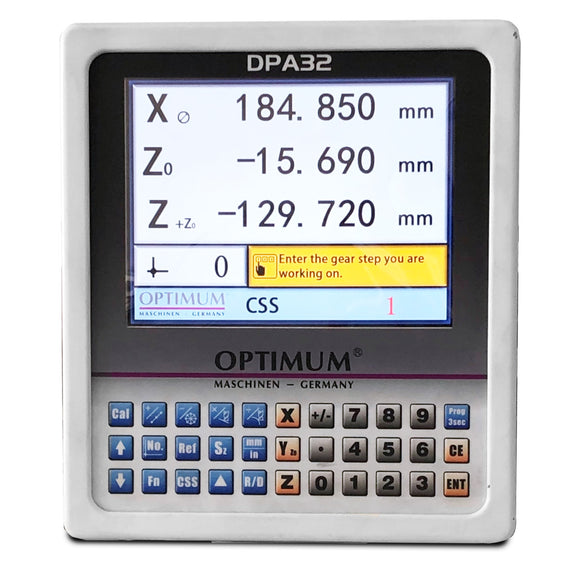

• Digital position indicator DPA 32
• Flat feed range 0,025 – 0,75 mm/rev
• Frequency 50 Hz
• Height 2217 mm
• Imperial pitch 60 – 2 Gg/1"
• Length 3016 mm
• Longitudinal feed range 0,05 – 1,5 mm/rev
• Max. height 260 mm
• Max. width 1600 mm
• Metric pitch 0,5 - 15 mm/rev
• Modular thread pitch 0,25 – 7,5 mm x π
• Motor power 5.5 kW
• Net weight 2470 kg
• Number of diametrical pitches 55
• Number of flat feeds 55
• Number of gears 12
• Number of imperial pitches 55
• Number of longitudinal feeds 55
• Number of metric pitches 55
• Number of modular thread pitches 55
• Spindle bore 80 mm
• Spindle chuck Camlock DIN ISO 702-2 No. 8
• Spindle cone MT 7
• Supply voltage 400 V
• Swing diameter above machine bed 520 mm
• Swing diameter above planing slide 324 mm
• Tailstock chuck MT5
• Tailstock quill diameter 72 mm
• Tailstock quill stroke 180 mm
• Total rated value 6.1 kW
• Travel carriage saddle 1400 mm
• Travel cross slide 350 mm
• Travel upper slide 170 mm
• Turning length in bed bridge 780 mm
• Width 1270 mm

• Three jaw chucks
• Reduction sleeve MK 7 / MK 5
• Fixed center point MK 5 long
• Fixed centering point MK 5 short

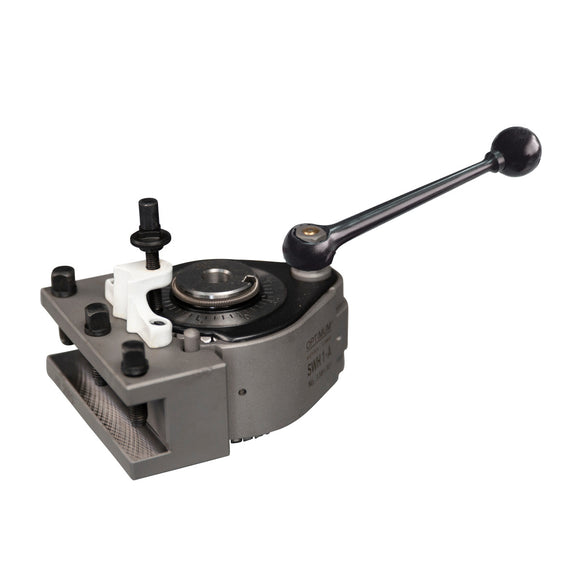

• Quick change steel holder SWH 7-C (TX 5216)
• Quick change steel holder SWH 7-C (TX 6222)
• Steel holder 25 x 120 type D for square chisels
• operating tool
