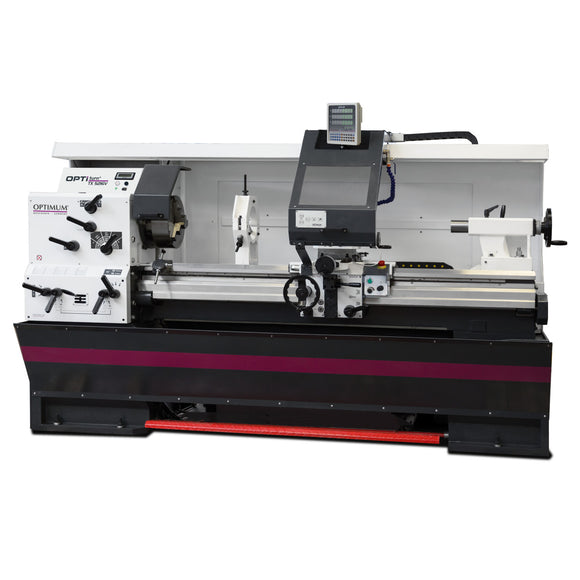

Precision guide and drawbar turning machine OPTIturn TX 5216V DPA32-3

• 12 – 1800 min¯¹
• Bed width 350 mm
• Cooling lubricant system coolant pump output 60 W
• Diametrical pitch 120 – 4 Gg/π

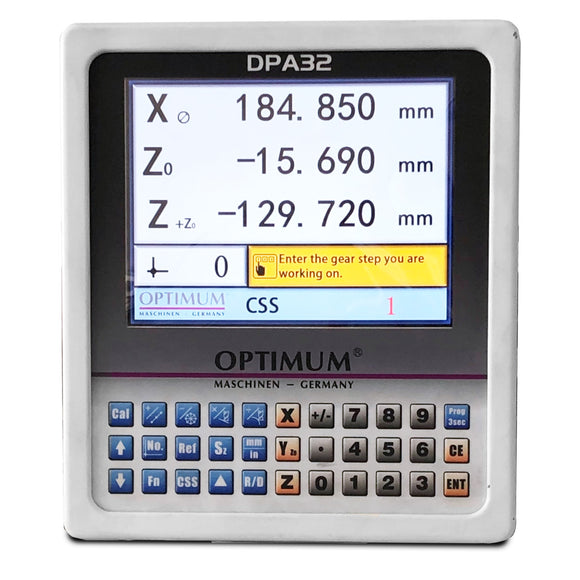

• Digital position indicator DPA 32
• Flat feed range 0,025 – 0,75 mm/rev
• Frequency 50 Hz
• Height 1930 mm
• Imperial pitch 60 – 2 Gg/1"
• Length 2925 mm
• Longitudinal feed range 0,05 – 1,5 mm/rev
• Max. height 260 mm
• Max. width 1600 mm
• Metric pitch 0,5 - 15 mm/rev
• Modular thread pitch 0,25 – 7,5 mm x π
• Motor power 7.5 kW
• Net weight 2470 kg
• Number of diametrical pitches 55
• Number of flat feeds 55
• Number of gears 2 x 3 Steps
• Number of imperial pitches 55
• Number of longitudinal feeds 55
• Number of metric pitches 55
• Number of modular thread pitches 55
• Spindle bore 80 mm
• Spindle chuck Camlock DIN ISO 702-2 No. 8
• Spindle cone MT 7
• Supply voltage 400 V
• Swing diameter above machine bed 520 mm
• Swing diameter above planing slide 324 mm
• Tailstock chuck MK 5
• Tailstock quill diameter 72 mm
• Tailstock quill stroke 180 mm
• Tool holder SWH 7C
• Total rated value 5.5 kW
• Travel carriage saddle 1400 mm
• Travel cross slide 340 mm
• Travel upper slide 170 mm
• Width 1195 mm

• Three-jaw lathe chucks Ø 315 mm No. 8
• Fixed center point MT 5, long
• Fixed center point MT 5, short
• Operating tool
• Initial machine filling with quality oil
• Quick-change steel holder SWH 7C
• Steel holder for square chisels 32 x 130 type D for square chisels 25 mm
• Reducing sleeve MT 7 / MT 5
