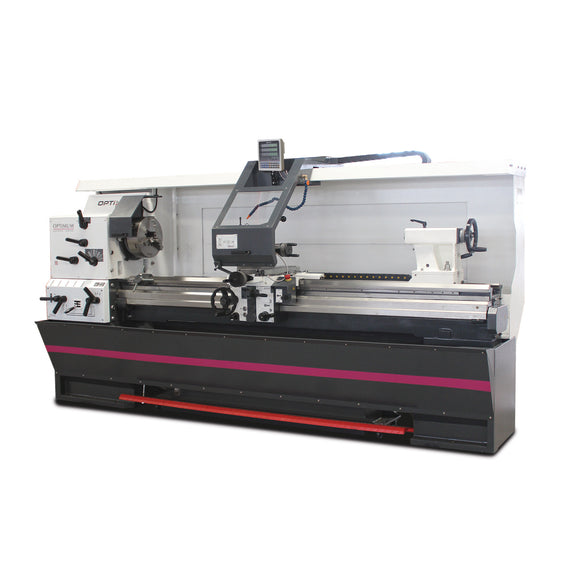

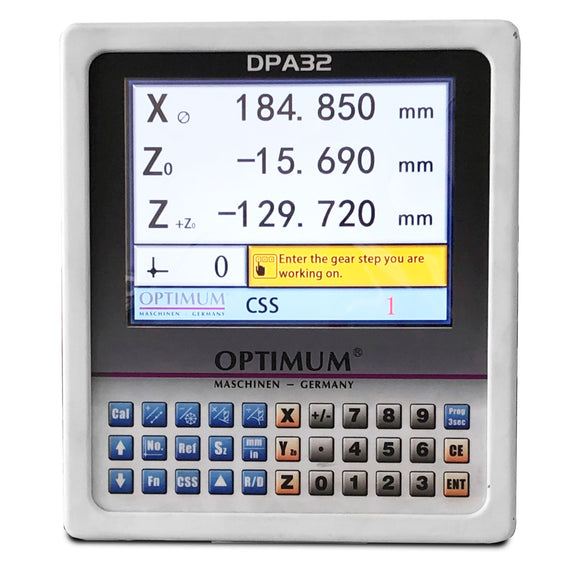

Precision guide and drawbar turning machine OPTIturn TX 6222 - DPA 32

• 40 – 1650 min¯¹
• Bed width 350 mm
• Cooling lubricant system coolant pump output 100 W
• Diametrical pitch 120 – 4 Gg/π
• Flat feed range 0,025 – 0,75 mm/rev
• Frequency 50 Hz
• Height 1830 mm
• Imperial pitch 60 – 2 Gg/1"
• Length 3550 mm
• Longitudinal feed range 0,05 – 1,5 mm/rev
• Max. height 310 mm
• Max. width 2200 mm
• Metric pitch 0,5 - 15 mm/rev
• Modular thread pitch 0,25 – 7,5 mm x π
• Motor power 7,5 kW
• Net weight 2800 kg
• Number of diametrical pitches 55
• Number of flat feeds 55
• Number of gears 12
• Number of imperial pitches 55
• Number of longitudinal feeds 55
• Number of metric pitches 55
• Number of modular thread pitches 55
• Spindle bore 105 mm
• Spindle chuck Camlock DIN ISO 702-2 No. 8
• Spindle cone Ø 113 (cone 1:20) mm
• Supply voltage 400 V
• Swing diameter above machine bed 620 mm
• Swing diameter above planing slide 424 mm
• Tailstock chuck MT5
• Tailstock quill diameter 72 mm
• Tailstock quill stroke 180 mm
• Total rated value 8.5 kW
• Travel carriage saddle 2000 mm
• Travel cross slide 350 mm
• Travel upper slide 170 mm
• Turning length in bed bridge 880 mm
• Width 1200 mm

• Operating tool
• Initial machine filling with quality oil
• Three-jaw lathe chuck Ø 315 mm Camlock no. 8
• Two non-rotating centers MK5 (short/long)

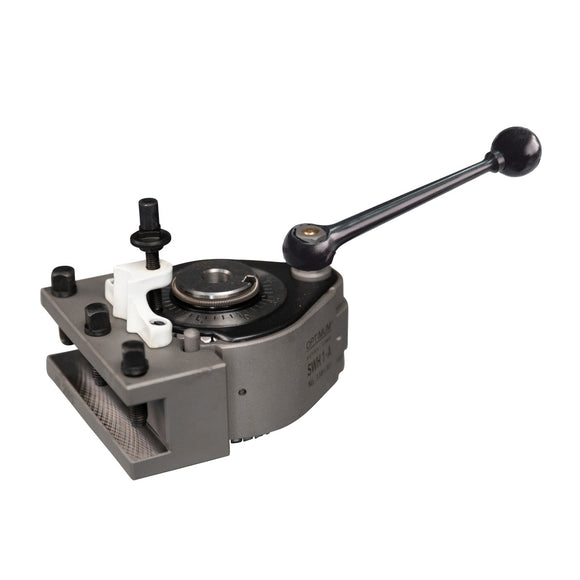

• Quick-change toolholder SWH 7-C
• Steel holder for square chisel 32 x 130 type D
• Adapter Ø 113 mm-MK5
