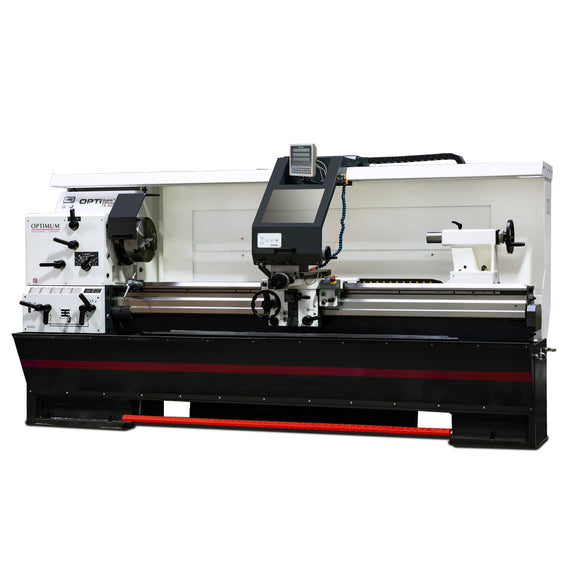

Precision guide and drawbar turning machine OPTIturn TX 6222V

• 14 – 1800 min¯¹
• Cooling lubricant system coolant pump output 0,1 kW
• Diametrical pitch 120 – 4 Gg/π

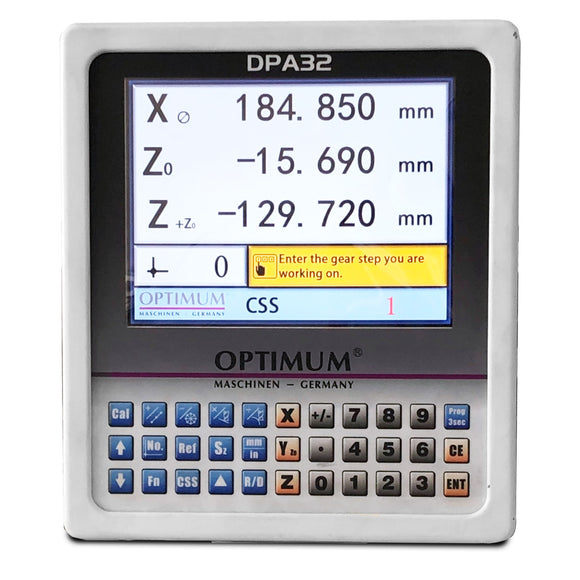

• Digital position indicator DPA 32
• Feed motor drive power 0.55 kW
• Flat feed range 0,025 – 0,75 mm/rev
• Frequency 50 Hz
• Height 1905 mm
• Imperial pitch 60 – 2 Gg/1"
• Leading spindle pitch 6 mm

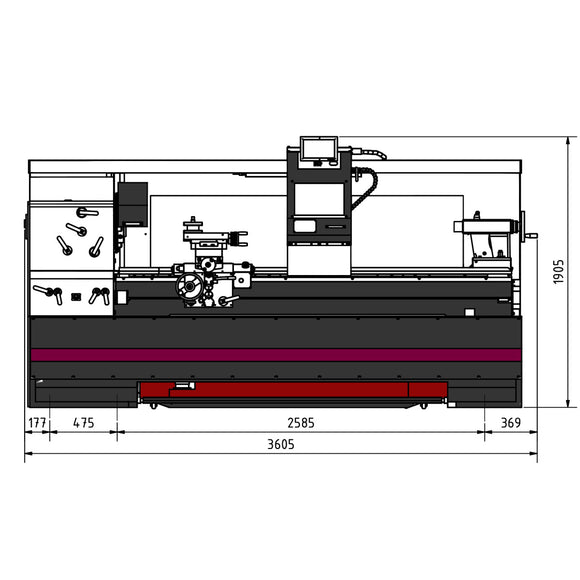

• Length 3605 mm
• Longitudinal feed range 0,05 – 1,5 mm/rev
• Max. height 310 mm
• Max. width 2225 mm
• Metric pitch 0,5 - 15 mm/rev
• Modular thread pitch 0,25 – 7,5 mm x π
• Motor power 11 kW
• Net weight 2800 kg
• Number of diametrical pitches 55
• Number of flat feeds 55
• Number of gears 2 x 3 Steps
• Number of imperial pitches 55
• Number of longitudinal feeds 55
• Number of metric pitches 55
• Number of modular thread pitches 55
• Spindle bore 105 mm
• Spindle chuck Camlock DIN ISO 702-2 No. 8
• Spindle cone MT 7
• Supply voltage 400 V
• Swing diameter above longitudinal slide 580 mm
• Swing diameter above machine bed 620 mm
• Swing diameter above planing slide 424 mm
• Swing diameter in bed bridge 880 mm
• Tailstock chuck MK 5
• Tailstock quill diameter 72 mm
• Tailstock quill stroke 180 mm
• Tool holder SWH 7-C
• Total rated value 12 kW
• Travel carriage saddle 2000 mm
• Travel cross slide 350 mm
• Travel upper slide 170 mm
• Turning length in bed bridge 231 mm
• Width 1739 mm

• Three-jaw lathe chuck Ø 315 mm no. 8
• Non-moving centre point MK 5 long
• Non-moving centre point MK 5 short
• Quick-change steel holder SWH 7-C
• Steel holder for square chiselel 32 x 130 type D for square chisel 25 mm
• Initial machine filling with quality oil
• Reducing sleeve MK 7 / MK 5
• Operating tool
