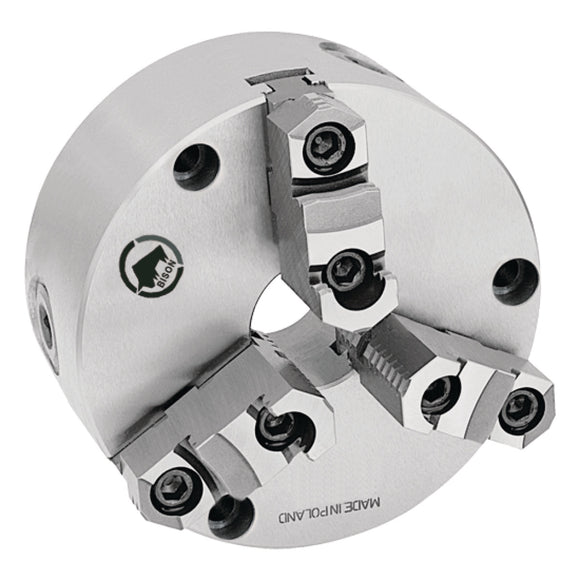

Three-jaw lathe chuck cast BISON Ø 160 mm DIN 6350 A2-4

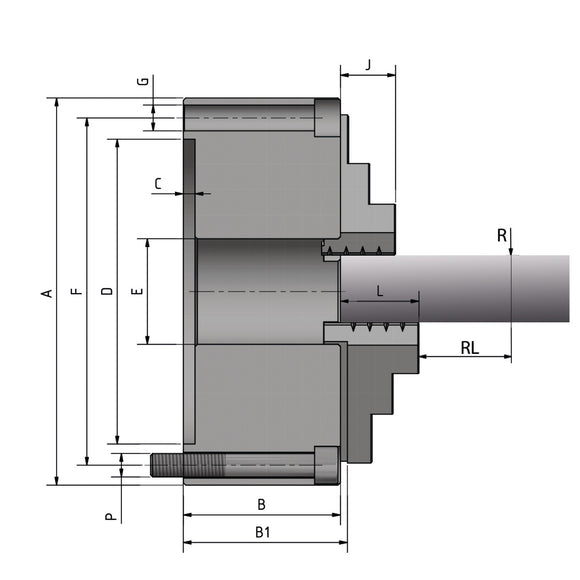

• B1 69.3 mm
• Bore spacing F 140 mm
• Centering depth C 4 mm
• Centering diameter D 125 mm
• Chuck diameter A 160 mm
• Culvert E 42 mm
• Height without jaws B 64.5 mm
• Jaw width J 32 mm
• L 43 mm
• Mounting thread G 3 x M10
• Net weight 8 kg
• Rotation Speed 3600 min¯¹

• Chuck key
• Hard one-piece internal chuck jaws
• Hard one-piece external chuck jaws
