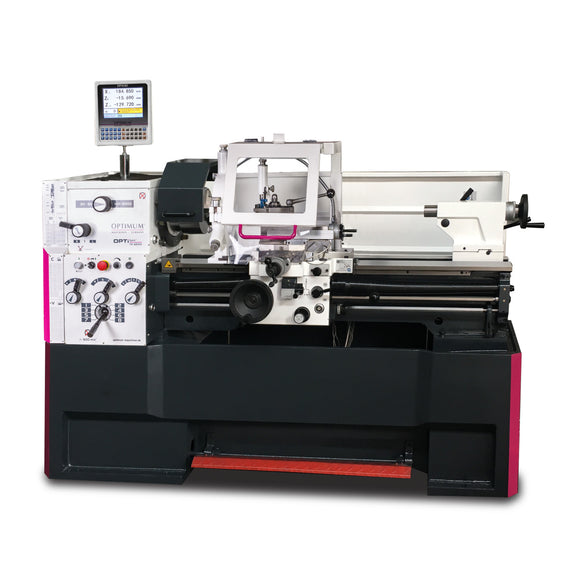

Guide and traction spindle lathes OPTIturn TH 4210

• 45 – 1800 min-1
• Bed width 250 mm
• Cooling lubricant system coolant pump output 100 W
• Diametrical pitch 8 – 44
• Flat feed range 0,025 – 0,85 mm/rev
• Frequency 50 Hz
• Height 1375 mm
• Imperial pitch 72 – 2 Gg/1"
• Length 1940 mm
• Longitudinal feed range 0,05 – 1,7 mm/rev
• Max. height 210 mm
• Max. width 1000 mm
• Metric pitch 0,2 – 14 mm/rev
• Modular thread pitch 0,3 – 3,5 mm/rev
• Motor power 4,5 kW
• Net weight 1160 kg
• Number of diametrical pitches 21
• Number of flat feeds 17
• Number of gears 16
• Number of imperial pitches 45
• Number of longitudinal feeds 17
• Number of metric pitches 39
• Number of modular thread pitches 18
• Spindle bore 52 mm

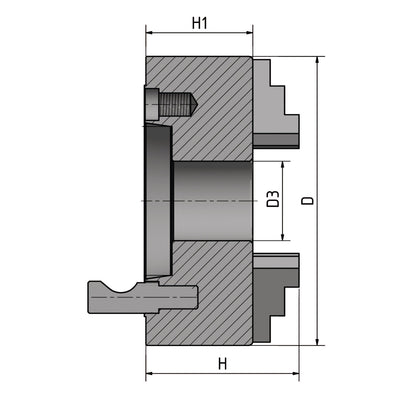

• Spindle chuck Camlock DIN ISO 702-2 No. 6
• Spindle cone MT 6
• Supply voltage 400 V
• Swing diameter above machine bed 420 mm
• Swing diameter above planing slide 250 mm
• Swing diameter in bed bridge 590 mm

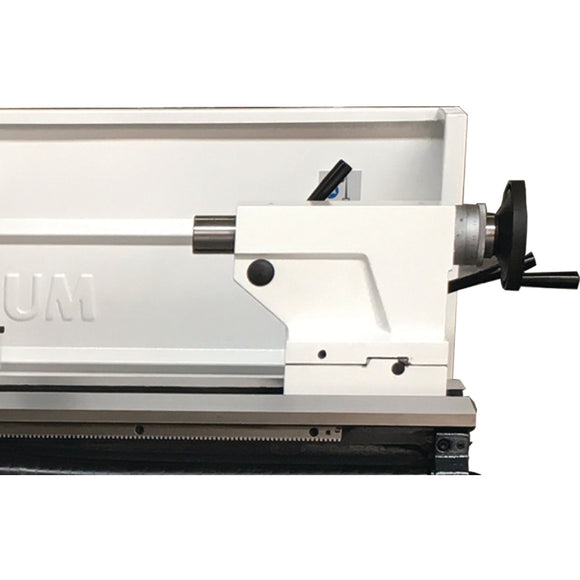

• Tailstock chuck MT 4
• Tailstock quill diameter 50 mm
• Tailstock quill stroke 120 mm
• Tool holder max. chuck height 20 mm
• Total rated value 4.6 kW
• Travel X axis 140 mm
• Travel Y axis 230 mm
• Travel carriage saddle 780 mm
• Travel cross slide 230 mm
• Travel upper slide 140 mm
• Turning length in bed bridge 260 mm
• Width 915 mm

• Fixed bezel passage Ø 15 - 145 mm
• Running bezel passage Ø 10 - 75 mm

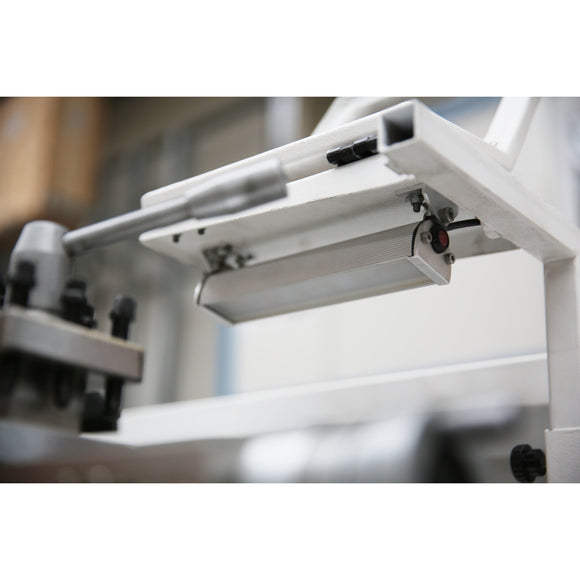

• LED machine light
• Reduction sleeve MK 6 / MK 4
• Fixed centering point MK 4
• Change gear set
• Position stop with fine adjustment
• Initial machine filling with quality oil
• operating tool

• Quadruple steel holder max. 20 mm

• Quick change steel holder 5-B
• Steel holder 25 x 120 type D for square chisels
