Conventional Centre Lathe OPTIturn TH 4210V

€24.304,80 EUR

Tax includedShipping calculated at checkout

SKU: 3462060 Barcode: 4030635033292

14 Day
Return Policy
Warranty
12 months
Fast
Delivery

Available on backorder ⓘ

Contact us about this product

Paying with a business card? Please contact our manager, who will assist you with your purchase | +353 (0) 9064 32000

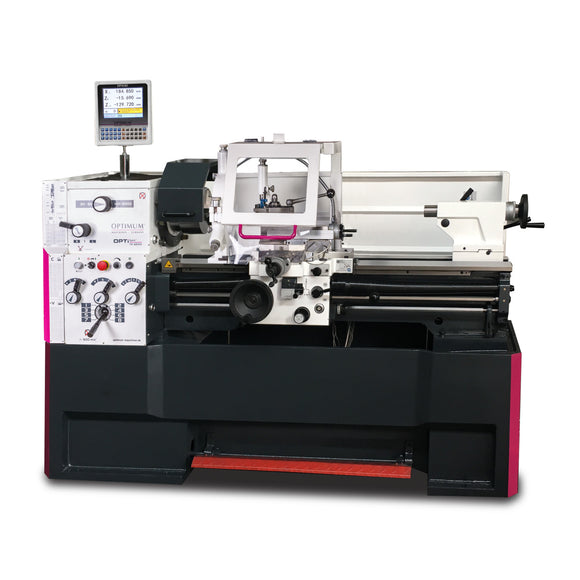

Conventional Centre Lathe OPTIturn TH 4210V.
  • Hardened and ground Z-axis guideway
  • Spindle mount Camlock DIN ISO 702-2 No. 6
  • Precisely crafted sled
  • Handwheels with adjustable fine scale 0. 02 mm
  • All guides can be adjusted by wedge strips
  • Adjustment range upper slide ± 90 °
  • Guaranteed concentricity of the spindle nose better than 0. 015 mm
  • Main spindle running in oil bath
  • Gear wheels smooth, hardened and ground with 2 adjustable precision tapered roller bearings
  • Handwheels decoupled and tested according to EN
  • Two-channel right-left switch tested to EN
  • Switch with life cycle calculation, tested according to EN ISO
  • All metric pitches in the range of 0.
  • 30 – 3000 min-1
  • Bed width 250 mm
  • Cooling lubricant system coolant pump output 100 W
  • Diametrical pitch 8 – 44

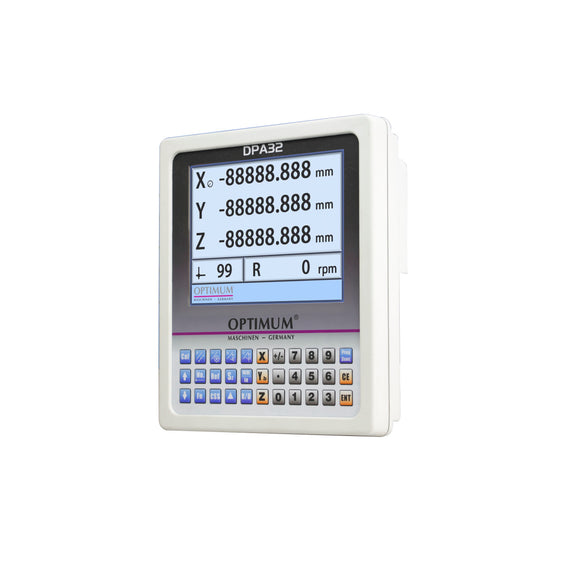

  • Digital position indicator DPA 32
  • EMC level C3
  • Flat feed range 0,025 – 0,85 mm/rev
  • Frequency 50 Hz

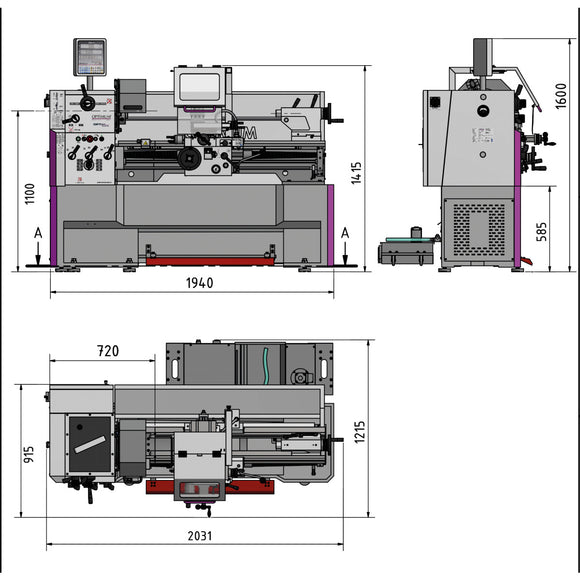

  • Height 1415 mm
  • Imperial pitch 72 – 2 Gg/1"
  • Length 2031 mm
  • Longitudinal feed range 0,05 – 1,7 mm/rev
  • Max. height 210 mm
  • Max. height ca. 1600 mm
  • Max. width 1000 mm
  • Max. width/depth ca. 1215 mm
  • Metric pitch 0,2 – 14 mm/rev
  • Modular thread pitch 0,3 – 3,5 mm/rev
  • Motor power 5.5 kW
  • Net weight 1162 kg
  • Number of diametrical pitches 21
  • Number of flat feeds 17
  • Number of gears 2
  • Number of imperial pitches 45
  • Number of longitudinal feeds 17
  • Number of metric pitches 39
  • Number of modular thread pitches 18
  • Spindle bore 52 mm
  • Spindle chuck Camlock DIN ISO 702-2 No. 6
  • Spindle cone MT 6
  • Standard DIN EN 55011
  • Supply voltage 400 V
  • Swing diameter above machine bed 420 mm
  • Swing diameter above planing slide 250 mm
  • Swing diameter in bed bridge 590 mm
  • Tailstock chuck MT 4
  • Tailstock quill diameter 50 mm
  • Tailstock quill stroke 120 mm
  • Tool holder max. chuck height 25 mm
  • Total rated value 5.6 kW
  • Travel carriage saddle 780 mm
  • Travel cross slide 230 mm
  • Travel upper slide 140 mm
  • Turning length in bed bridge 260 mm
  • Width 915 mm
  • Fixed bezel passage Ø 15 - 145 mm
  • Running bezel passage Ø 10 - 75 mm
  • LED machine light
  • Reduction sleeve MK 6 / MK 4

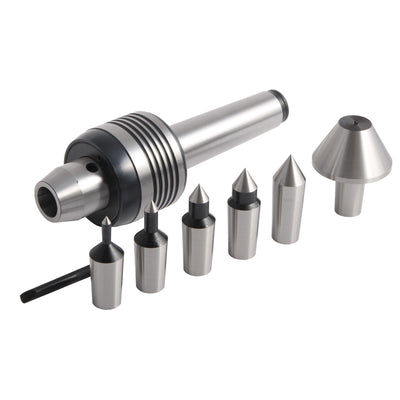

  • Fixed centering point MK 4
  • Change gear set
  • Position stop with fine adjustment
  • Initial machine filling with quality oil
  • operating tool

TH 4210 / TH 4210D / TH 4215D
  • Quadruple steel holder max. 20 mm

TH 4210V

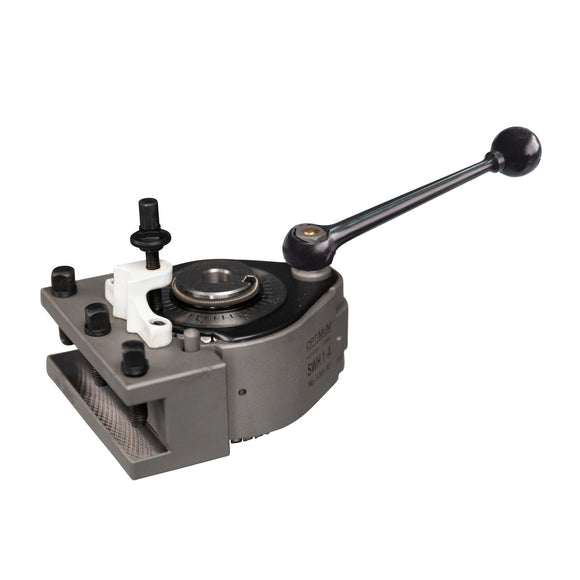

  • Quick change steel holder 5-B
  • Steel holder 25 x 120 type D for square chisels

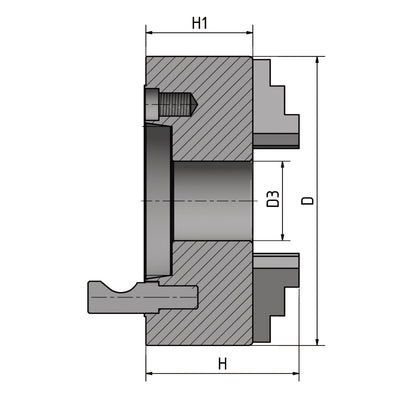

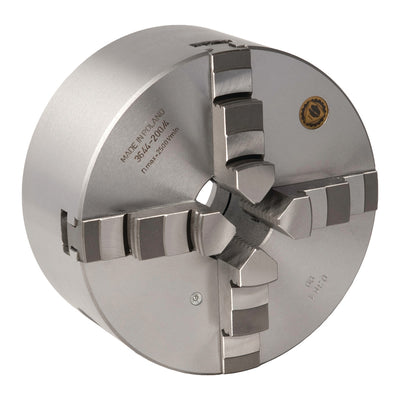

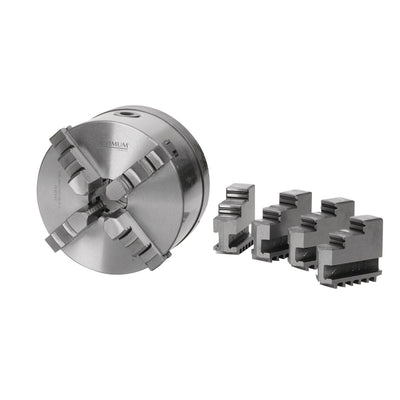

Do not forget the lathe chuck!
