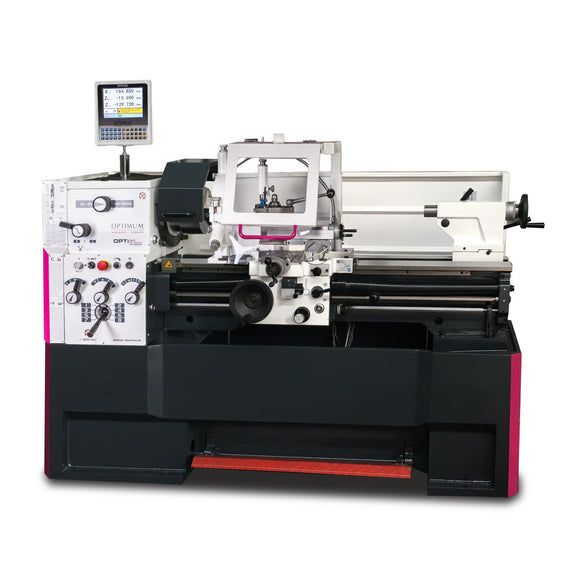

The Optimum OPTIturn TH 4215D is a heavy 400 V centre lathe (1340 kg) with a DPA 31 Plus digital position indicator, 1500 mm between centres and a 52 mm spindle bore. It has 16 speeds from 45 to 1800 min⁻¹ and cuts metric, imperial, modular and diametral threads, so you can machine long shafts and large workpieces and produce many thread types on one machine without changing setups. The digital readout helps you hold tolerances and repeat dimensions, while the two-channel safety electronics keep the operator protected.
Key features

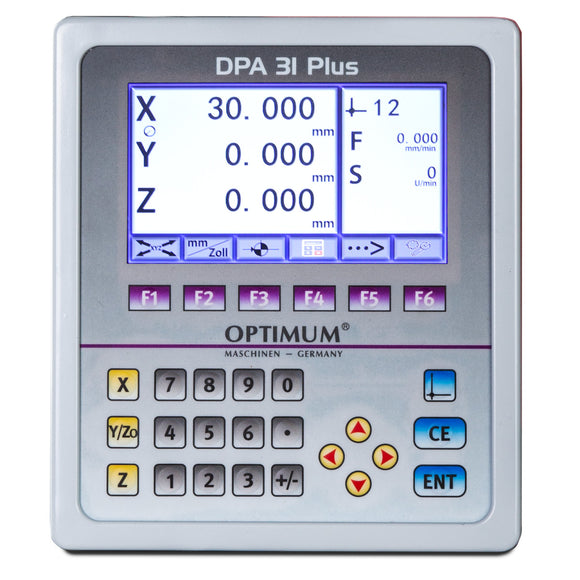

- DPA 31 Plus digital position indicator
- Hardened and ground Z-axis guideway
- Guaranteed spindle nose concentricity better than 0.015 mm
- Spindle mount Camlock DIN ISO 702-2 No. 6
- Main spindle runs in an oil bath
- Smooth-running, hardened and ground gear wheels with 2 adjustable precision tapered roller bearings
- Precisely machined slide
- All guides adjustable with wedge strips
- Top slide adjustment range ±90°
- Wide range of threads: metric, imperial, modular and diametral pitches
- Lead screw cover
- Central lubrication in the bed slide
- Right/left rotation switchable on the bed slide via a switching spindle

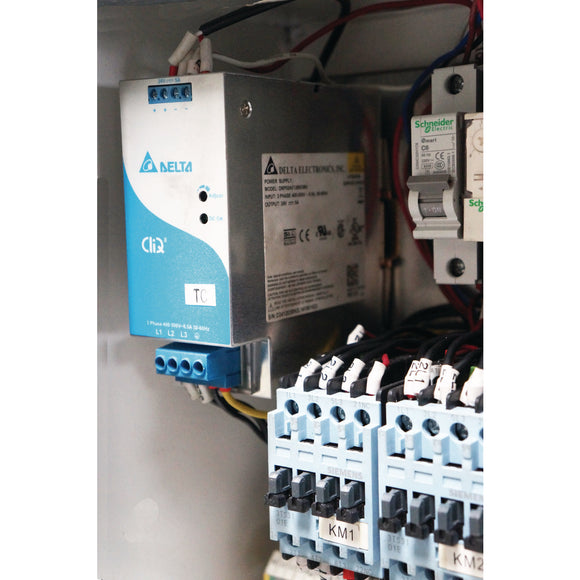

- Two-channel safety electronics
- Switch with life cycle calculation, tested to EN ISO standard
- Coolant system with 100 W pump
- Position stop with fine adjustment
- Quadruple tool post, up to 20 mm
