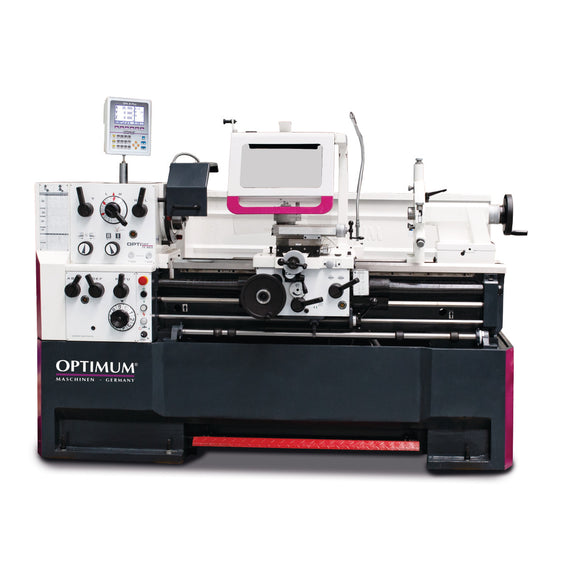

Precision guide and drawbar turning machine OPTIturn TH 4620D

• 25 – 2000 min¯¹
• Bed width 300 mm
• Cooling lubricant system coolant pump output 125 W
• Diametrical pitch 4 – 112 DPI

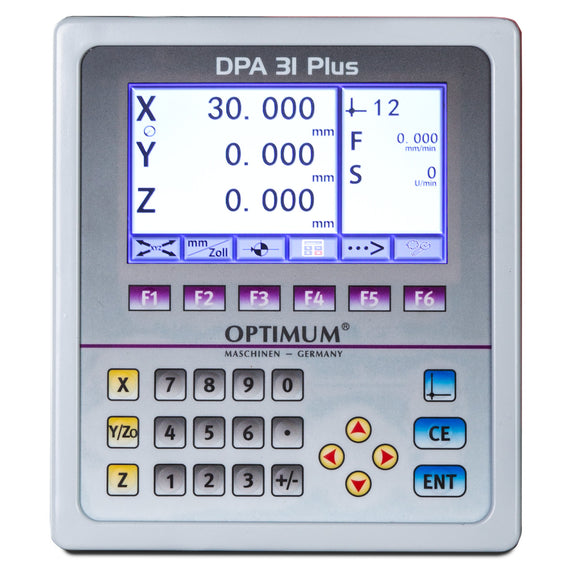

• Digital position indicator DPA 31 Plus
• Flat feed range 0,014 – 0,784 mm/rev
• Frequency 50 Hz
• Height 1550 mm
• Imperial pitch 112 – 2 Gg/1"
• Length 3265 mm
• Longitudinal feed range 0,031 – 1,7 mm/rev
• Max. height 230 mm
• Max. width 2060 mm
• Metric pitch 0,1 – 14 mm/rev
• Modular thread pitch 0,1 – 7 mm/rev
• Motor power 5.5 kW
• Net weight 1965 kg
• Number of diametrical pitches 50
• Number of flat feeds 42
• Number of gears 12
• Number of imperial pitches 41
• Number of longitudinal feeds 42
• Number of metric pitches 41
• Number of modular thread pitches 34
• Spindle bore 58 mm
• Spindle chuck Camlock DIN ISO 702-2 No. 6
• Spindle cone MT 6
• Supply voltage 400 V
• Swing diameter above machine bed 460 mm
• Swing diameter above planing slide 270 mm
• Swing diameter in bed bridge 690 mm
• Tailstock chuck MT 4
• Tailstock quill diameter 60 mm
• Tailstock quill stroke 130 mm
• Tool holder max. chuck height 25 mm
• Total rated value 5.8 kW
• Travel carriage saddle 1805 mm
• Travel cross slide 285 mm
• Travel upper slide 125 mm
• Turning length in bed bridge 240 mm
• Width 1065 mm

• Fixed steady rest aperture Ø 25 - Ø 178 mm
• Rotating steady rest aperture Ø 19 - Ø 114 mm
• LED machine light
• Adapter MK6-MK4
• Non-rotating center point MK4
• Non-rotating, but temperature-resistant center point MK4

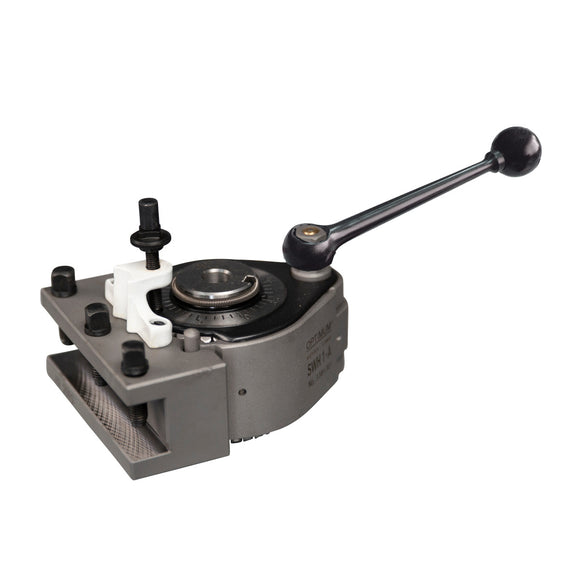

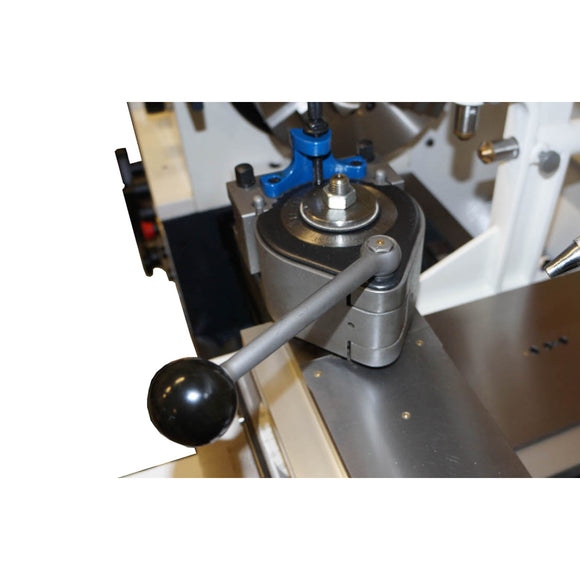

• Quick-change steel holder SWH 5-B
• Steel holder 25 x 120 type D for square chisel 20 mm
• Thread watch
• Interchangeable gear set
• Gearwheels for threading gauge (metric)
• Initial machine filling with quality oil
• Operating tool
