Conventional Centre Lathe OPTIturn TH 5620V

€39.163,20 EUR (€31.840,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3462175 Barcode: 4030635029967

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Conventional Centre Lathe OPTIturn TH 5620V.
  • Hardened and ground Z-axis guideway
  • Spindle mount Camlock DIN ISO 702-2 No. 8
  • Precisely crafted sled
  • Handwheels with adjustable fine scale 0. 02 mm
  • All guides can be adjusted by wedge strips
  • Waves, wheels and main spindle running in oil bath
  • Adjustment range upper slide ± 90 °
  • Guaranteed concentricity of the spindle nose better than 0. 015 mm
  • Gear wheels smooth, hardened and ground with 2 adjustable precision tapered roller bearings
  • Clear selection lever for switching the feed rates
  • Closed design of the rapid-action feed gear
  • Gears and shafts hardened and ground in an oil bath in precision bearings
  • Handwheels decoupled and tested according to EN
  • Two-channel right-left switch tested to EN
  • Switch with life cycle calculation, tested according to EN ISO
  • Right / left rotation on bed carriage via switching spindle switchable
  • Central lubrication in the bed slide
  • Leading spindle
  • Emergency stop blow switch, motor protection switch, lockable main switch
  • Emergency stop device with foot control
  • Safety handwheels with release function in the X and Z axis
  • Tailstock for taper turning ± 10 mm adjustable
  • Tailstock quill and hand wheel with adjustable fine scale 0. 025 mm
  • Fast, easy and tool-free adjustment by means of a clamping lever
  • Strongly ribbed prism bed, induction hardened and precision ground from gray cast iron
  • Coolant device with separate coolant tank with level indicator and oil separator; easy and complete emptying and cleaning according to DIN
  • LED machine lamp in chip protection
  • Two gear stages
  • Spindle bore / rod passage Ø 105 mm
  • Siemens Sinamics Frequency Inverter / Safety Integrated
  • Electrics with Siemens components
  • Energy chain for gentle line and hose routing
  • Adjustable scale of the threaded clock

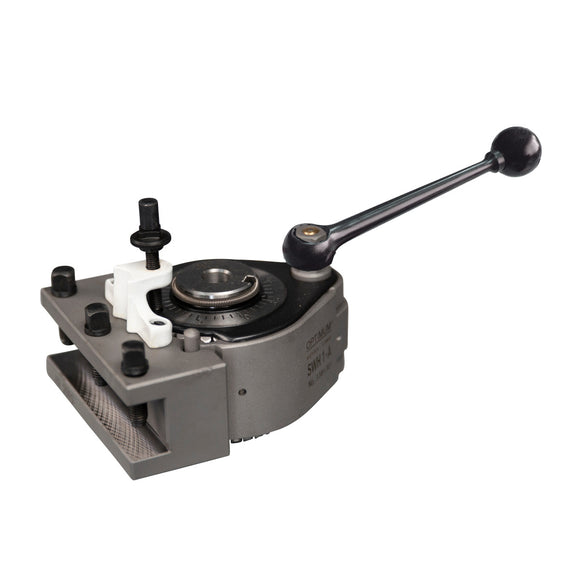

  • Quick change steel holder SWH 7-C
  • 1 steel holder 32 x 150 type D for square chisel 25 mm
  • Digital position indicator DPA 21
  • Glass scales


.
  • 25 – 1600 min¯¹
  • Bed width 350 mm
  • Cooling lubricant system coolant pump output 125 W
  • Diametrical pitch 4 – 112 DPI
  • Digital position indicator DPA 32
  • EMC level C3
  • Flat feed range 0,014 – 0,784 mm/rev
  • Frequency 50 Hz

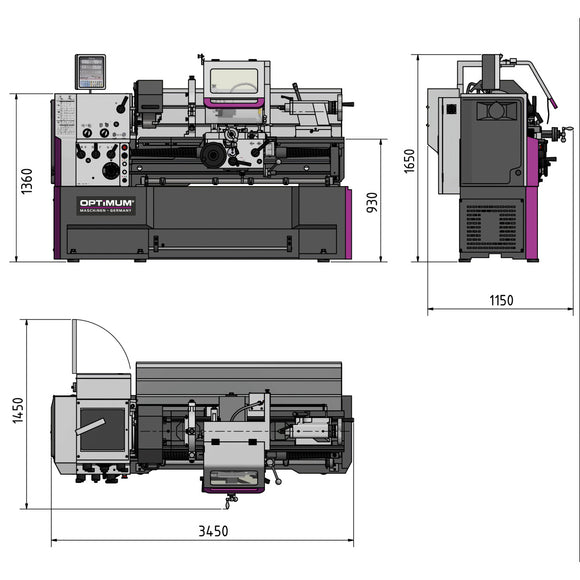

  • Height 1650 mm
  • Imperial pitch 112 – 2 Gg/1"
  • Length 3450 mm
  • Longitudinal feed range 0,031 – 1,7 mm/rev
  • Max. height 280 mm
  • Max. width 1910 mm
  • Metric pitch 0,1 – 14 mm/rev
  • Modular thread pitch 0,1 – 7 mm/rev
  • Motor power 7,5 kW
  • Net weight 2560 kg
  • Number of diametrical pitches 50
  • Number of flat feeds 42
  • Number of gears 2
  • Number of imperial pitches 60
  • Number of longitudinal feeds 42
  • Number of metric pitches 47
  • Number of modular thread pitches 34
  • Spindle bore 105 mm
  • Spindle chuck Camlock DIN ISO 702-2 No. 8
  • Spindle cone Ø 113 (cone 1:20) mm
  • Standard DIN EN 55011
  • Supply voltage 400 V
  • Swing diameter above machine bed 560 mm
  • Swing diameter above planing slide 355 mm
  • Swing diameter in bed bridge 790 mm
  • Tailstock chuck MK 5
  • Tailstock quill diameter 75 mm
  • Tailstock quill stroke 180 mm
  • Tool holder max. chuck height 25 mm
  • Total rated value 8.5 kW
  • Travel carriage saddle 1710 mm
  • Travel cross slide 316 mm
  • Travel upper slide 130 mm
  • Turning length in bed bridge 170 mm
  • Width 1150 mm
  • Reduction sleeve MK7 / MK5
  • Fixed centering point MK 5
  • Revolving Zones MK5
  • Fixed bezel passage Ø max. 165 mm
  • Running bezel passage Ø max. 95 mm
  • Quick change tool holder SWH 7-C
  • Steel holder 32 x 150 type D for square chisels
  • Coolant system
  • machine lamp
  • Change gear kit
  • operating tool

Note: The machines are delivered without oil
Do not forget spin food

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

Collet chuck 5C - No. 8 Collet chuck 5C - No. 8 - 0

Collet chuck 5C - No. 8

Optimum

€928,65 EUR
Enquire
Revolving centering point MT 5 Revolving centering point MT 5 - 0

Revolving centering point MT 5

Optimum

€89,79 EUR
Vibration damper machine foot SE 85 Vibration damper machine foot SE 85 - 0

Vibration damper machine foot SE 85

Optimum

€76,26 EUR
Enquire
Turning tool set HM 20 mm, 5-part Turning tool set HM 20 mm, 5-part - 0

Turning tool set HM 20 mm, 5-part

Optimum

€215,25 EUR

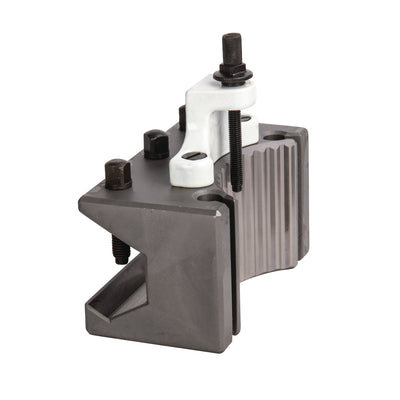

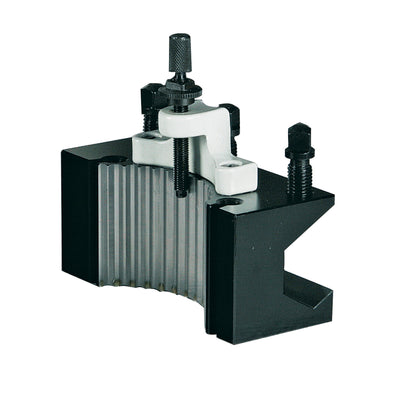

Spare steel holder 35 x 160 type H Spare steel holder 35 x 160 type H - 0
