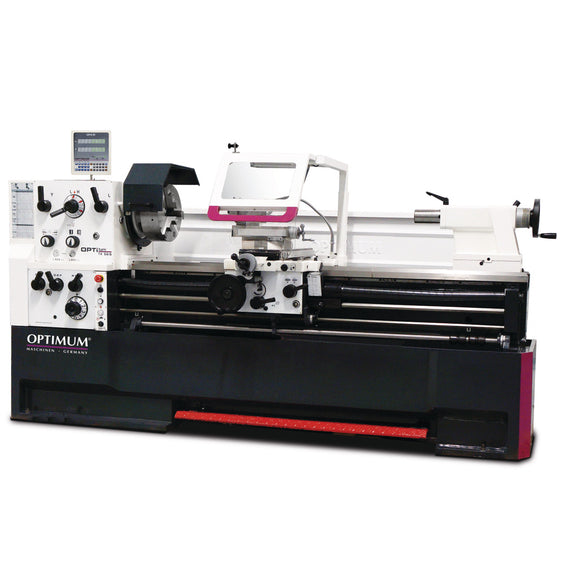

Conventional Centre Lathe OPTIturn TH 5630D.
.
- Hardened and ground Z-axis guideway
- Guaranteed concentricity of the spindle nose ≤ 0. 015 mm
- Spindle holder Camlock DIN ISO 702-2 No. 8
- Lead screw cover

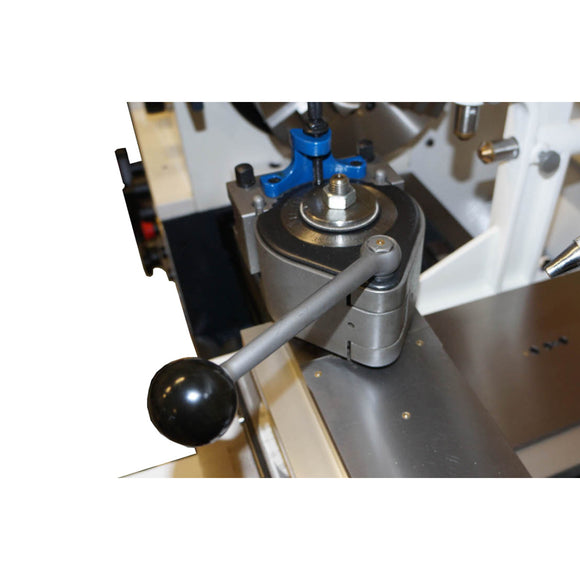

- Precisely machined slide
- All guides can be adjusted using gibs
- Right/left rotation on bed slide switchable via switching spindle

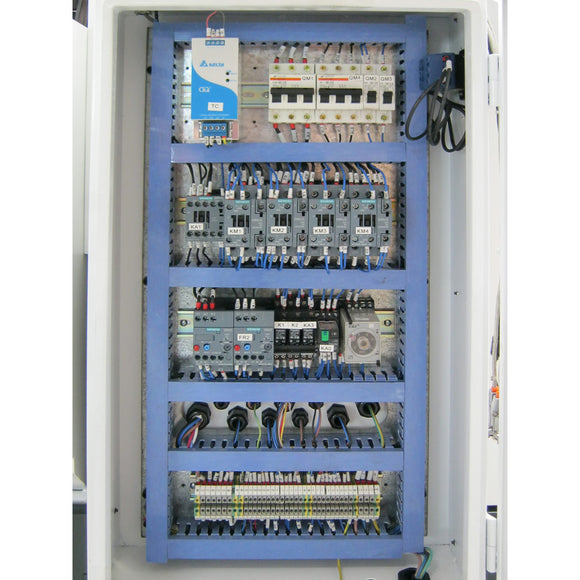

- Two-channel safety electronics
- Central lubrication in the bed slide
- Upper slide adjustment range ± 90
- Main spindle runs in oil bath
- Shafts and wheels running in oil bath
- Gear wheels smooth-running, hardened, ground and mounted with 2 adjustable precision tapered roller bearings
- Switch with life cycle calculation, tested in accordance with EN ISO
- Handwheels with adjustable fine scaling 0. 02 mm
- Safety handwheels with disengagement function in accordance with EN23125 in the X and Z axes
- Gear wheels and shafts hardened and ground, running in an oil bath in precision bearings
- Clearly arranged selector lever for switching the feed speeds
- Closed design of the high-speed feed gearbox
- Emergency stop impact switch, motor protection switch, lockable main switch
- Emergency stop device with foot actuation
- Tailstock for taper turning ± 10 mm adjustable
- Tailstock quill and handwheel with adjustable fine scaling 0. Quick, easy and tool-free adjustment by means of clamping lever
- Energy chain for gentle cable and hose guidance
- Heavily ribbed prism bed, induction-hardened and precision-ground from gray cast iron
- Coolant device with separate coolant tank with level indicator and oil separator; easy and complete emptying and cleaning in accordance with DIN
- Adjustable scale of the thread gauge
.
