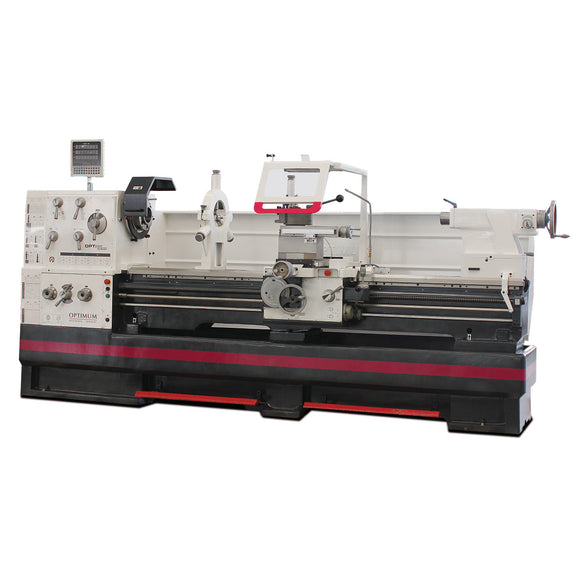

Conventional Centre Lathe OPTIturn TH 8020D

• 25 – 1600 min¯¹
• Bed width 400 mm
• Cooling lubricant system coolant pump output 150 W
• Diametrical pitch 7/8 – 160
• Digital position indicator DPA 31 Plus
• Explanations about rapid motion max. 5 min (30 min. break)
• Flat feed range 0,022 – 0,74 mm/rev
• Frequency 50 Hz

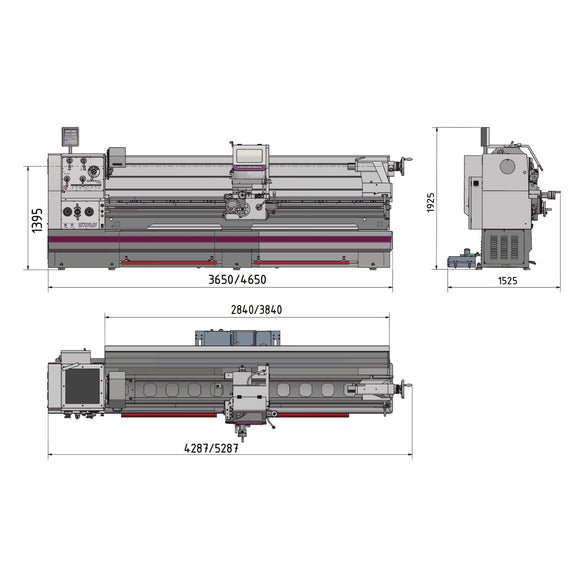

• Height 1925 mm
• Imperial pitch 80 – 7/16 Gg/1"
• Length 4287 mm
• Load bearing capacity 1,4 t/m
• Longitudinal feed range 0,044 – 1,48 mm/rev
• Max. height 400 mm
• Max. width 2050 mm
• Metric pitch 0,45 – 120 mm/rev
• Modular thread pitch 0,25 – 60 mm/rev
• Motor power 11 kW
• Net weight 3455 kg
• Number of diametrical pitches 42
• Number of flat feeds 25
• Number of gears 16
• Number of imperial pitches 60
• Number of longitudinal feeds 25
• Number of metric pitches 54
• Number of modular thread pitches 46
• Rapid motion speed 3800 mm/min
• Spindle bore 105 mm
• Spindle chuck Camlock DIN ISO 702-2 No. 8
• Spindle cone Ø 113 (cone 1:20) mm
• Supply voltage 400 V
• Swing diameter above machine bed 800 mm
• Swing diameter above planing slide 570 mm
• Swing diameter in bed bridge 1035 mm

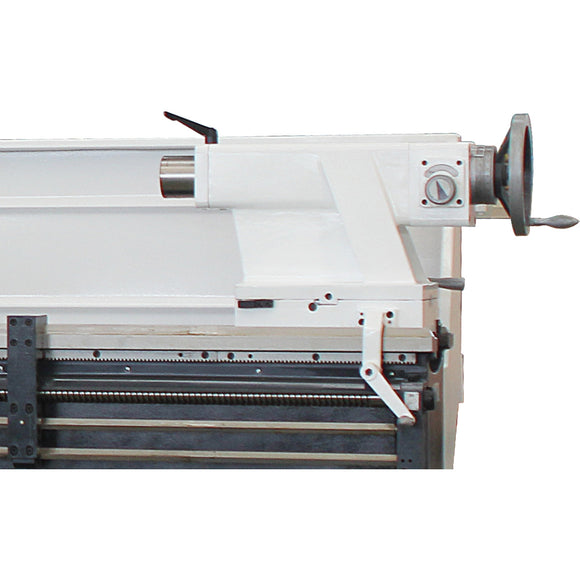

• Tailstock chuck MK 5
• Tailstock quill diameter 90 mm
• Tailstock quill stroke 235 mm
• Tool holder max. chuck height 32 mm
• Total rated value 12 kW
• Travel carriage saddle 1965 mm
• Travel cross slide 368 mm
• Travel upper slide 230 mm
• Turning length in bed bridge 250 mm
• Width 1525 mm

• Fixed bezel passage max. Ø 150 mm
• Running bezel passage max. Ø 130 mm
• machine light
• Reduction sleeve MK 5 / MK 7
• Fixed centering point MK 5
• Fixed center point MK 5, alloyed
• Quick change steel holder 9-D
• Steel holder 41 x 180 type D for square chisels
• Position stop with fine adjustment
• Change gear set
• Quality oil enclosed
• operating tool
