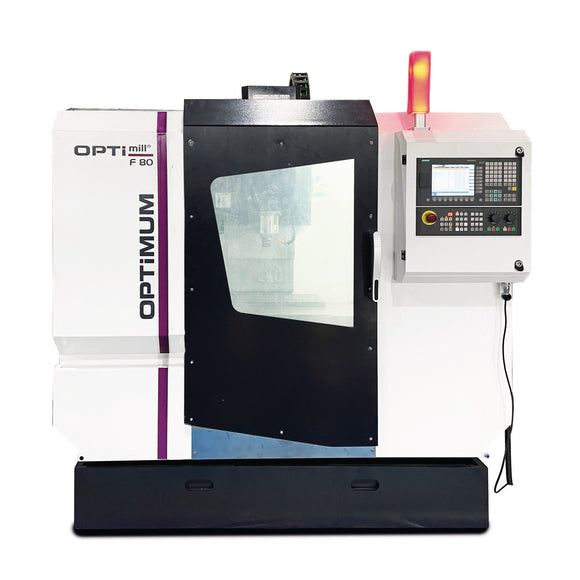

CNC milling machine OPTImill F 80 CNC.
The compact and user-friendly entry-level solution is used for simple milling applications. Features such as simple operation, commissioning and maintenance are the perfect basis for equipping CNC machines.

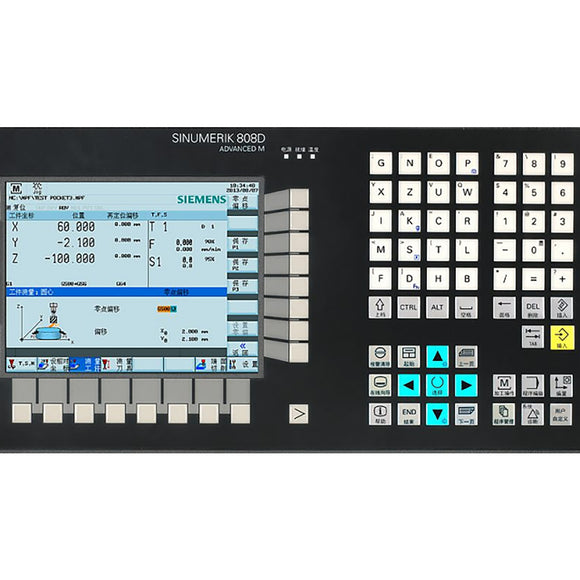

  • Thanks to its technology-specific features, the SINUMERIK 808D ADVANCED control is perfectly preconfigured for milling. Thanks to the hardware and software extensions, the SINUMERIK 808D ADVANCED also offers sufficient performance for simple milling functions for mold and tool making.
    • SINUMERIK 808D on PC
    • Control-identical software package that further simplifies the handling of the machine tool. Download free of charge at and robust
      • Thanks to a panel-based CNC design with few interfaces and a control panel in protection class IP65, the SINUMERIK 808D ADVANCED is perfectly prepared for use in harsh environments
      Communicative
      • Front panel USB (IP65)
      • Serial interface RS232C
      • RJ45 Ethernet on the rear
      User-friendly
      • Technology-specific keyboard layoutHard
      • keys with protective membrane
          • Process-safe
          • LED tool number display
          • MCP with rotary switch for feed and spindle override
          Complete package
          • RJ45 Ethernet port
          • Prepared for remote maintenance
          • AST function; enables simple optimization for higher dynamic and accuracy requirements
          • Absolute encoder / no reference run required
          • Higher accuracy
          Control system
          • 8. 4" LCD color display with 800 x 600 resolution
          Additional package SIEMENS OSS
          • 12 months; article no.
          • 36 months; article no.
    • Coolant pump(s) drive power 450 W
    • Cooling lubricant system tank capacity 80 l
    • Explanation vertical spindle speed range Please note that the maximum spindle speed must be reduced by approx. 20 % in continuous operation.
    • Fast motion speed X axis 20000 mm/min
    • Fast motion speed Y axis 20000 mm/min
    • Fast motion speed Z axis 20000 mm/min
    • Feed motor torque X axis continuous operation S1 6 Nm
    • Feed motor torque Y axis continuous operation S1 6 Nm
    • Feed motor torque Z axis continuous operation S1 11 Nm
    • Frequency 50 Hz
    • Height 2750 mm
    • Horizontal milling table length 800 mm
    • Horizontal milling table max. load bearing capacity 200 kg
    • Horizontal milling table width 260 mm
    • Length 1995 mm
    • Max. distance spindle to column 370 mm
    • Max. tool diameter 95 mm
    • Max. tool length 300 mm
    • Max. tool weight 8 kg
    • Net weight 2300 kg

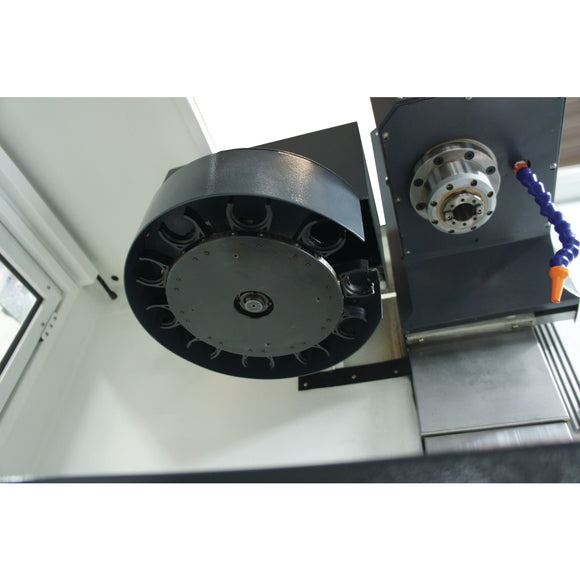

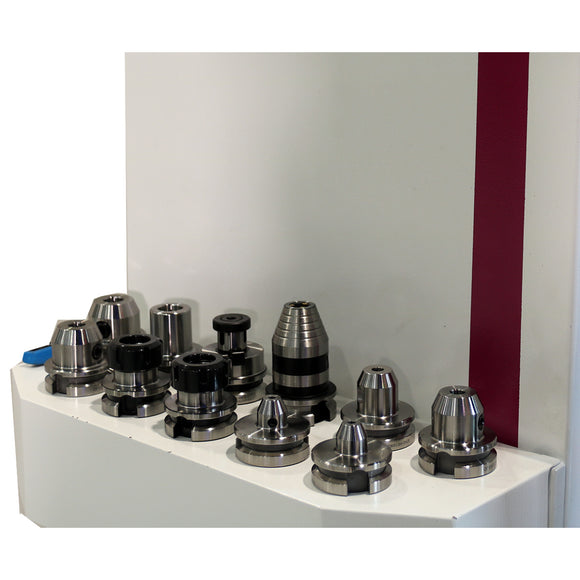

    • Number of tool slots 12 Tools
    • Pneumatic connection operating pressure 7 bar
    • Positioning accuracy ± 0.01 mm
    • Repetition accuracy ± 0.01 mm
    • Supply voltage 400 V
    • Tool change time chip to chip (C to C) 7 s
    • Total rated value 12 kVA
    • Travel X axis automatic 450 mm
    • Travel Y axis automatic 260 mm
    • Travel Z axis automatic 450 mm
    • Vertical spindle drive motor output continuous operation S1 3,7 kW
    • Vertical spindle speed range 50 - 10000 min¯¹
    • Vertical spindle spindle chuck BT 40
    • Vertical spindle torque drive motor continuous operation S1 24 Nm
    • Width 1930 mm

    Add content using the options to the left

    Shipping to Ireland & UK.

    To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

    Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

    €10 is via DPD and the €60 is via pallet express.

    Free shipping on all online orders over €100.00

    You can also pick up an item for free from our Longford store.

    All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

    We expect delivery to be within 2 to 5 working days thereafter.

    Standard Delivery will be by Courier service for orders up to 30kg in weight.

    Workplace mat 1840 x 640 mm Workplace mat 1840 x 640 mm - 0

    Workplace mat 1840 x 640 mm

    Unicraft

    €244,77 EUR
    Workplace mat 3040 x 640 mm Workplace mat 3040 x 640 mm - 0

    Workplace mat 3040 x 640 mm

    Unicraft

    €441,57 EUR
    Enquire
    Workplace mat 3040 x 940 mm Workplace mat 3040 x 940 mm - 0

    Workplace mat 3040 x 940 mm

    Unicraft

    €633,45 EUR
    Enquire
    Workplace mat 1840 x 940 mm Workplace mat 1840 x 940 mm - 0

    Workplace mat 1840 x 940 mm

    Unicraft

    €375,15 EUR
    Enquire

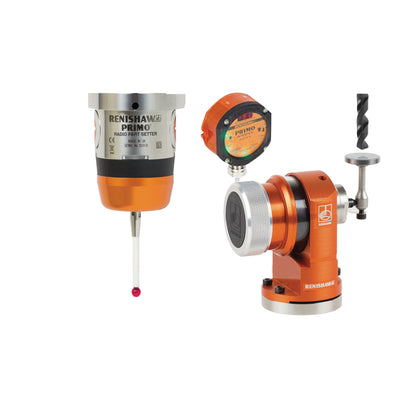

    Primo set Renishaw Primo set Renishaw - 0
