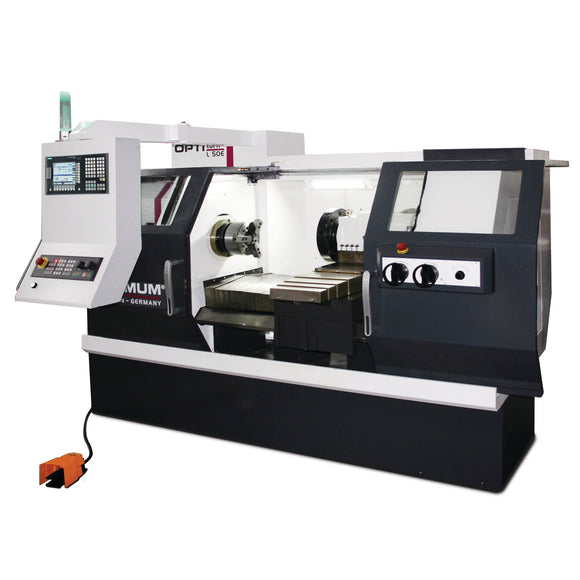

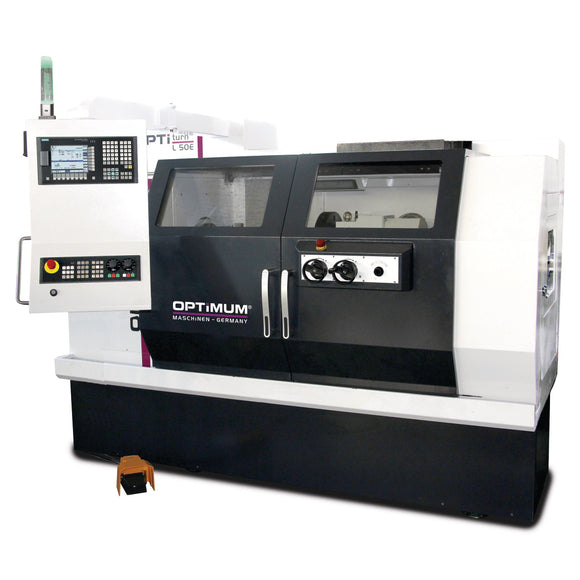

CNC lathe OPTIturn L 50E

Complete solution - multiple options

SIEMENS SINUMERIK 808D ADVANCED

• Precise processing
• Spindle and feed motors from SIEMENS
• Full enclosure with safety device
• Standard with a maximum spindle speed of up to 3,000 min^-1
• Hydraulic lathe chuck
• Ball screws
• Linear guides in all axes
• Automatic central lubrication
• Servo-hydraulic VDI 30 tool changer with 8 tool places
• Swiveling control unit
• Electronic handwheels for the X and Z axes
• Coolant device with 110 liter coolant tank
• RJ45 plug connection, USB connection and 230 V power connection
• EMC (electromagnetic compatibility)
• Six adjustable feet
• Operating tools

SINUMERIK 808 ADVANCED

Increased productivity in production

• The SINUMERIK 808D ADVANCED control is a panel-based CNC control. The compact and user-friendly entry-level solution is used for simple turning applications. Features such as simple operation, commissioning and maintenance are the perfect basis for equipping CNC machines.
• Due to its technology-specific characteristics, the SINUMERIK 808D ADVANCED control is perfectly preconfigured for turning. Due to the hardware and software extensions, the SINUMERIK 808D ADVANCED also offers sufficient performance for simple turning functions for mold and tool making.

COMPACT AND ROBUST

• Thanks to a panel-based CNC design with few interfaces and an operator panel in protection class IP65, the SINUMERIK 808D ADVANCED is perfectly prepared for use in harsh environments. The small dimensions enable the use in compact machines.

SINUMERIK 808D ON PC

• Control-identical software package for further simplification of the handling of the machine.

Control

• 8. 4” LCD color display with 800 x 600 resolution

TOTAL PACKAGE

• RJ45 Ethernet port
• Prepared for remote maintenance
• AST function; enables simple optimization with higher demands on dynamics and accuracy
• Absolute encoder/no reference travel necessary
• Higher accuracy

Extended warranty

With the extended warranty you protect your new machine against warranty damage for a further 12 or 36 months (only to be bought with purchase of machine).

• 12 months; Article No.
• 36 months; Article No.

Standard equipment

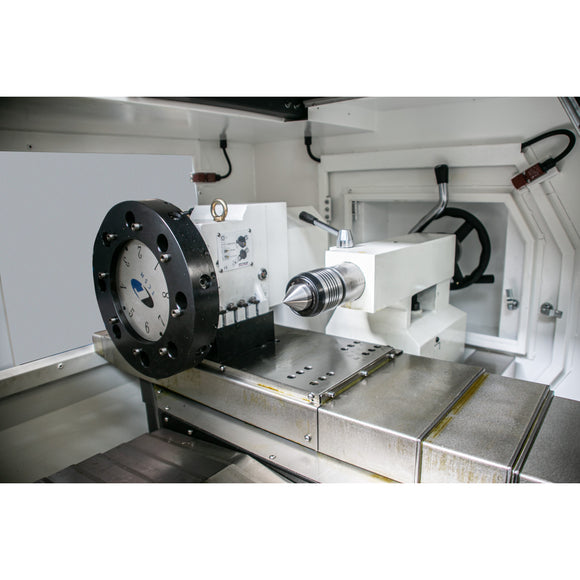

TOOL REVOLVER

• Capacity for eight tools
• Servo hydraulic VDI30 tool turret
• Mounting height max. 20 mm
• Mounting diameter 32 mm

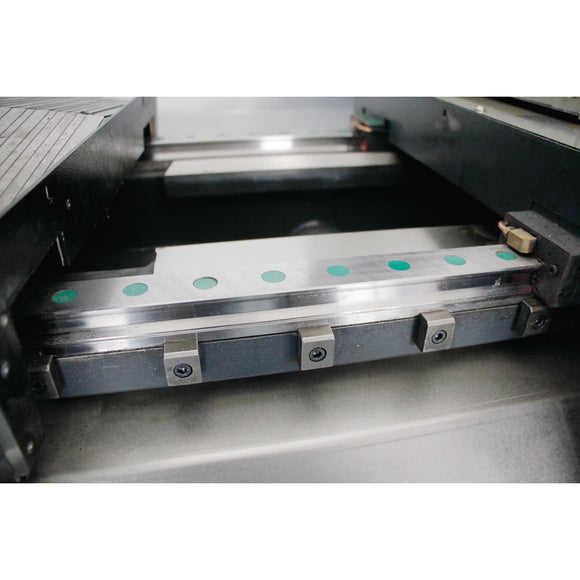

LINEAR GUIDE

• Maximum feed speed
• Durable
• Stainless steel cover

SIGNAL LAMP

• Indicates the status of the machine visually

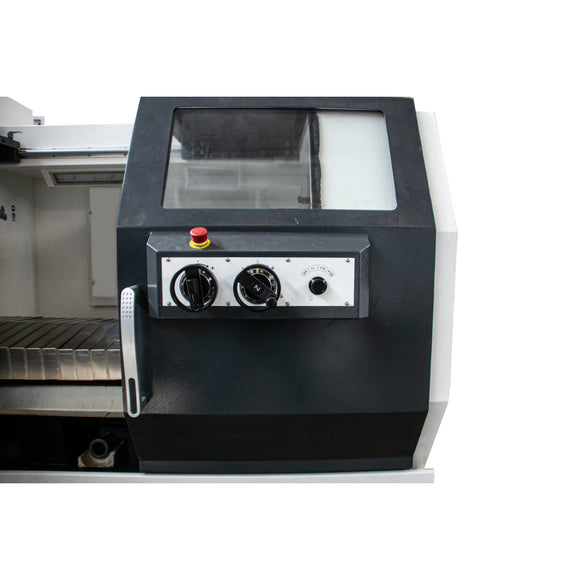

HANDWHEELS

• Handwheel for manual movement of the X-axis and Z-axis
• Emergency stop impact switch

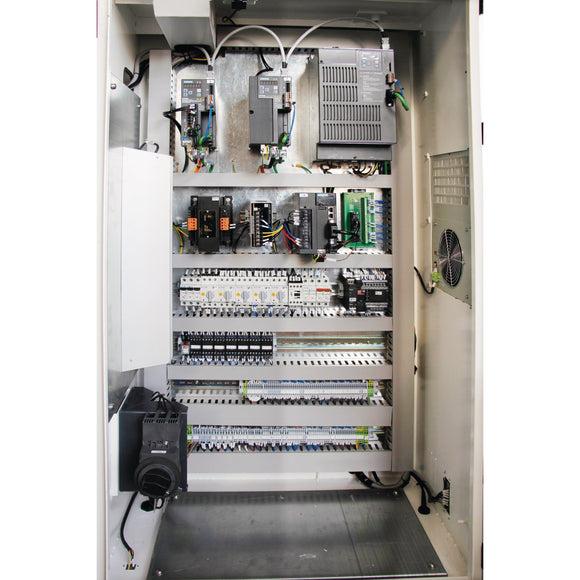

SWITCH CABINET

• Clear structure of the control cabinet
• Compliant with standards
• Drives from SIEMENS

CENTRAL LUBRICATION SYSTEM

• Ensures regular and automatic lubrication
• Lubrication points that are connected to the central lubrication system have a longer service life

SINUMERIK 808D ON PC

• Control-identical software package
• Simplifies the handling of the machine
• The workpieces can be programmed and simulated offline.

Training and learning:

• Operation of SINUMERIK Operate BASIC can be learned on the PC without additional hardware.
• Simple and convenient learning with control-identical user interface.

Offline CNC programming:

• .
