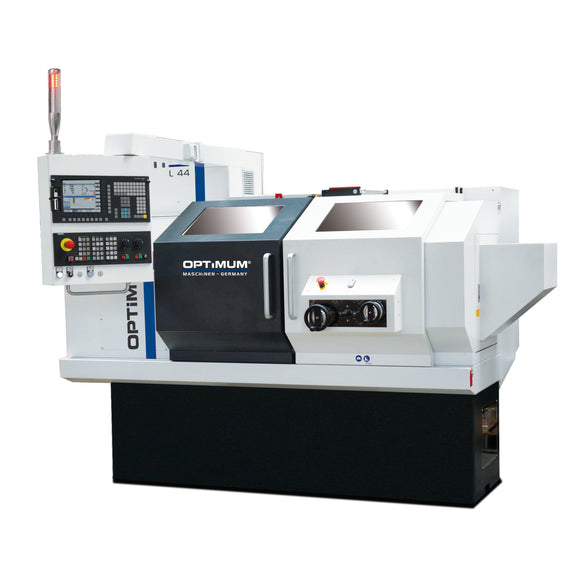

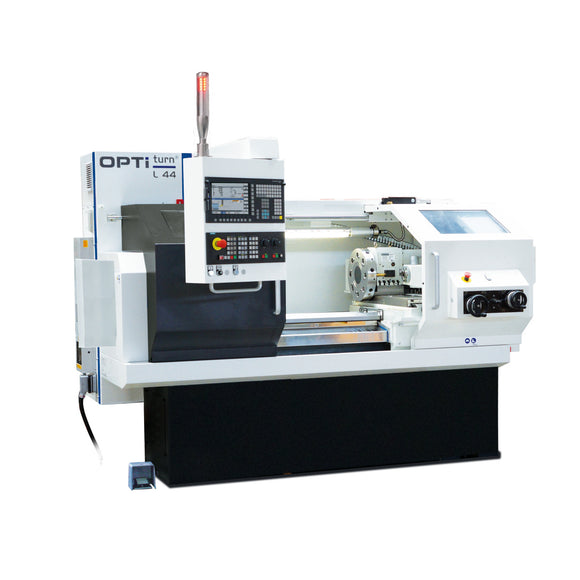

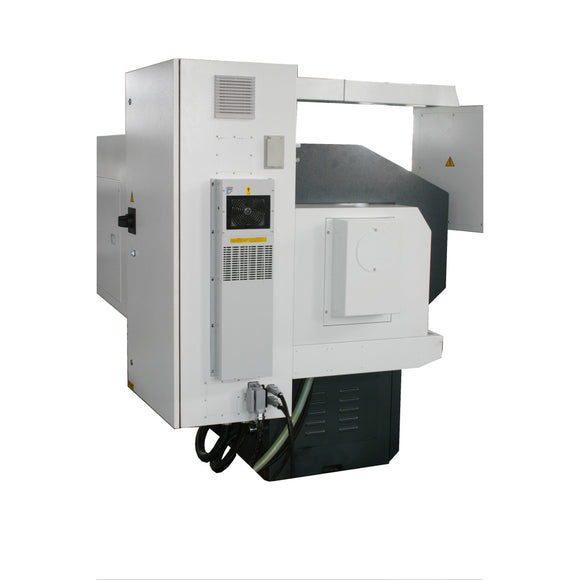

CNC lathe OPTIturn L 44

• 10 – 3000 min¯¹
• Ball screw X axis diameter 25 mm
• Ball screw X axis precision class C3
• Ball screw Z axis diameter 40 mm
• Ball screw Z axis precision class C3
• Bed width 300 mm
• CNC memory 3 MB
• Chuck passage diameter 40 mm
• Cooling lubricant system coolant pump output 270 W
• Cooling lubricant system tank capacity 90 l
• Drive motor torque 33 Nm
• Feed force X-axis 7,5 kN
• Feed force Z-axis 5.3 kN
• Frequency 50 Hz

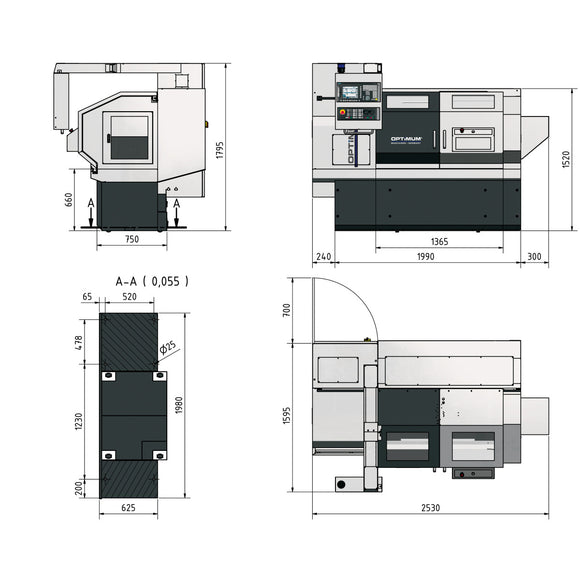

• Height 1795 mm

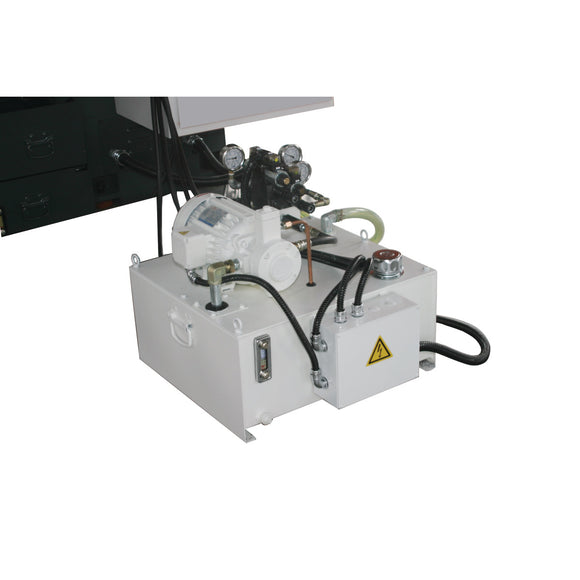

• Hydraulic system motor output 0,75 kW
• Hydraulic system tank capacity 50 l
• Lathe chuck diameter 150 mm
• Length 2530 mm
• Look Ahead 50
• Max. height 223 mm
• Max. width 850 mm
• Max. width/depth ca. 2300 mm
• Motor power 7 kW
• Net weight 2600 kg
• Number of gears 1
• Number of tools 128
• Positioning accuracy ± 0.005 mm
• Repetition accuracy ± 0.005 mm
• Set change time 3 ms
• Sinumerik 828D system software (factory option) SW 24
• Spindle bore 52 mm
• Spindle chuck DIN ISO 702-1 No. 5
• Supply voltage 400 V
• Swing diameter above machine bed 446 mm
• Swing diameter above planing slide 240 mm
• Swing diameter in bed bridge 520 mm

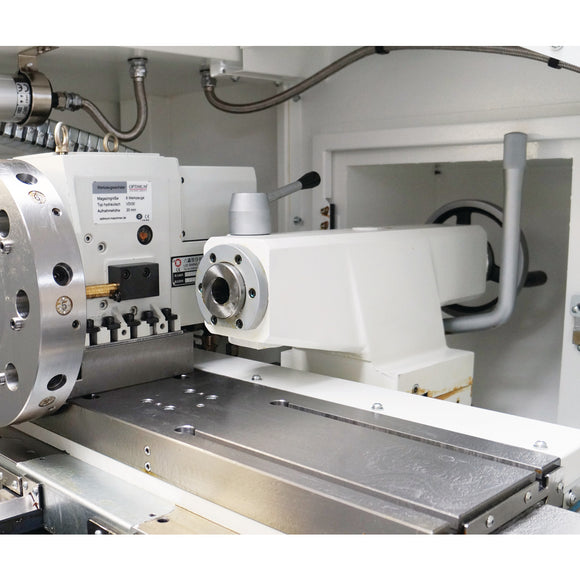

• Tailstock chuck MT 4
• Tailstock quill diameter 52 mm
• Tailstock quill stroke 165 mm
• Tool changer max. chuck diameter drilling rod 25 mm
• Tool changer max. chuck height, width square 20 x 20 mm
• Tool changer number of tool slots 8 St
• Tool changer type hydraulic; VDI 30
• Total rated value 23 kVA
• Travel X axis 250 mm
• Travel Z axis 760 mm
• Type of Control Sinumerik 828D PPU 240
• Vertical spindle drive motor output continuous operation S1 7 kW
• Vertical spindle drive motor torque 33 Nm
• Width 1595 mm
• X axis feed speed 15000 mm/min
• X axis motor torque 6 Nm
• Z axis feed speed 15000 mm/min
• Z axis motor torque 8.5 Nm

• Tailstock end cover

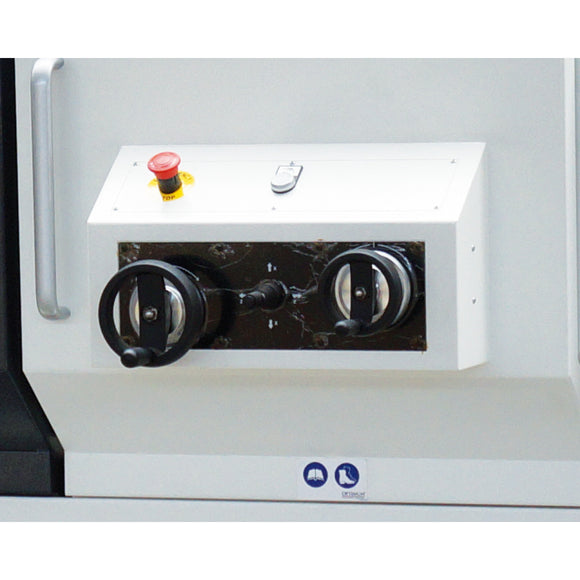

• Portable electronic handwheel
• 6 pcs. machine feet

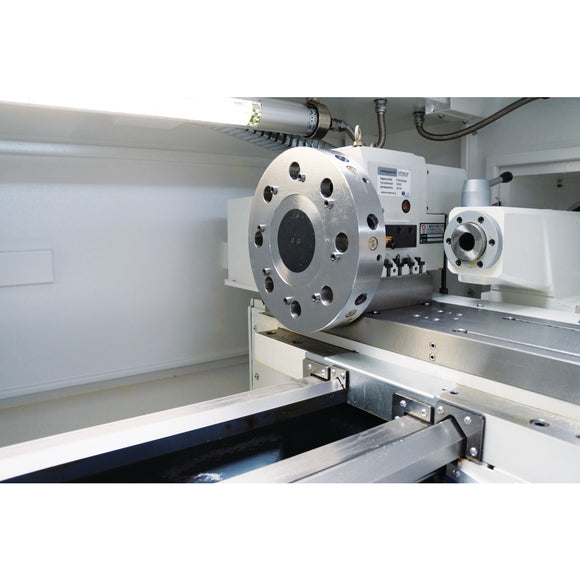

• Hydraulic tool turret 8 tools
• operating tool

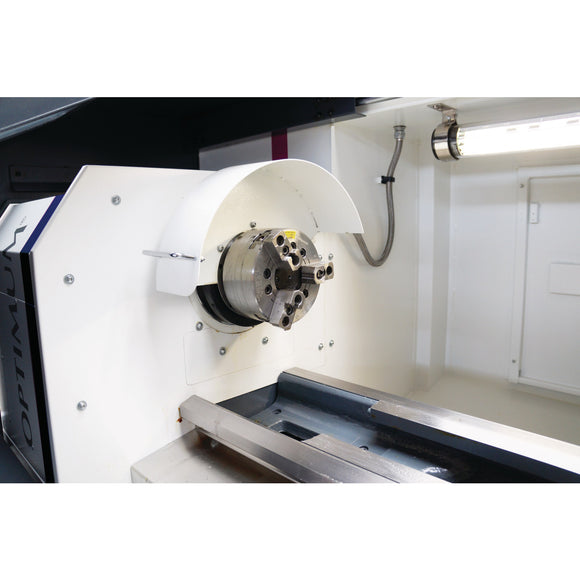

• Hydraulic 3-jaw chuck Ø 150 mm
• EMC
• Hard and soft block cheeks
• joystick
• heat exchangers
