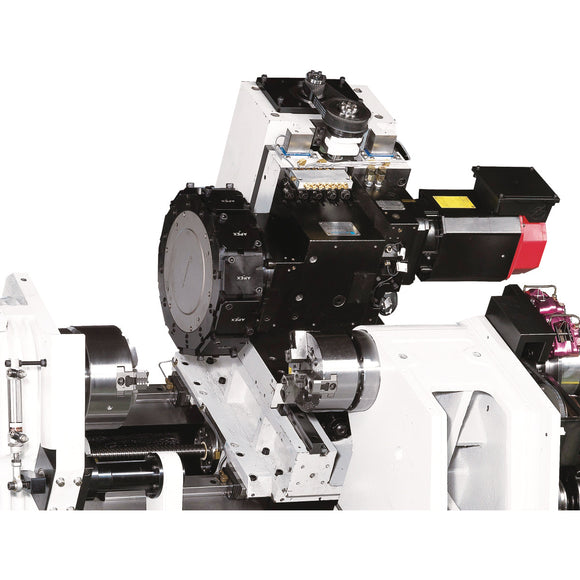

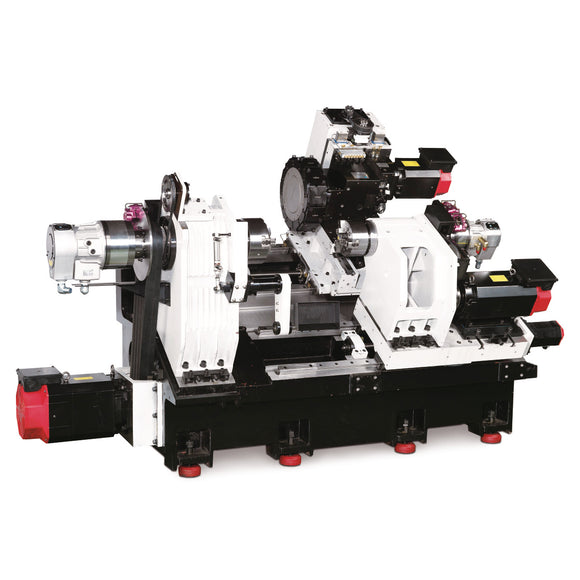

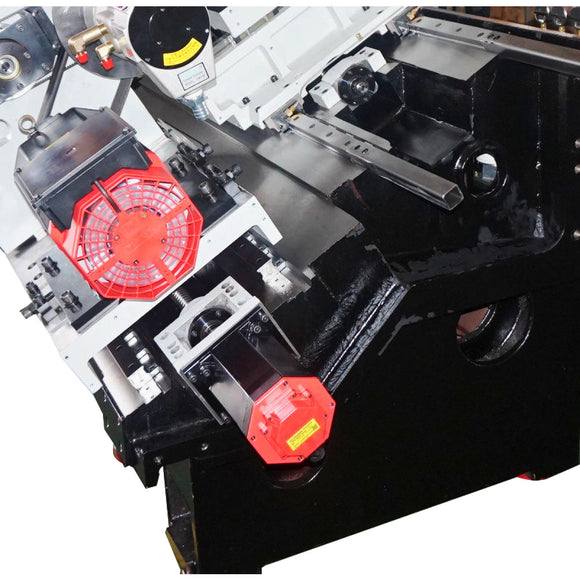

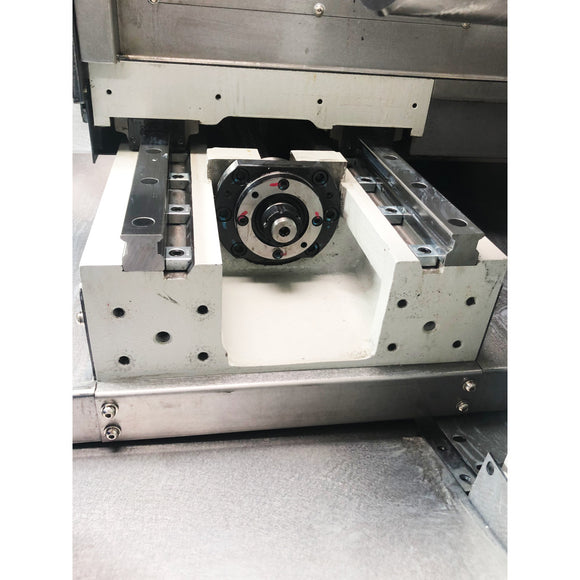

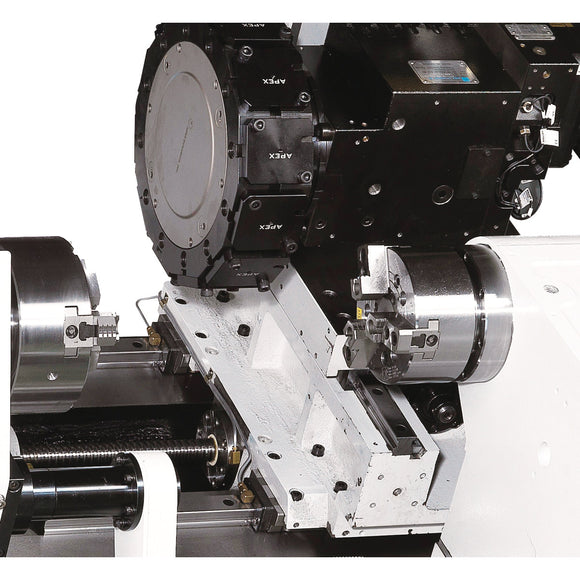

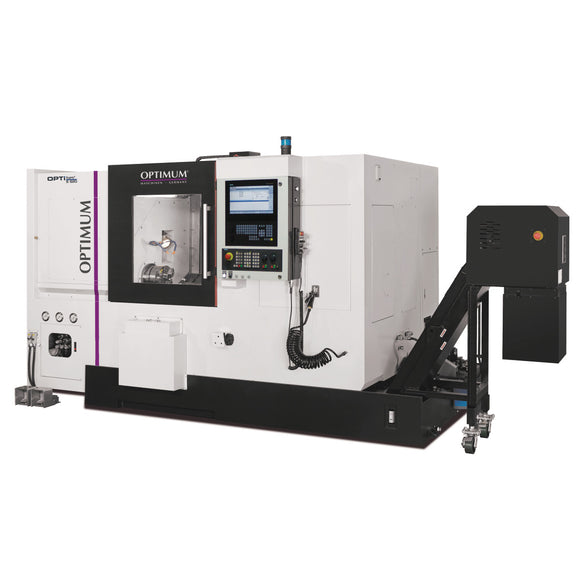

CNC lathe OPTIturn S 620L

• 0 – 4000 min¯¹
• Angled bed 30 °
• CNC memory 8 MB

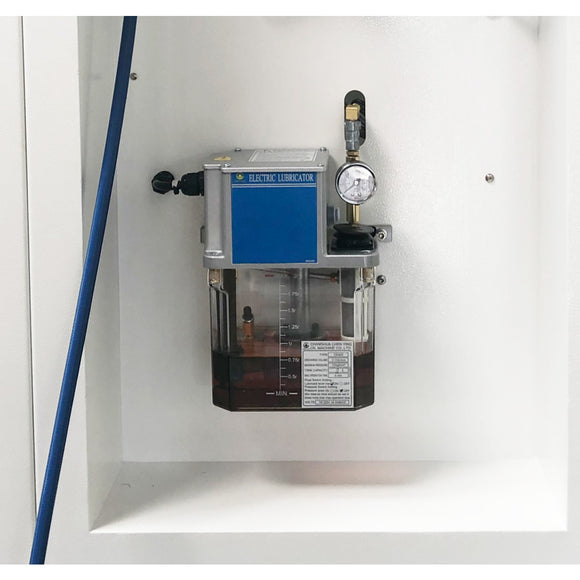

• Central lubrication system output 30 W
• Chuck passage diameter 65 mm

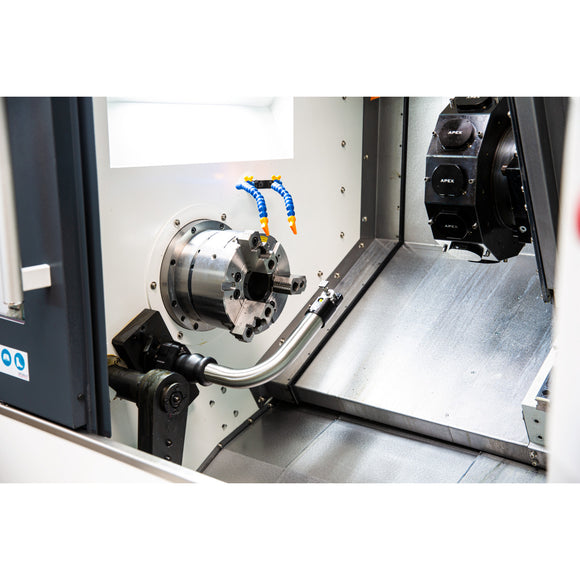

• Cooling lubricant system coolant pump output 530 W
• Feed force X-axis 6.9 kN
• Feed force Y-axis 6.2 kN
• Feed force Z-axis 10 kN
• Frequency 50 Hz
• Height 1950 mm
• Hydraulic system motor output 2,2 kW
• Length 4020 mm
• Look Ahead 150
• Main spindle bore 75 mm
• Max. height 325 mm
• Max. length ca. 4485 mm
• Net weight 6000 kg
• Number of tools 512
• Positioning accuracy ± 0.005 mm
• Repetition accuracy ± 0.005 mm
• Set change time 1 ms
• Sinumerik 828D system software (factory option) SW 28x
• Spindle chuck DIN ISO 702-1 No. 6

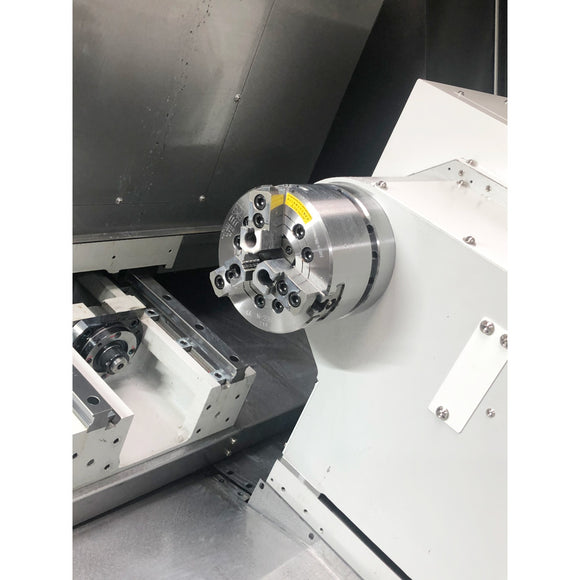

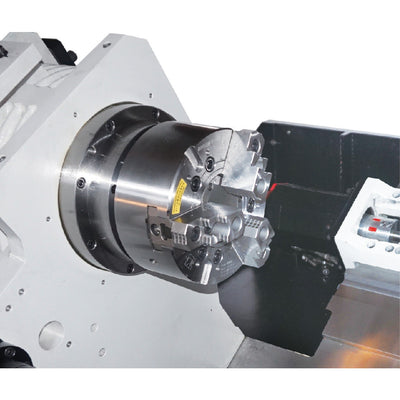

• Spindle hydraulic lathe chuck 200 mm
• Sub spindle bore 52 mm
• Sub spindle chuck passage 45 mm
• Sub spindle hydraulic lathe chuck 150 mm
• Sub spindle output drive motor continuous operation S1 7,5 kW
• Sub spindle speed range 0 – 5000 min¯¹
• Sub spindle spindle taper DIN ISO 702-1 No. 5
• Sub spindle torque drive motor 50 nm
• Supply voltage 400 V
• Swing diameter above machine bed 650 mm
• Swing diameter above planing slide 380 mm
• Tool changer drive motor output 3.75 kW
• Tool changer max. chuck diameter drilling rod 40 mm
• Tool changer max. chuck height, width square 25 x 25 mm
• Tool changer max. permissible speed at tool coupling 6000 min¯¹

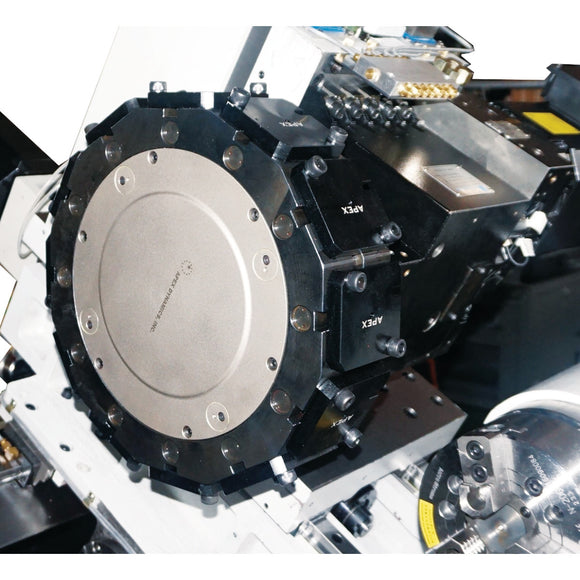

• Tool changer number of tool slots 12 Tools
• Tool changer type hydraulic VDI30 DIN 5480
• Total rated value 20 kVA
• Travel X axis 215 mm
• Travel Z axis 1020 mm
• Travel Z2 axis 1020 mm
• Turning length 1020 mm
• Type of Control Sinumerik 828D
• Vertical spindle drive motor output continuous operation S1 11 kW
• Vertical spindle drive motor torque 98.7 Nm
• Width 3135 mm
• X axis feed speed 24000 mm/min
• X axis motor torque 11 Nm
• Y axis feed speed (factory option) 6000 mm/min
• Y axis motor torque 6 Nm
• Y axis travel (factory option) 100 (+/- 50) mm
• Z axis feed speed 24000 mm/min
• Z axis motor torque 16 Nm
