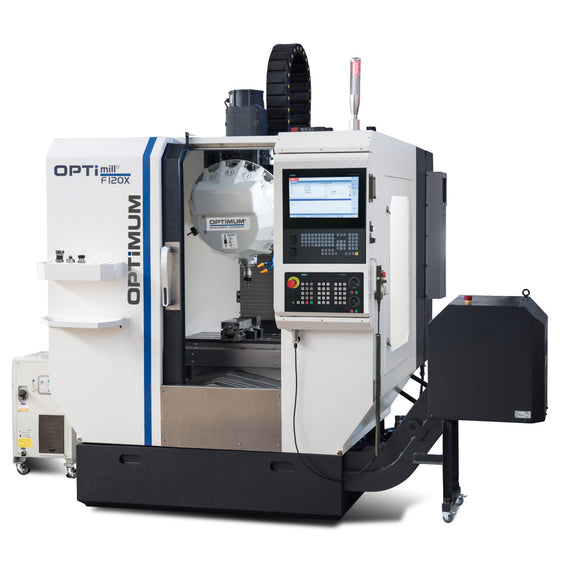

CNC milling machine OPTImill F 120X.

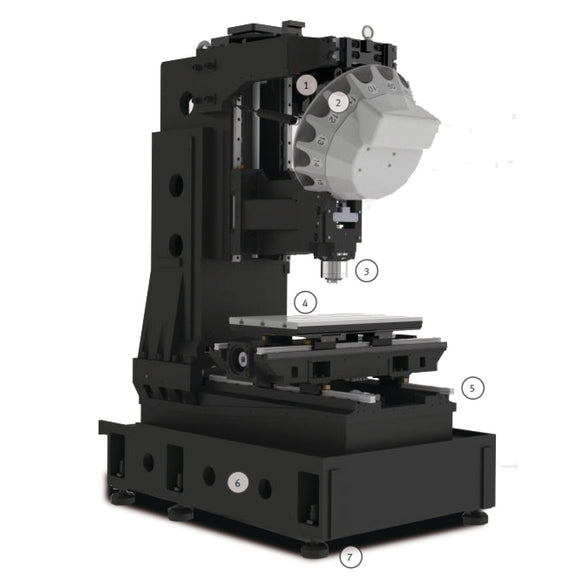

Robust design

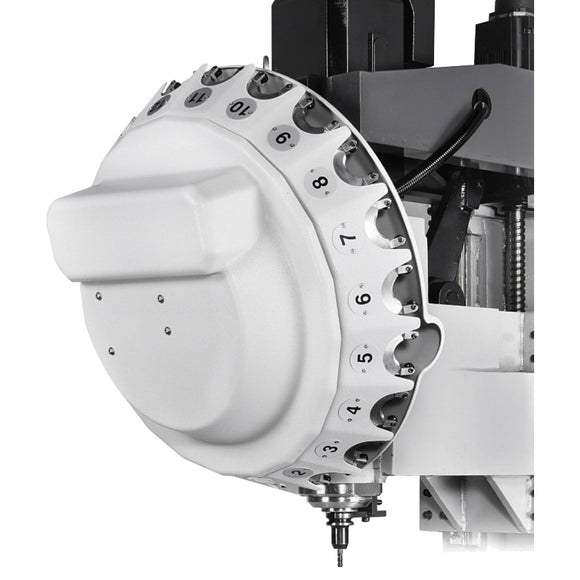

Servo tool changer with 21 tool slots
All linear guides with stainless steel covers
Automatic central lubrication
Machine lamp in workspace

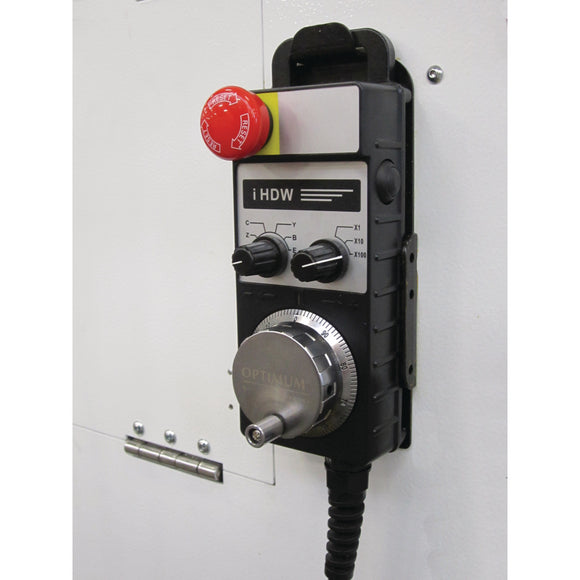

Portable, electronic handwheel with confirm button and emergency stop mushroom button. Greatly facilitates running in of programs

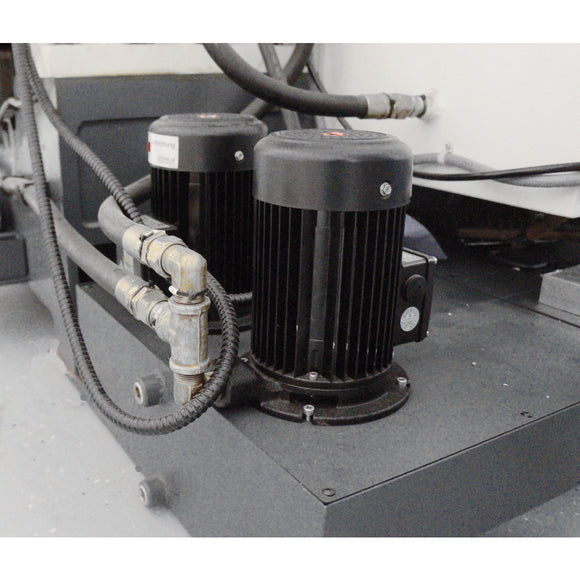

Coolant system
Tool change automatic
Solid, precise milling table, precise surface machining
Generously designed access doors to reduce cleaning and maintenance time to a minimum

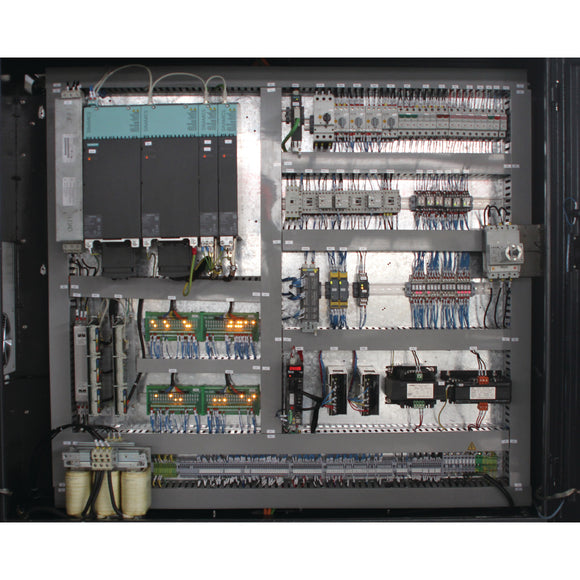

SIEMENS servodrive on all axes
Chip conveyor, belt type
Chip cart
Inline spindle rpm
Ball screws on all axes
Oil cooler compensates for temperature fluctuations at the main spindle

.

Acceleration X, Y, Z axis 2 m/s²
CNC memory 8 MB
Control type Sinumerik 828D
Coolant pump(s) drive power 370 W
Cooling lubricant system tank capacity 120 l
Explanation vertical spindle speed range Please note that the maximum spindle speed must be reduced by approx. 20 % in continuous operation.
Fast motion speed X axis 40000 mm/min
Fast motion speed Y axis 40000 mm/min
Fast motion speed Z axis 40000 mm/min
Feed motor torque X axis 30% operation S6 14 Nm
Feed motor torque X axis continuous operation S1 7,4 Nm
Feed motor torque Y axis 30% operation S6 14 Nm
Feed motor torque Y axis continuous operation S1 7,4 Nm
Feed motor torque Z axis 30% operation S6 21 Nm
Feed motor torque Z axis continuous operation S1 10,5 Nm
Frequency 50 Hz

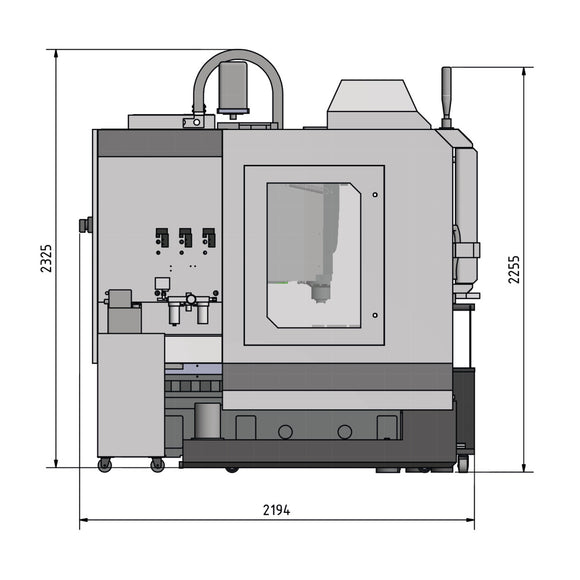

Height 2325 mm
Horizontal milling table length 650 mm
Horizontal milling table max. load bearing capacity 250 kg
Horizontal milling table width 400 mm
Length 2315 mm
Look Ahead 150
Max. size milling head 63 mm
Max. size shaft milling cutter 25 mm
Max. tool diameter 80 mm
Max. tool length 80 mm
Max. tool weight 3 kg
Net weight 3800 kg
Number of tool slots 21 Tools
Number of tools 512

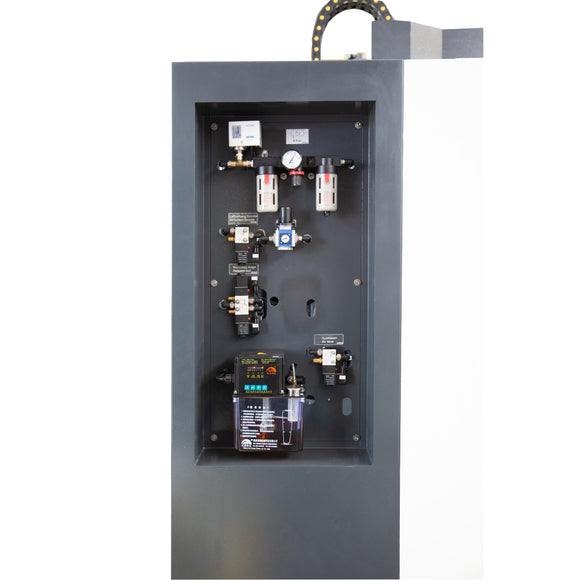

Pneumatic connection operating pressure 6 bar
Positioning accuracy ± 0.005 mm
Repetition accuracy ± 0.006 mm
Set change time 1 ms
Supply voltage 400 V
System software SW 28x
Tool change time chip to chip (C to C) 7.33 s
Total rated value 45 kVA
Travel X axis automatic 500 mm
Travel Y axis automatic 400 mm
Travel Z axis automatic 300 mm
Vertical spindle drive motor output continuous operation S1 12 kW
Vertical spindle speed 16000 min¯¹
Vertical spindle spindle centre to Z axis cover 400 mm
Vertical spindle spindle chuck BT 30
Vertical spindle torque drive motor continuous operation S1 38 Nm
Width 2194 mm
X axis feed drive motor output 2,32 kW
X axis feed drive motor output 30% operation S6 4,1 kW
Y axis feed drive motor output 2,32 kW
Y axis feed drive motor output 30% operation S6 4,1 kW
Z axis feed drive motor output 3,3 kW
Z axis feed drive motor output 30% operation S6 6,5 kW
