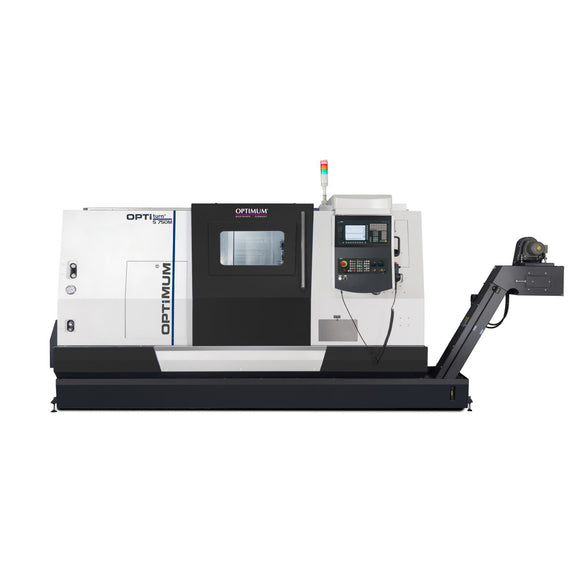

CNC lathe OPTIturn S 750M.
  • Heavy-duty design
  • Compact design

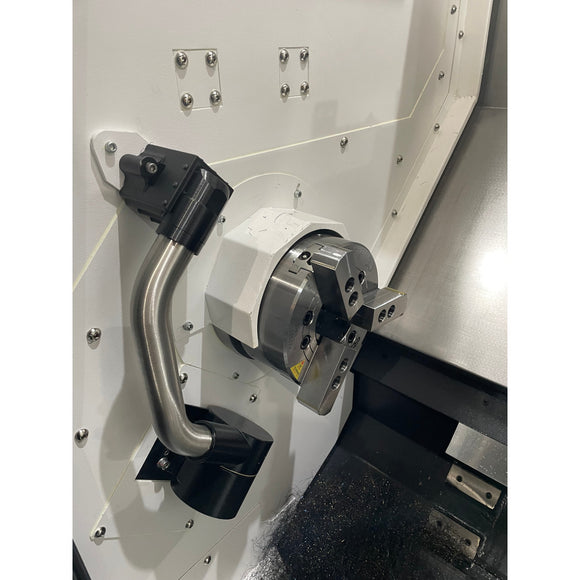

  • Renishaw measuring arm for manual tool measurement

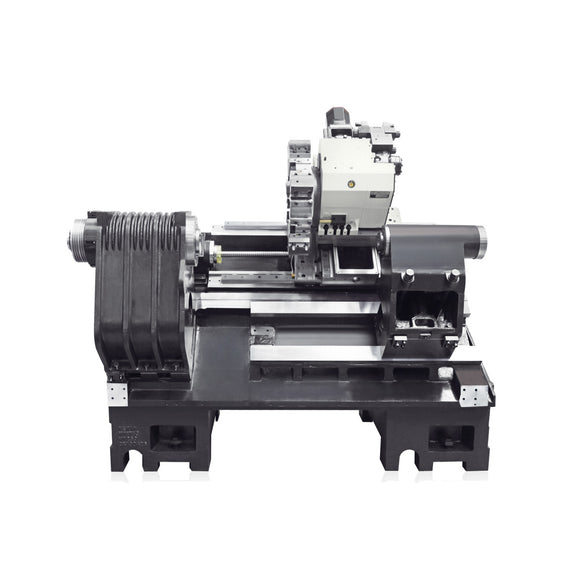

  • The entire bed design has many reinforcing ribs optimized by finite element analysis, ensuring high rigidity, better heat dissipation (thermal symmetry) and more accurate machining

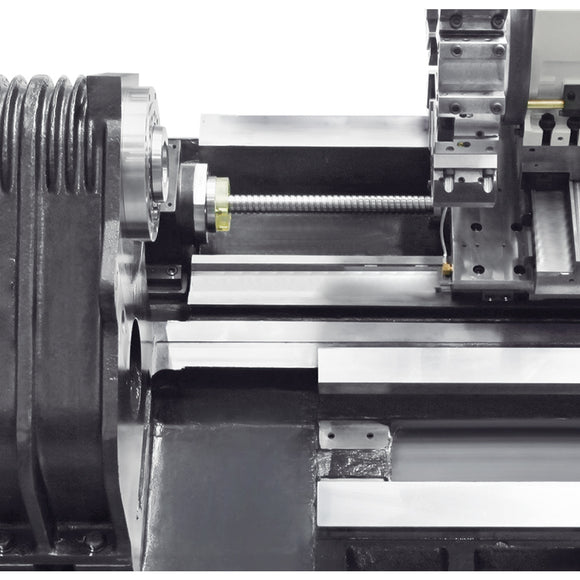

  • Ball screw with improved accuracy, rigidity and heat resistance. Siemens servo motors in all axes
  • All servo motors with integrated encoder for maximum accuracy
  • The motor is located on the side of the machine and prevents heat transfer and vibrations caused by the motor
  • .
  • 30 – 3500 min¯¹

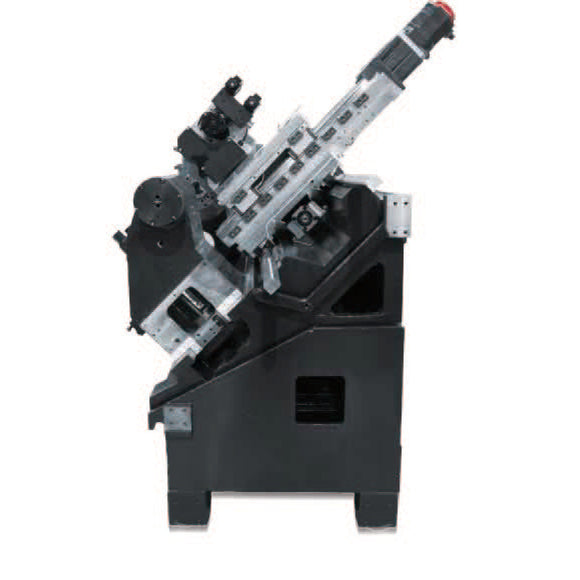

  • Angled bed 30 °
  • Chuck passage (option ex works) 90 mm
  • Chuck passage diameter 74 mm
  • Cooling lubricant system coolant pump output 0.7 kW
  • Cooling lubricant system operating pressure 1.8 bar
  • Cooling lubricant system tank capacity 320 l
  • Feed force X-axis 8.4 kN
  • Feed force Z-axis 6.7 kN
  • Frequency 50 Hz
  • Height 1840 mm

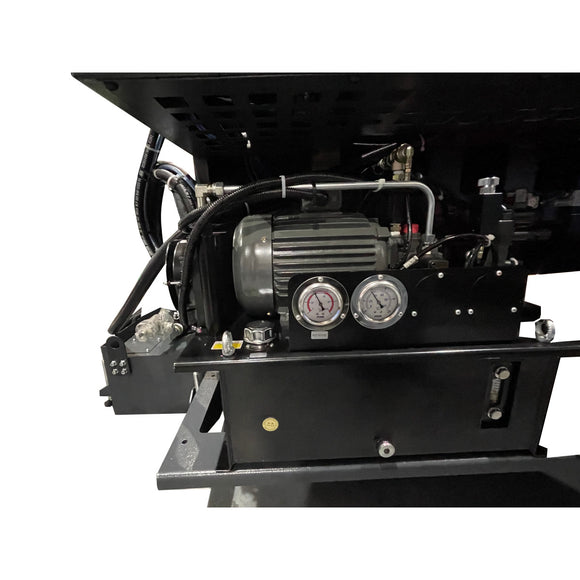

  • Hydraulic system motor output 2.2 kW
  • Hydraulic system tank capacity 36 l
  • Lathe chuck diameter 500 mm
  • Length 5040 mm
  • Main spindle bore 86 mm
  • Net weight 4600 kg
  • Spindle bore (option ex works) 103 mm
  • Spindle chuck A2-8
  • Spindle hydraulic lathe chuck 250 mm
  • Spindle speed (option ex works) 30 – 3000 min¯¹
  • Supply voltage 400 V
  • Swing diameter above machine bed 660 mm
  • Swing diameter above planing slide 480 mm

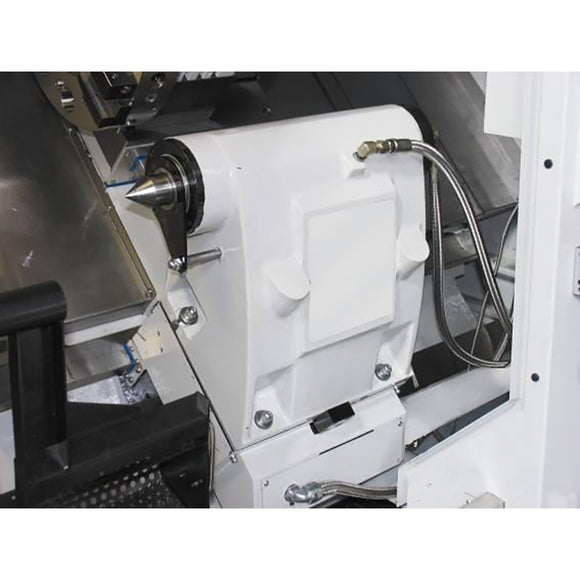

  • Tailstock chuck MT 5
  • Tailstock quill diameter 100 mm
  • Tailstock quill stroke 100 mm
  • Tool changer drive motor output 4.8 kW
  • Tool changer max. permissible speed at tool coupling 4000 min¯¹
  • Tool changer max. tool torque 20 Nm

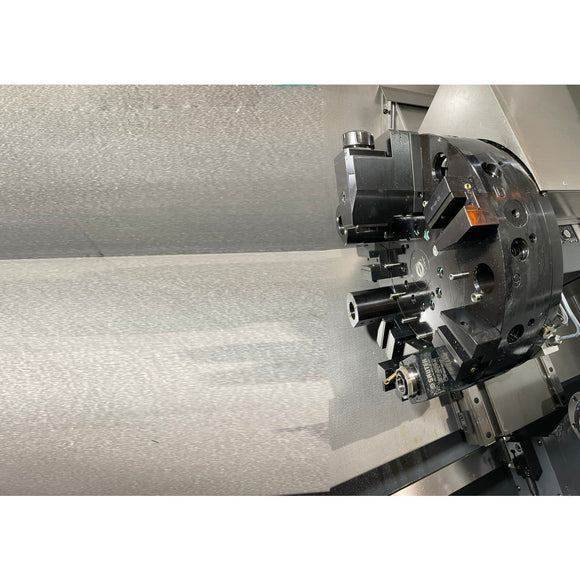

  • Tool changer number of tool slots 12
  • Tool changer type Sauter VDI 40
  • Total rated value 35 kVA
  • Travel X axis 280 mm
  • Travel Z axis 1280 mm
  • Turning length 1250 mm
  • Vertical spindle drive motor output continuous operation S1 15 kW
  • Vertical spindle drive motor torque 268 Nm
  • Width 1880 mm
  • X axis motor torque 12 Nm
  • Z axis motor torque 12 Nm
  • Axial tool holder driven tools
  • Radial tool holder driven tools
  • Boring bar holder
  • OD tool holder
  • End face tool holder
  • Boring bar Ø 20mm
  • Boring bar Ø 25mm
  • Boring bar Ø 32 mm
