Miter metal band saw MBS 125

€810,57 EUR

Tax includedShipping calculated at checkout

SKU: 3630125 Barcode: 4036351036562

14 Day
Return Policy
Warranty
12 months
Fast
Delivery

In stock!

Contact us about this product

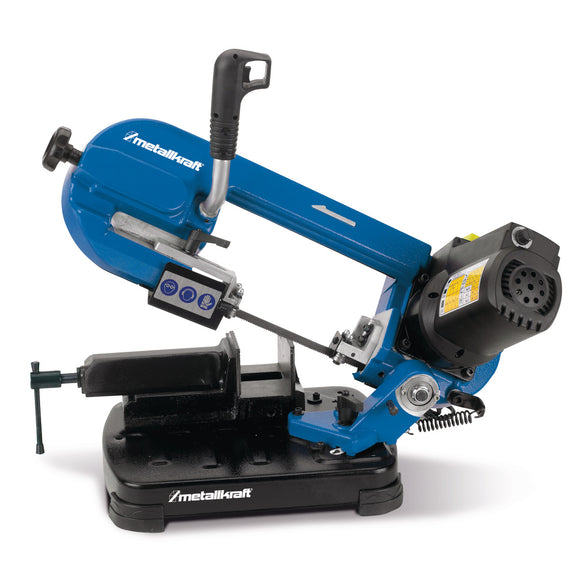

The MBS 125 is a miter band saw for cutting steel, aluminium, copper, PVC and Teflon. Its stepless speed control, low-noise drive and precision-tested build let one machine handle mixed materials quietly and accurately, so you avoid noisy cutting, off-square parts and reworking after the cut.

Key features

  • Stepless electronic speed control from 30 to 80 m/min, so you can match the blade speed to each material
  • Up to 60% quieter than comparable band saws, for a more comfortable workshop

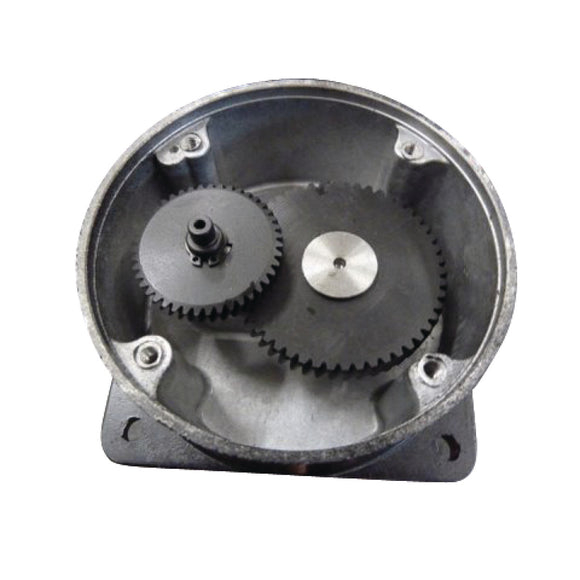

  • Special gearbox with two large hardened-steel gears, which keeps vibration and wear low
  • Cutting accuracy within 0.3 mm over a 100 mm cut length

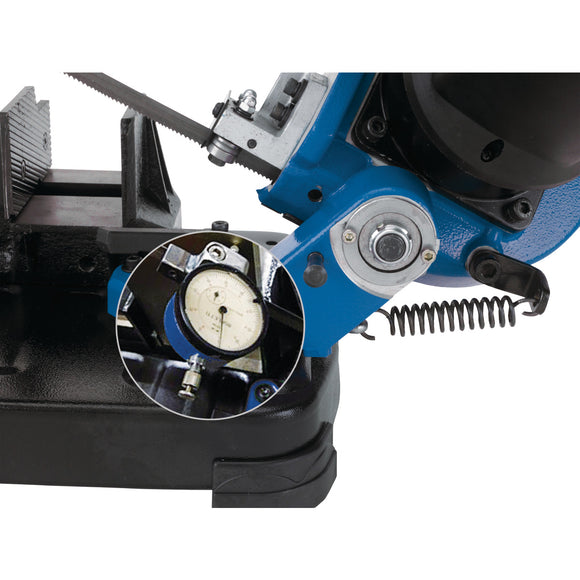

  • Every machine is individually tested for precision in Italy

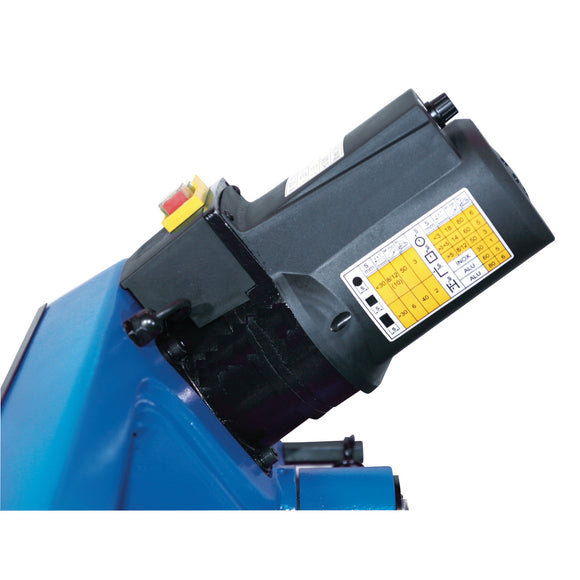

  • Low-speed DC motor with carbon brushes, rated for up to 10 times longer motor life
  • Electronic temperature and current monitoring that protects the motor from overload

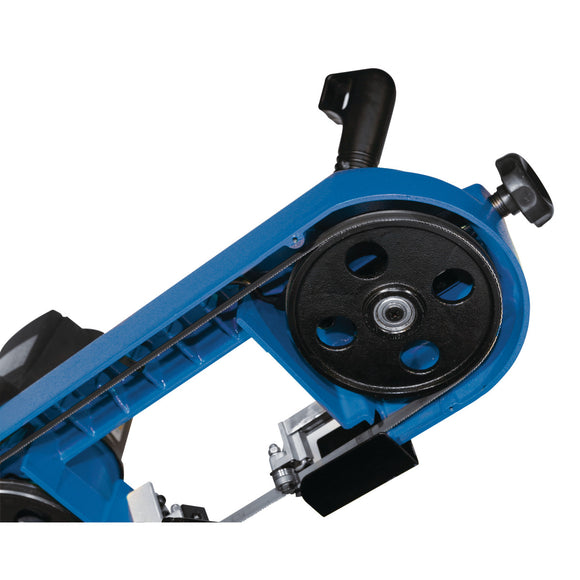

  • Cast band wheels with a ground running surface and no rubber pads, suitable for both dry and wet cutting
  • Solid die-cast aluminium saw frame with a sturdy transport lock

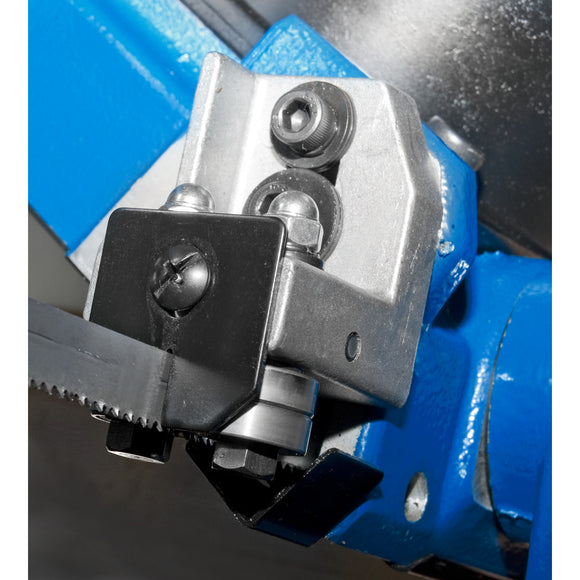

  • Two adjustable, movable blade guides with metal chip scrapers
  • Stable base plate with non-slip feet
  • Easy to service, with all components easily accessible

Technical specifications

Maximum cutting capacity at 0°

  • Round, solid material: 87.5 mm
  • Round, tube: 125 mm
  • Rectangular, hollow profile (lying): 125 × 120 mm
  • Rectangular, hollow profile (upright): 120 × 125 mm

Maximum cutting capacity at 45°

  • Round, solid material: 56 mm
  • Round, tube: 80 mm
  • Rectangular, hollow profile (lying): 70 × 110 mm
  • Rectangular, hollow profile (upright): 70 × 110 mm

Maximum cutting capacity at 60°

  • Round, solid material: 31.5 mm
  • Round, tube: 45 mm
  • Rectangular, hollow profile (lying): 40 × 70 mm
  • Rectangular, hollow profile (upright): 40 × 70 mm

Drive and electrical

  • Supply voltage: 230 V, 50 Hz
  • Absorbed power: 1.01 kW
  • Output power: 0.91 kW
  • Total current consumption: 4.3 A
  • Efficiency: 91 %
  • Motor efficiency class: IE2
  • Duty cycle: 60 %
  • Nominal operating mode of drive motor: S6
  • Protection class: 1
  • Drive motor protection class: IP30

Saw band

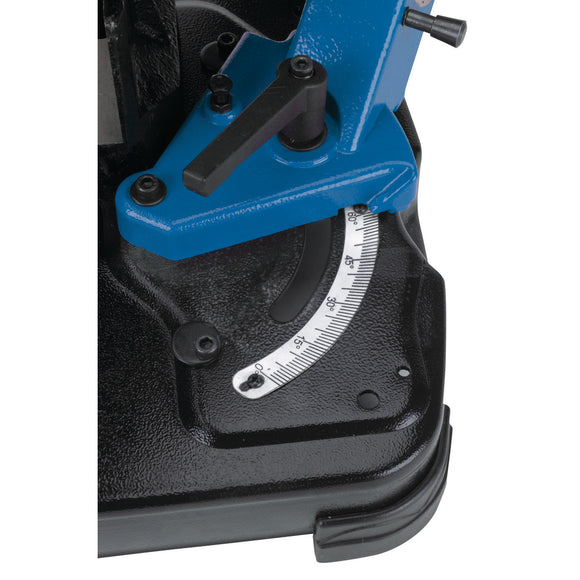

  • Cutting angle: 0° to 60°
  • Saw band speed: 30 - 80 m/min
  • Saw band dimensions: 1440 × 13 × 0.65 mm

Dimensions, weight and noise

  • Length: 700 mm
  • Width: 350 mm
  • Height: 410 mm
  • Maximum height: 660 mm
  • Maximum width/depth: approx. 700 mm
  • Net weight: 23.5 kg
  • Sound power level (DIN EN ISO 3744): 61.6 dB(A)
  • Sound power level (DIN EN ISO 3746): 63.5 dB(A)
  • material stop

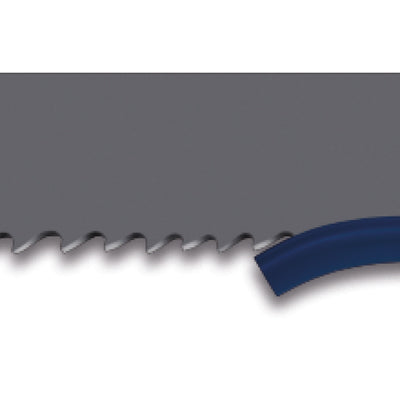

  • Bi-metal saw band 1440 x 13 x 0.65 mm M42 Z6-10
