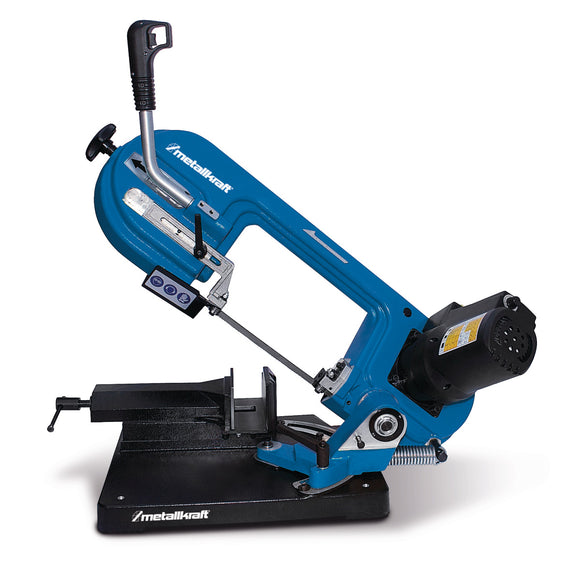

Miter metal band saw MBS 150

• Absorbed power 2 kW

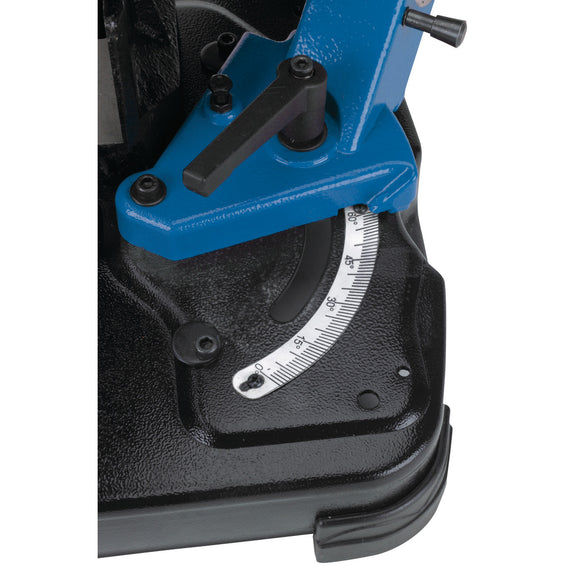

• Cutting angle from to 0 - 60 °
• Cutting range +45° rectangular horiz. (hollow profile) 120 x 90 mm
• Cutting range +45° rectangular upright (hollow profile) 90 x 130 mm
• Cutting range +45° round (full material) 70 mm
• Cutting range +45° round (tube) 100 mm
• Cutting range +60° rectangular horiz. (hollow profile) 55 x 70 mm
• Cutting range +60° rectangular upright (hollow profile) 55 x 70 mm
• Cutting range +60° round (solid material) 38,5 mm
• Cutting range +60° round (tube) 55 mm
• Cutting range 0° rectangular lying (hollow profile) 140 x 150 mm
• Cutting range 0° rectangular upright (hollow profile) 150 x 130 mm
• Cutting range 0° round (solid material) 105 mm
• Cutting range 0° round (tube) 150 mm
• Duty cycle 60 %
• Efficiency 90 %
• Engine efficiency class IE2
• Frequency 50 Hz
• Height 465 mm
• Height max. 870 mm
• Length 420 mm
• Length max. 420 mm
• Max. width/depth approx.. 875 mm
• Net weight 35 kg
• Nominal operating mode drive motor S6
• Output power 1,8 kW
• Protection class 1
• Protection class drive motor IP30
• Saw band length 1735 mm
• Saw band speed(s) 30 – 80 m/min
• Saw band thickness 0,9 mm
• Saw band width 13 mm
• Sound power level DIN EN ISO 3744 67,5 dB (A)
• Sound power level DIN EN ISO 3746 69,8 dB (A)
• Supply voltage 230 V
• Total current consumption 8,5 A
• Width 875 mm

• material stop
• Bi-metal saw band 1735x13x0,9mm M42 Z6-10
