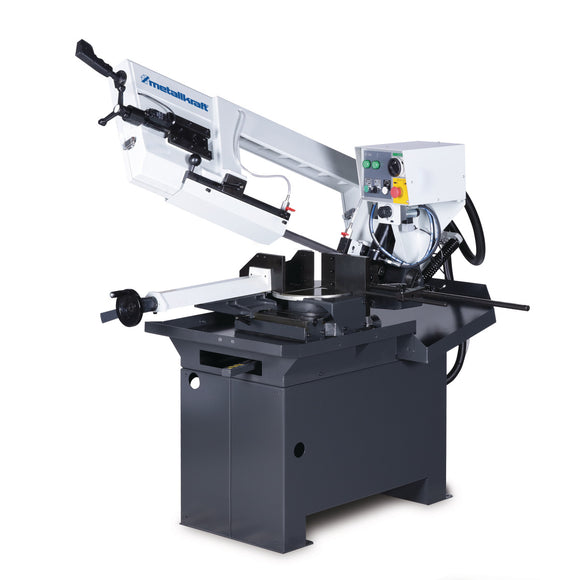

The Metallkraft BMBS 260 x 280 H-DG is a hydraulic swing frame band saw for cutting hollow sections and solid stock in steel, stainless steel, tool steel, non-ferrous metals and plastics. Its front-adjustable mitre, carbide-guided blade and automatic stop give accurate, repeatable cuts, while the angled saw arm, integrated blade cooling and tension monitoring extend blade life and cut down on downtime and rework.
Key features
- Mitre adjustment from -45° to +60°, set from the front for easy handling, especially with a roller conveyor attached
- Robust band guides with adjustable carbide plates for a precise cut
- Saw blade guides with integrated cooling system
- Electromechanical monitoring of saw blade tension via a microswitch
- Chip clearing brush for cleaning and maintenance of the saw blade
- Lowering cylinder locks automatically in the upper position when the saw arm is raised, with no extra locking needed
- Saw arm tilted by 25° to extend saw blade life
- Saw blade stops automatically at the end of the cut
- Saw arm lowers by gravity
- Turntable with pivoting cutting gap, which prevents the blade from cutting into the saw table
- Ergonomic operating concept
- Vice with quick clamping device
