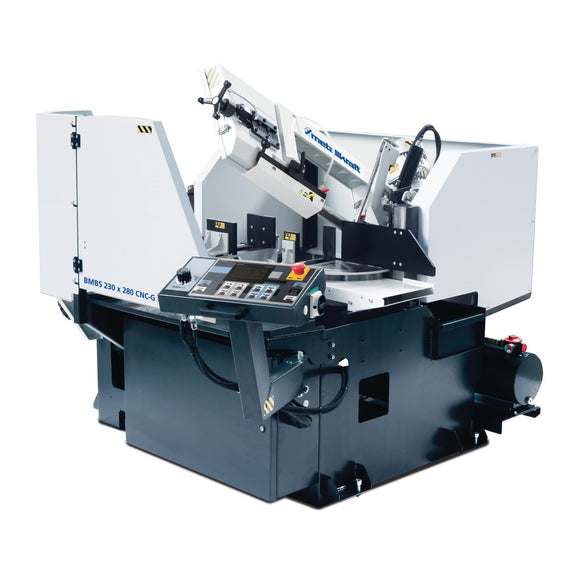

Fully automatic swing frame metal band saw BMBS 230 x 280 CNC-G

• Absorbed power 3,84 kW
• Belt feed monitoring ✔
• Belt tension monitoring ✔
• Chip clearing brush ✔
• Coolant pump ✔
• Cut-off length min. 3 mm
• Cutting angle from to 0 - 60 °
• Cutting probe ✔
• Cutting range 0° bundle rectangular standing (hollow profile) 280 x 120 mm
• Cutting range 0° rectangular lying (hollow profile) 280 x 200 mm
• Cutting range 0° round (solid material) 230 mm
• Cutting range 0° round (tube) 230 mm
• Efficiency 90 %
• Engine efficiency class IE2
• Engine power coolant pump 0,09 kW
• Engine power hydraulic pump 0,85 kW
• Frequency 50 Hz
• Height 1780 mm
• Length 2305 mm
• Material diameter min. 40 mm
• Material feed max. 500 mm
• Material feed min. 3 mm
• Material feed rate 2 m/min
• Min. remaining workpiece length automatic 140 mm
• Motor power 1.5 kW
• Net weight 780 kg
• Nominal operating mode drive motor S3
• Output power 5,5 kW
• Protection class 1
• Protection class drive motor IP55
• Saw band length 2720 mm
• Saw band speed(s) 20 – 100 m/min
• Saw band thickness 0,9 mm
• Saw band width 27 mm
• Sound power level DIN EN ISO 3744 65 dB (A)
• Sound power level DIN EN ISO 3746 67 dB (A)
• Supply voltage 400 V
• Table height material feed 800 mm
• Total current consumption 7,9 A
• Width 2260 mm

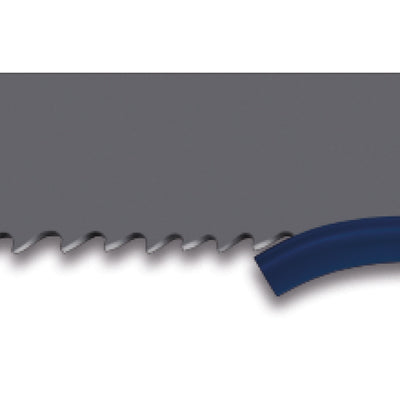

• Saw band
• Operating tool
• Coolant pump
