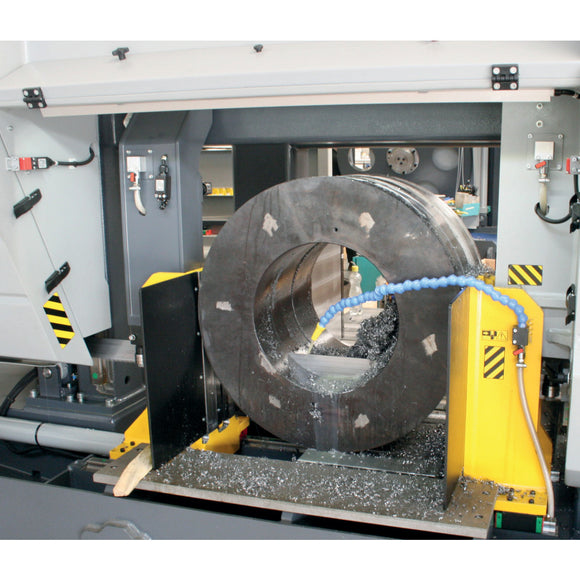

Automatic two-column horizontal metal band saw HMBS 700 x 750 CNC X

• Cut-off length min. 40 mm
• Cutting range 0° bundle (tube) 750 x 460 mm
• Cutting range 0° rectangular lying (hollow profile) 750 x 700 mm
• Cutting range 0° round (solid material) 700 mm
• Cutting range 0° round (tube) 700 mm
• Frequency 50 Hz

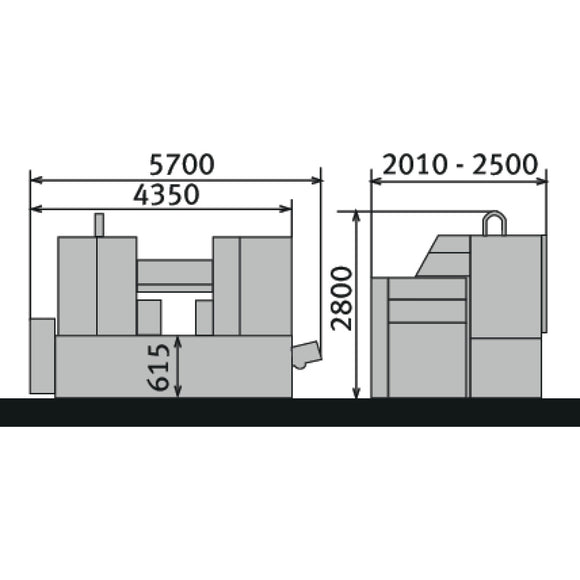

• Height 2800 mm
• Length 5700 mm
• Material diameter min. 60 mm
• Material feed max. at 1 x feed rate 700 mm
• Min. remaining workpiece length automatic 155 mm
• Min. residual workpiece length 40 mm
• Motor power 11 kW
• Net weight 12500 kg
• Saw band length 7680 mm
• Saw band speed(s) 15 – 80 m/min
• Saw band thickness 1,6 mm
• Saw band width 67 mm
• Supply voltage 400 V
• Table height material feed 620 mm
• Width 2500 mm

• bandsaw
• operating tool
• Workplace lighting
• Auto tape guide adjustment
• Motorized chip removal brush
• frequency converter

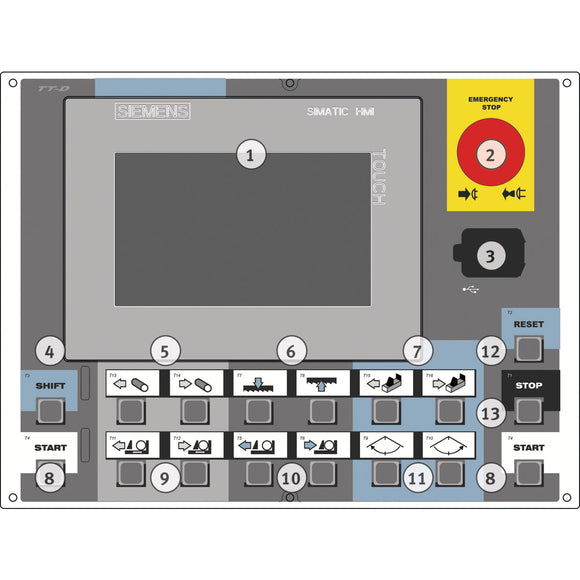

• Pivoting control panel
• Coolant pump
• Hydraulic band tensioning device
