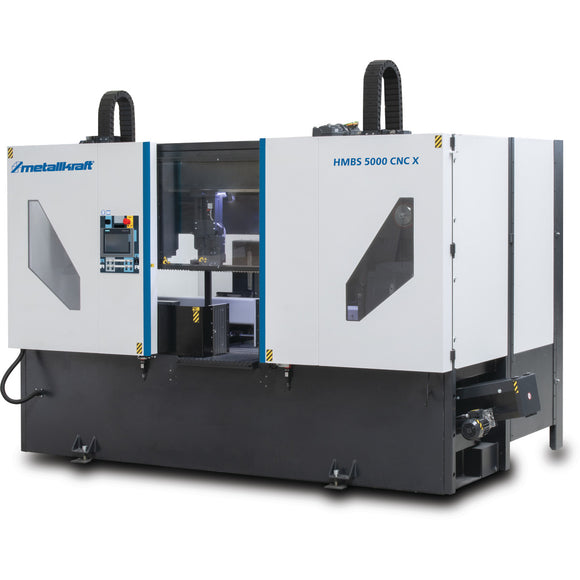

Fully automatic two-column horizontal metal band saw HMBS 5000 CNC X

• Absorbed power 20,4 kW
• Cut-off length min. 10 mm
• Cutting angle 0,5 °
• Cutting range 0° bundle (tube) 620 x 350 mm
• Cutting range 0° rectangular horizontal vertical section 620 x 550 mm
• Cutting range 0° round (solid material) 550 mm
• Cutting range 0° round (tube) 550 mm
• Cutting range 0° square (solid material) 550 mm
• Engine power coolant pump 0,16 kW
• Engine power hydraulic pump 0,6 kW
• Frequency 50 Hz
• Height 2550 mm
• Height max. 2900 mm
• Length 3980 mm
• Length max. 3980 mm
• Lifting the saw bow 570 mm
• Material diameter min. 75 mm
• Material feed max. 9999 mm
• Material feed max. at 1 x feed rate 750 mm
• Material feed min. 3 mm
• Material feed rate 3.75 m/min
• Max. width/depth approx.. 2300 mm
• Min. remaining workpiece length automatic 35 mm
• Min. residual workpiece length 30 mm
• Motor power 15 kW
• Net weight 7735 kg
• Nominal operating mode drive motor S1
• Protection class drive motor IP 55
• Saw band length 7680 mm
• Saw band speed(s) 15 – 150 m/min
• Saw band thickness 1,6 mm
• Saw band width 54 mm
• Supply voltage 400 V
• Table height material feed 800 mm
• Total connected load 23,6 kW
• Total current consumption 34 A
• Width 2300 mm
